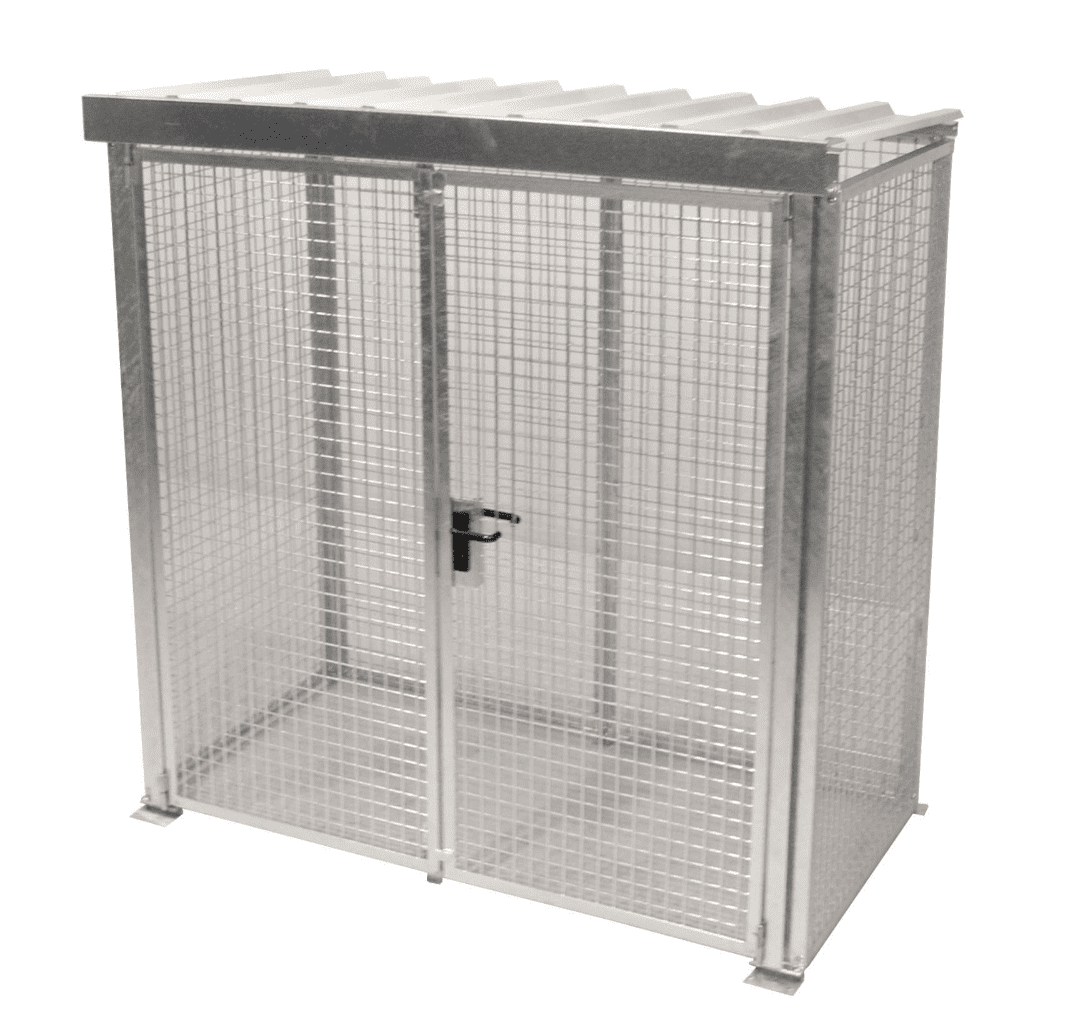

Gas Cylinder Cage with roof, providing secure and safe storage for 32 gas cylinders Ø 220 mm. Completely hot-dip galvanized, ideal for either internal or external use. Approved for gas cylinder storage in accordance with European Standards TRGS 510. Doors fitted with cylinder locks for extra security. Ground anchor points, with fixing holes, enable easy ground anchorage.

Doors

• Choice of single or double doors
• Hinged double doors, allow easy access when using gas cylinder pallets

Specifications

• Dimensions: 2100L x 1085W x 2180H (mm)
• Sturdy frame: 35 x 35 x 4 (mm)
• Mesh grid: 50 x 50 x 4.8 (mm) (welded)
• Wire: 4.8 (mm)
• Weight: 201 kg
• Hot dip galvanized finish
• Roof: Coated structured steel
• Snow load capacity: approx.75 kg/m²
• Supplied: Kit form with assembly instructions
• Ground anchor points
• Construction according to TRGS 510

Storage Capacity

• 3 rows of 6 gas cylinders (11 or 33 kg)
• or 4 rows of 8 gas cylinders (50 kg)

Accessories available:

• Galvanized grid floor
• Support arm, with securing chain, for safe storage of standing gas cylinders
• Galvanized rack, for space saving storage of gas cylinders up to 11 kg

Delivery

• Availability 6-7 weeks
• FREE UK mainland delivery (excluding Highlands & Islands)
