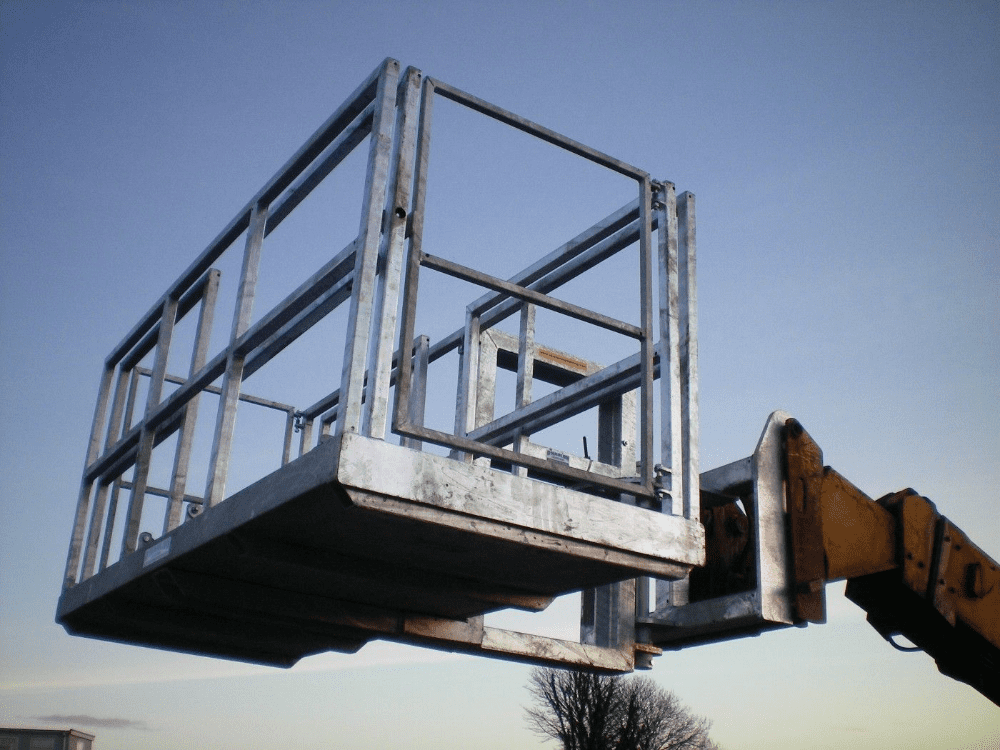

Telehandler Access Platform, Featuring 180 degree swivel boom with 23 locking positions, enabling platform to be positioned combining long reach with a sturdy work platform. Supplied complete with front loader brackets, manufactured to suit most makes of Telehandler.Man-lift baskets are ideal for a multitude of tasks including, aerial work, fruit harvesting, maintenance and inspection operations. Personnel Access Platforms are sometimes referred to as, Agri-Safety Baskets, Safety Man Baskets or Man-Riding Baskets.Complies with Health & Safety Regulations and requirements PM28 (4th edition)
| Part No |
Width Closed |
Width Extended |
SWL |
Weight |
| TPB 3000 |
3.0M |
5.4M |
750 kg |
800 kg |
Specifications
- 180 degree swivel boom with 23 locking positions
- Pivoting head enables working at 90 degrees to the machine
- 40 x 40 mm Box framework
- Extending sides slide in steel channels
- Spring loaded side entry doors
- Floor area 1200 mm back to front
- 100 mm kick plate all around
- 5 mm checker plate floor
- Safety harness attachment points fitted on request
- Fully Galvanized
Advise which model of Telehandler the unit is to fit.
- Manitou
- JCB Q-Fit
- Matbro (Cone & Pin)
- Quicke Euro (8)
- CAT
- Chilton
- If your brackets are not listed, advise us what you require.
Order & Delivery information
- Dispatch Date - 2-3 working weeks from cleared funds
- Arrival Date - 2 working days from dispatch
- If the arrival date is not convenient, contact us ASAP to re-arrange arrival on a preferred date.
- Please Note: Clear access is required for delivery vehicle.
- Unloading is buyer's responsibility.
Delivered ‘CE’ marked complete with full operating instructions.
FREE UK mainland delivery 2-3 weeks (excluding Highlands & Islands)
