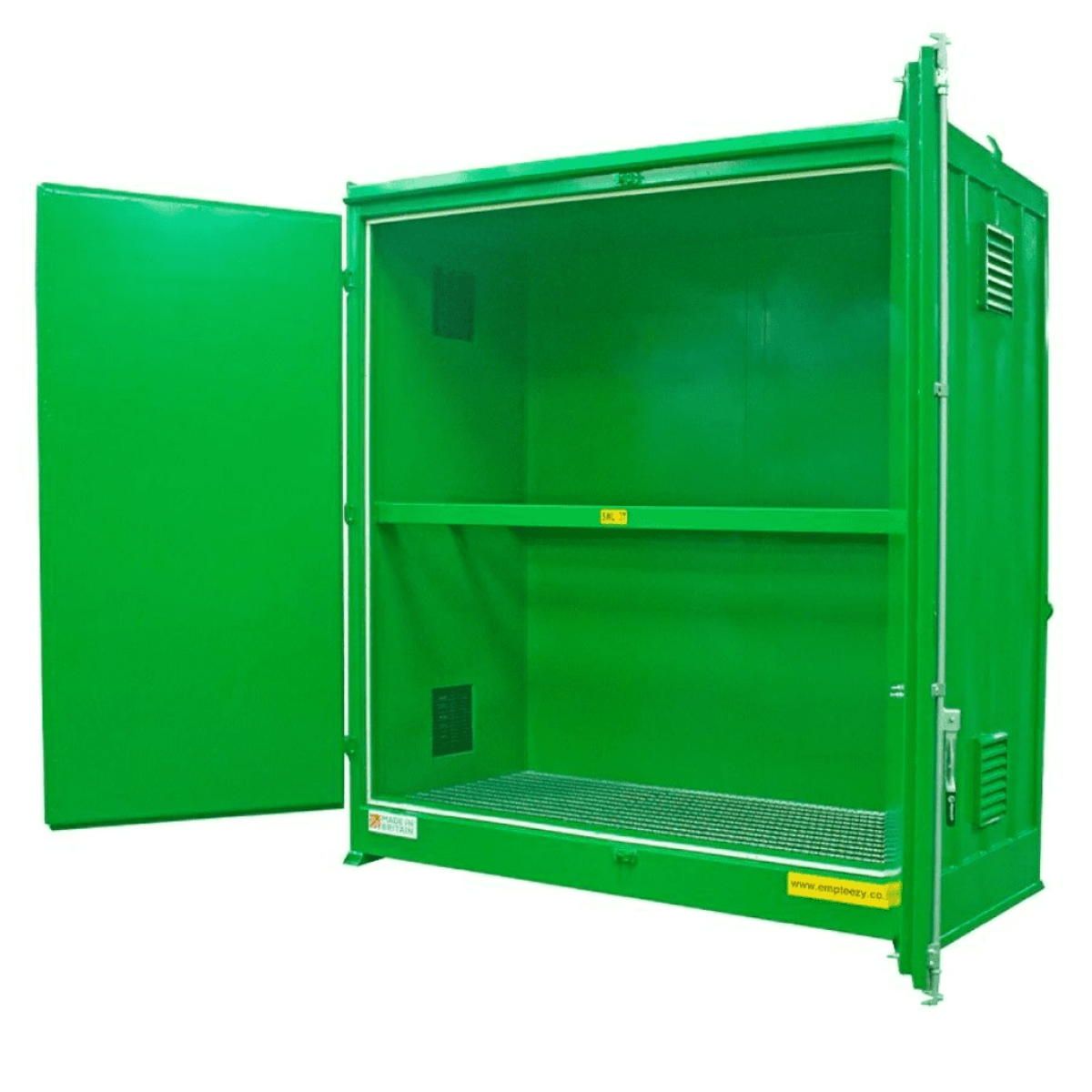

1 Hour Fire Rated Store DPU16-4FR
Information
DPU16-4FR features a rolled hollow welded frame which creates a strong structure for this fire rated drum store. Walls, hinged-doors and roof have been in-filled with Rockwool Firebatt insulation and covered with sheet steel to provide 1 hour fire rating.
Manufactured with a 3 mm, fully seam welded sump, with profiled rib straighteners. Base plinths eliminate contact with the ground. High and low level vents are fitted with intumescent elements, allowing air to circulate. In the event of a fire, elements will expand and seal the vents, this takes place at temperatures above 150°C.
Units are complete with two full sized hinged doors and one central shelf with storage for 16 x 205ltr drums or 4 x 1000ltr IBCs
DPU16-4 FR Specifications
- External Dimensions: 3000L x 1500W x 3295H at the highest point
- Storage Capacity: 16 x 205ltr drums or 4 x 1000ltr IBCs
- Sump capacity: 1125ltr
- Weight: 2250 kg
- Painted Finish: Green RAL 6029
Delivery Options
This unit will be delivered by an HGV, possibly articulated, therefore please ensure that a vehicle of this type can access your premises before ordering and advise us accordingly.
- Delivery flat-bed lorry - customer responsible for offload
- Delivery & offload Hiab lorry
