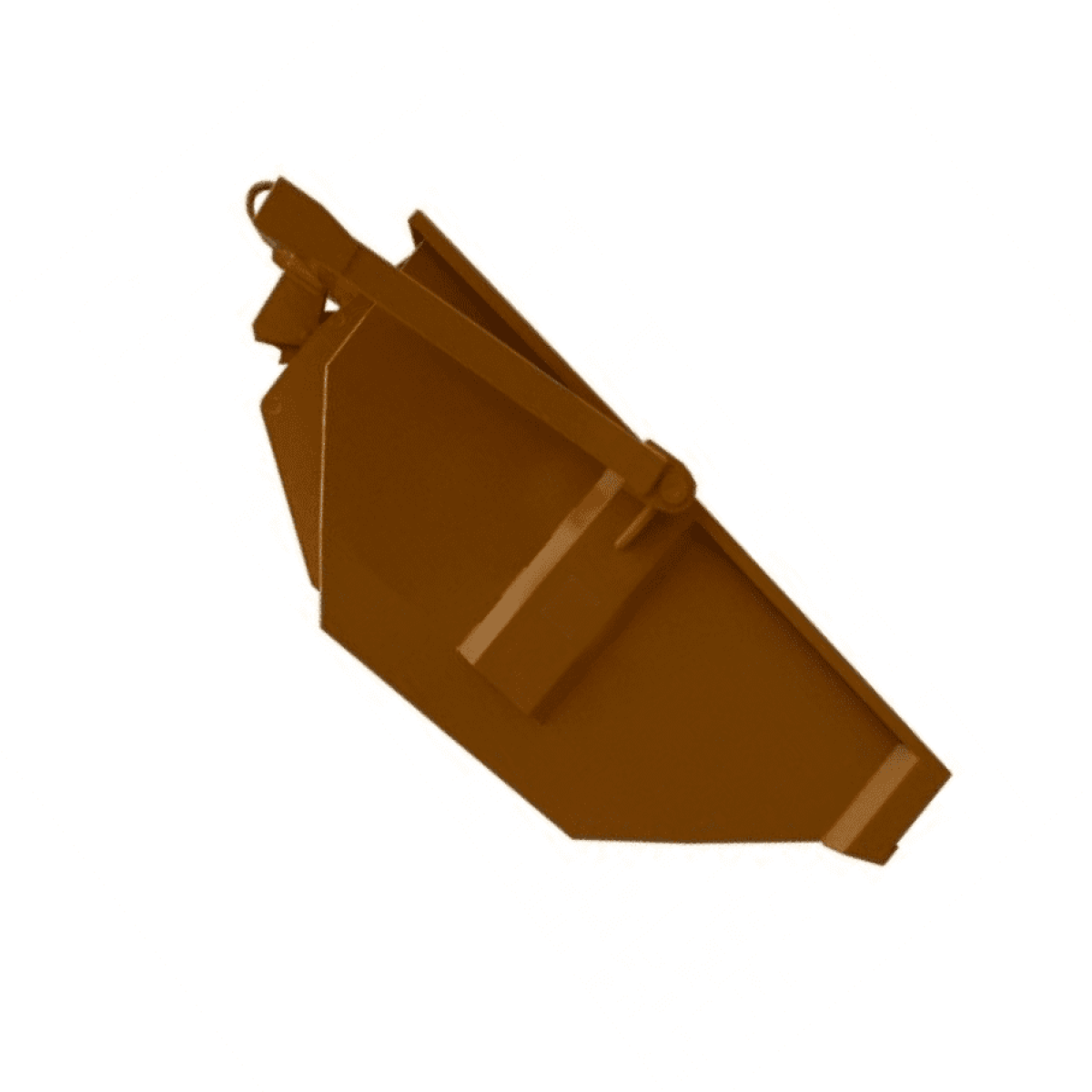

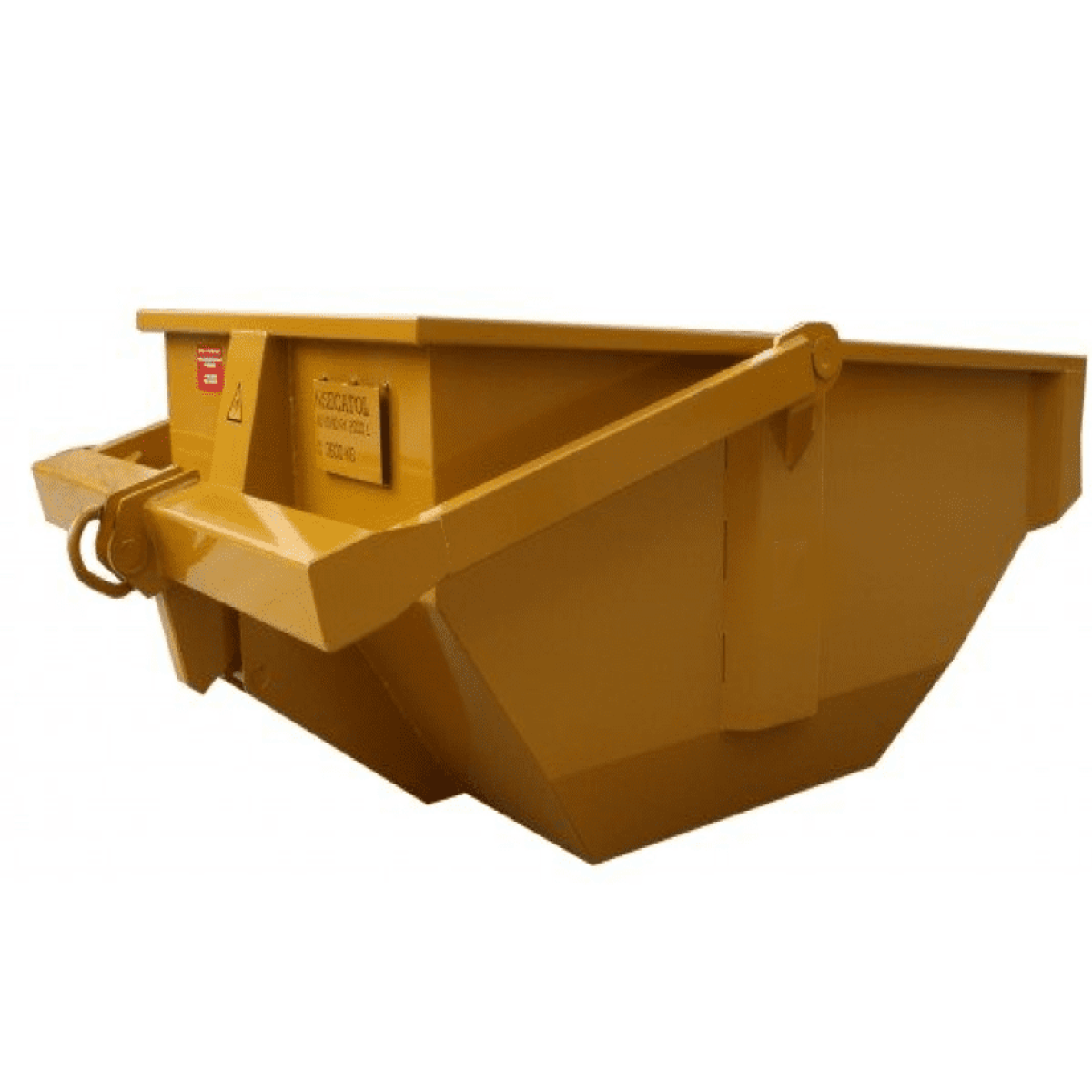

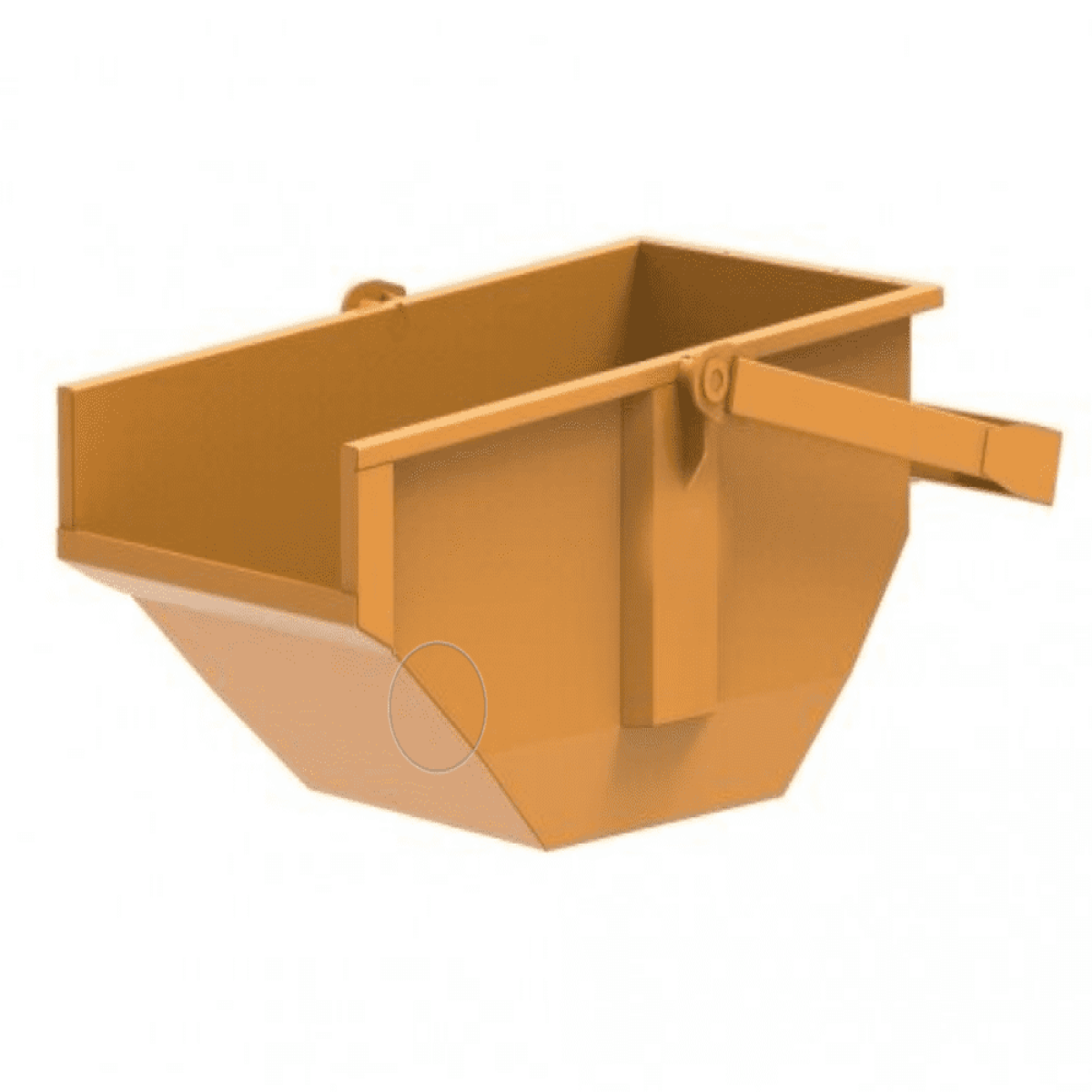

Autovid Boat Skip
Information
Boat skip ideal for transporting materials such as earth, debris, waste and concrete on building sites. Sturdy unit due to shape and core of the bucket. Fitted with an automatic bale arm that allows operator to safely discharge load, without manual intervention. To unload skip, it is placed on the ground and bale arm allowed to tip back until automatic mechanism locks in the rear of skip, which can then be lifted up into vertical position to discharge contents.
| Type | Capacity litres | Dimensions L x W x H (mm) | Overall Height Bale extended (mm) | SWL (kg) | Weight (kg) |
| 13050PA | 570 | 1430 x 1210 x 780 | 1560 | 900 | 132 |
| 13100PA | 1080 | 2180 x 1230 x 1120 | 2200 | 1800 | 265 |
| 13150PA | 1640 | 2410 x 1430 x 1150 | 2370 | 2700 | 350 |
| 13200PA | 2080 | 2410 x 1700 x 1150 | 2370 | 3600 | 400 |
Standard Features
- Automatic bale arm system enables crane operator to work in autonomy when handling and unloading skip
- Low loading height
- No manual intervention required
- Integral locking bale arm once lifted
- Reinforced body
- Painted Finish (Yellow)
PRICE & AVAILABILITY ON REQUEST
