Bulk Bag Filling Combo
Information

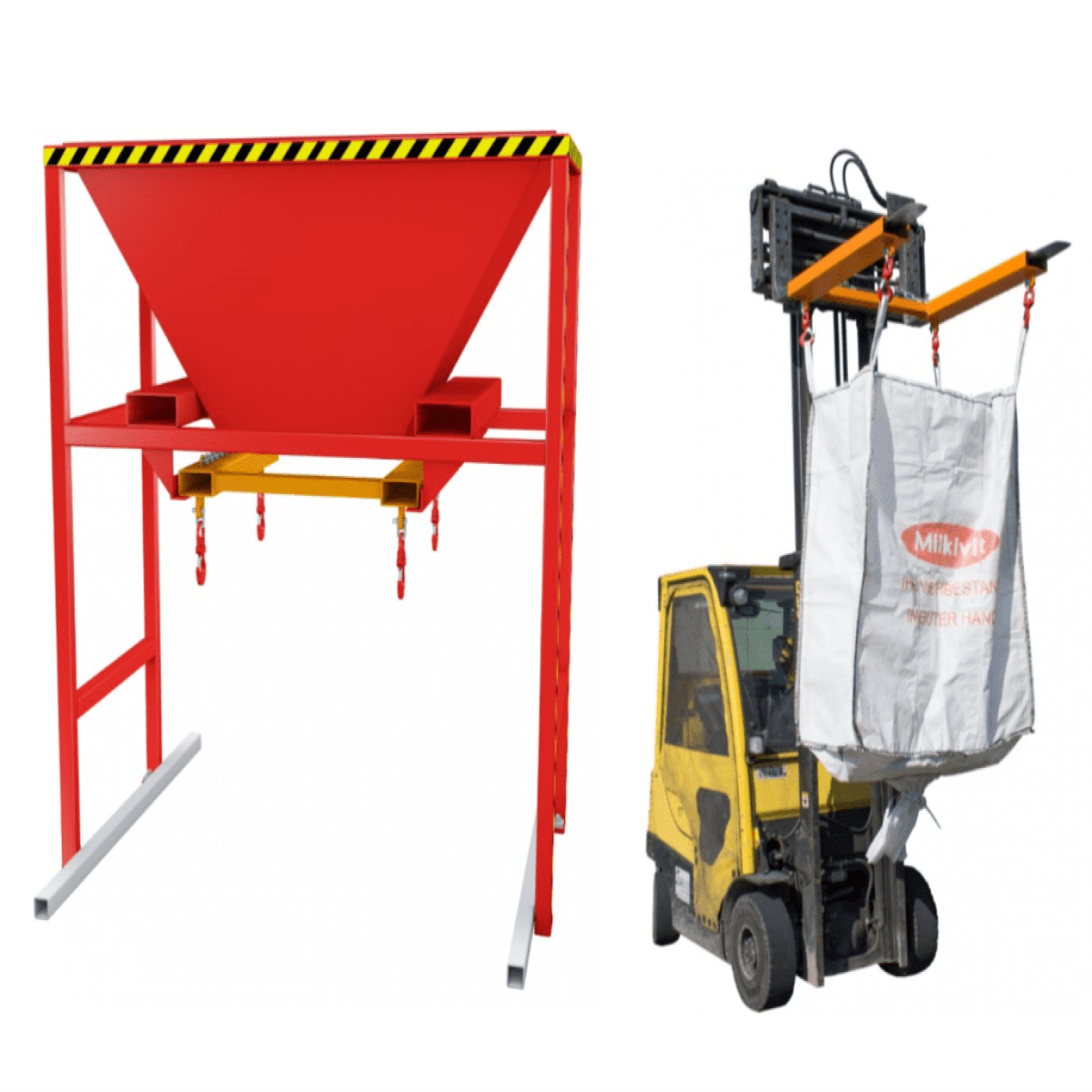

In use, the lifting frame TBB-W is supported on a rack under hopper BTM whilst being filled. Once filled, the lifting frame and bulk bag can be removed together for loading onto vehicles etc. Combo system enables fork truck to leave bulk bag under hopper for filling, and can then be deployed, on other operations, saving time and money.

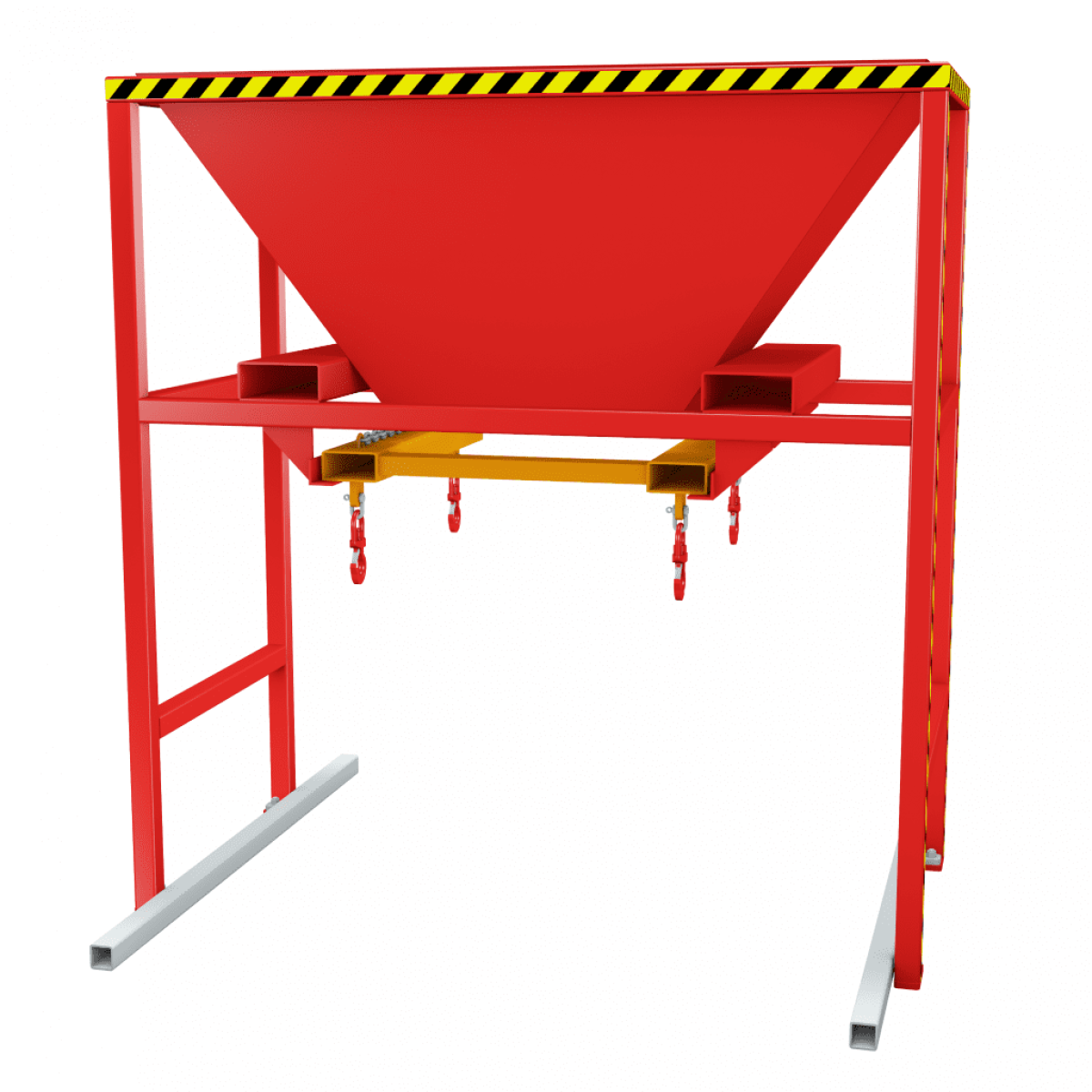

Hopper BTM, designed to make filling of bulk bags and containers quick and easy.
Manufactured with in-built fork sleeves, to allow easy repositioning on-site.
Supplied complete with chain to secure unit and prevent slippage.
BTM Specifications: View full range of Big Bag Filling Hoppers
Dimensions (mm) 1700L x 1980W x 2050H
Hopper opening (top) 850 x 1875
Hopper opening (bottom) 500 x 700
Weight: 341 kg
Fork sleeve dimensions
A - 720 B - 200 C - 80

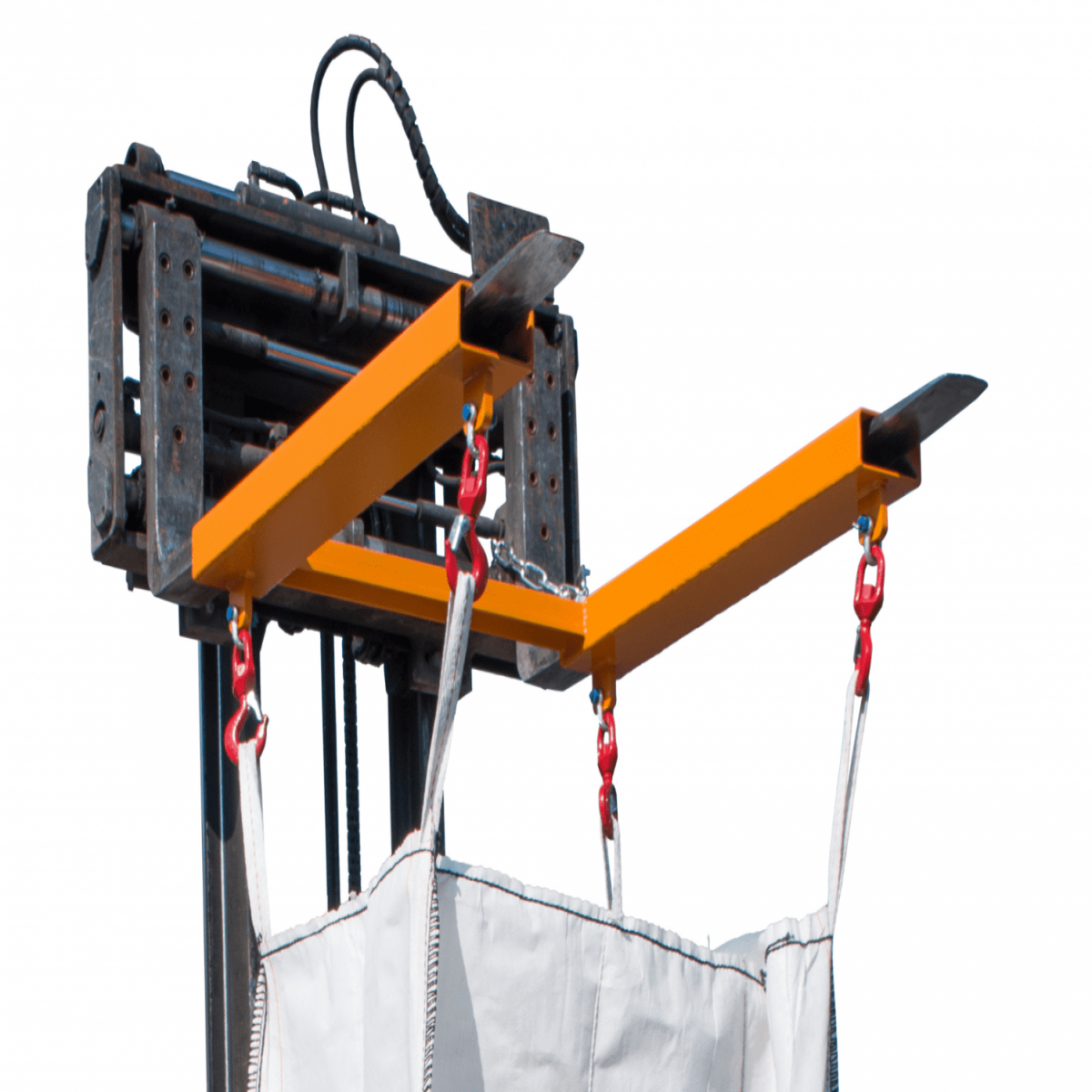

Forklift attachment TBB-W, for safe and easy transportation of filled big bags
Sturdy steel construction, featuring full length fork sleeves
Big bag lifting loops held securely in place with 4 rotating hooks
Supplied complete with chain to secure unit and prevent slippage
TBB-W Specifications:
Dimensions (mm) 900L x 942W x 350H
Load capacity: 1250 kg
Weight: 46 kg
Fork sleeve dimensions
A - 670 B - 130 C - 60
Choice of 5 colours
Manufactured to order allow 4-5 weeks
PRICE & AVAILABILITY ON REQUEST
