CRADLE WHEELIE BIN TIPPER - TYPE KM 1100
From £3,057.00 each ex VAT From £3,668.40 each inc VAT
From £3,057.00 ex VAT From £3,668.40 inc VAT
Information

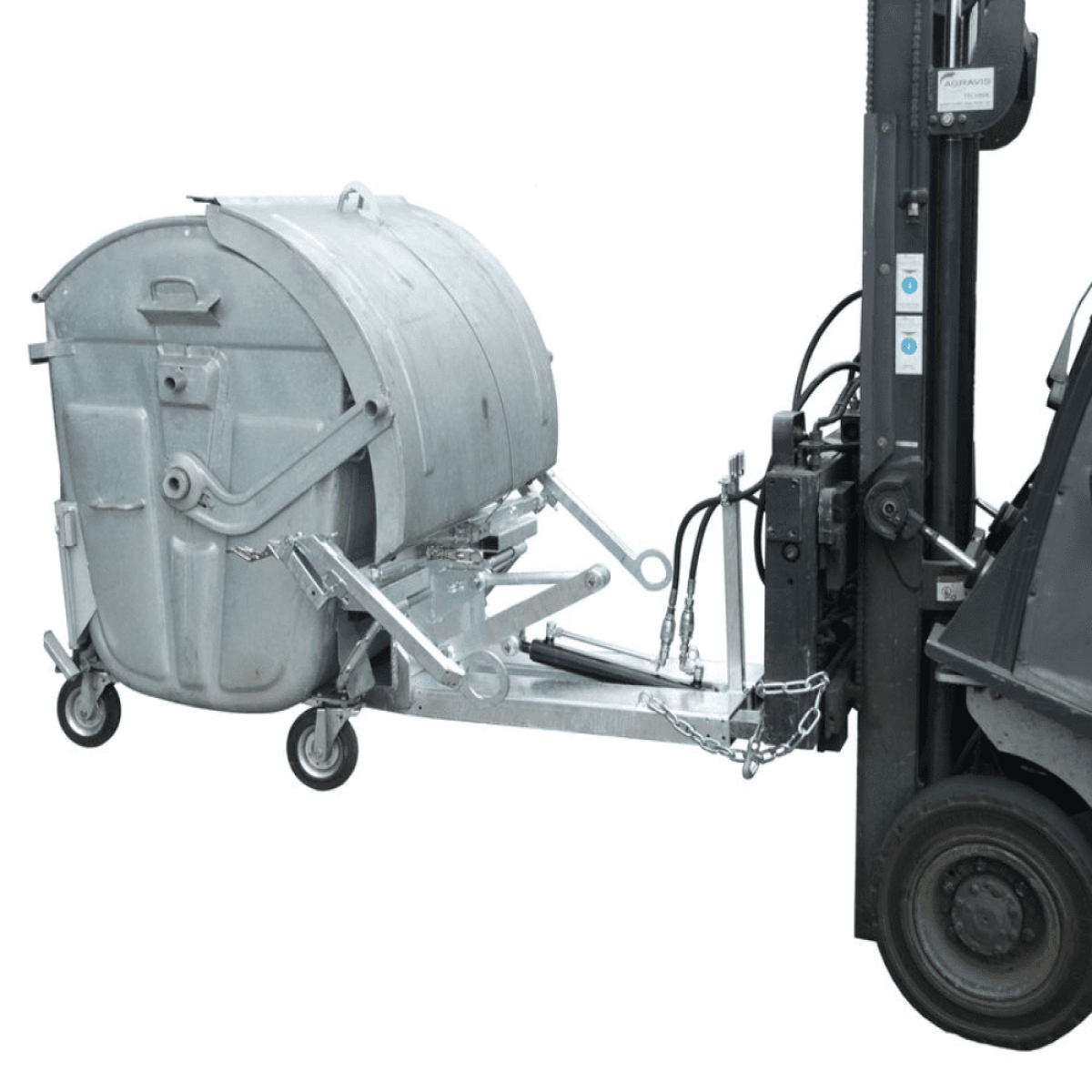

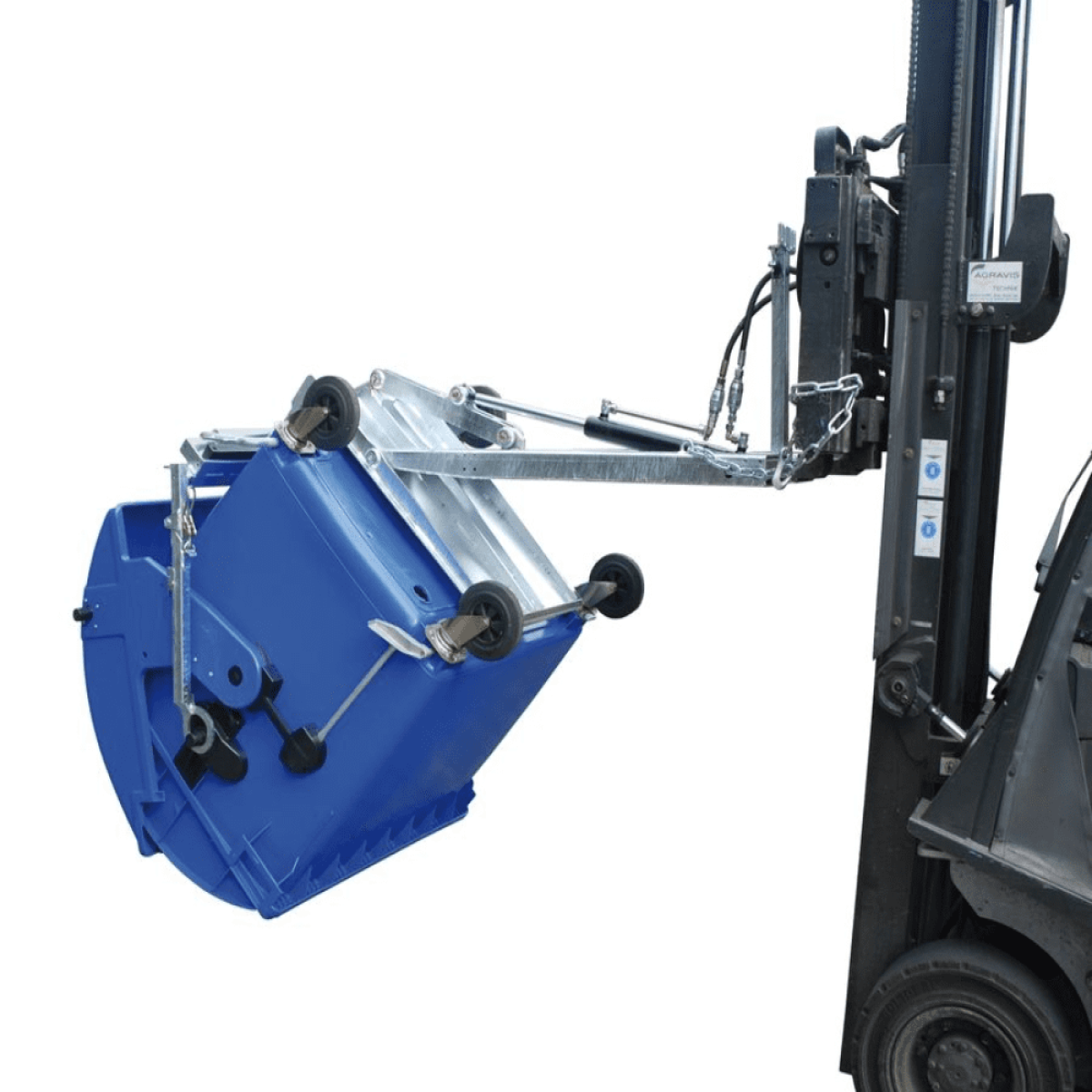

Forklift attachment for transporting, emptying, and cleaning large volume wheelie bins with 4 wheels. Attachment has a sturdy frame with fork sleeves and hydraulic release mechanism, designed to handle large volume wheelie bins manufactured to DIN EN 840-3. A steel cable holds the lid open during emptying which is controlled by the fork-lift hydraulic system; operating pressure min. 130 bars. Bins are held firmly in place during emptying by means of 2 bolts for steel bins and 2 folding arms for plastic bins. A restrictor valve enables smooth regulation of the emptying process. Hot-dip, galvanized unit is delivered complete with a fixture to hook up hydraulic hoses, steel cable and safety chain.
KM specifications.
Dimensions: 1850L x 1390W x 650H (mm)
For large Wheelie Bins (1100 litres with 4 wheels) manufactured to DIN EN 840-3
Hydraulic movement backwards/forwards
Tilting angle: 135 degrees
Supplied with hydraulic cylinder and tubing but WITHOUT couplings
Galvanized
Max. load capacity: 600 kg
Weight: 177 kg
Fork sleeve dimensions for pick up with a fork-lift truck
A = 115 B = 200 c = 60
