Drum Tipper Type - LM
From £3,563.00 each ex VAT From £4,275.60 each inc VAT
Select a type required and then complete the required options to configure your Drum Tipper Type - LM.
From £3,563.00 ex VAT From £4,275.60 inc VAT
Information

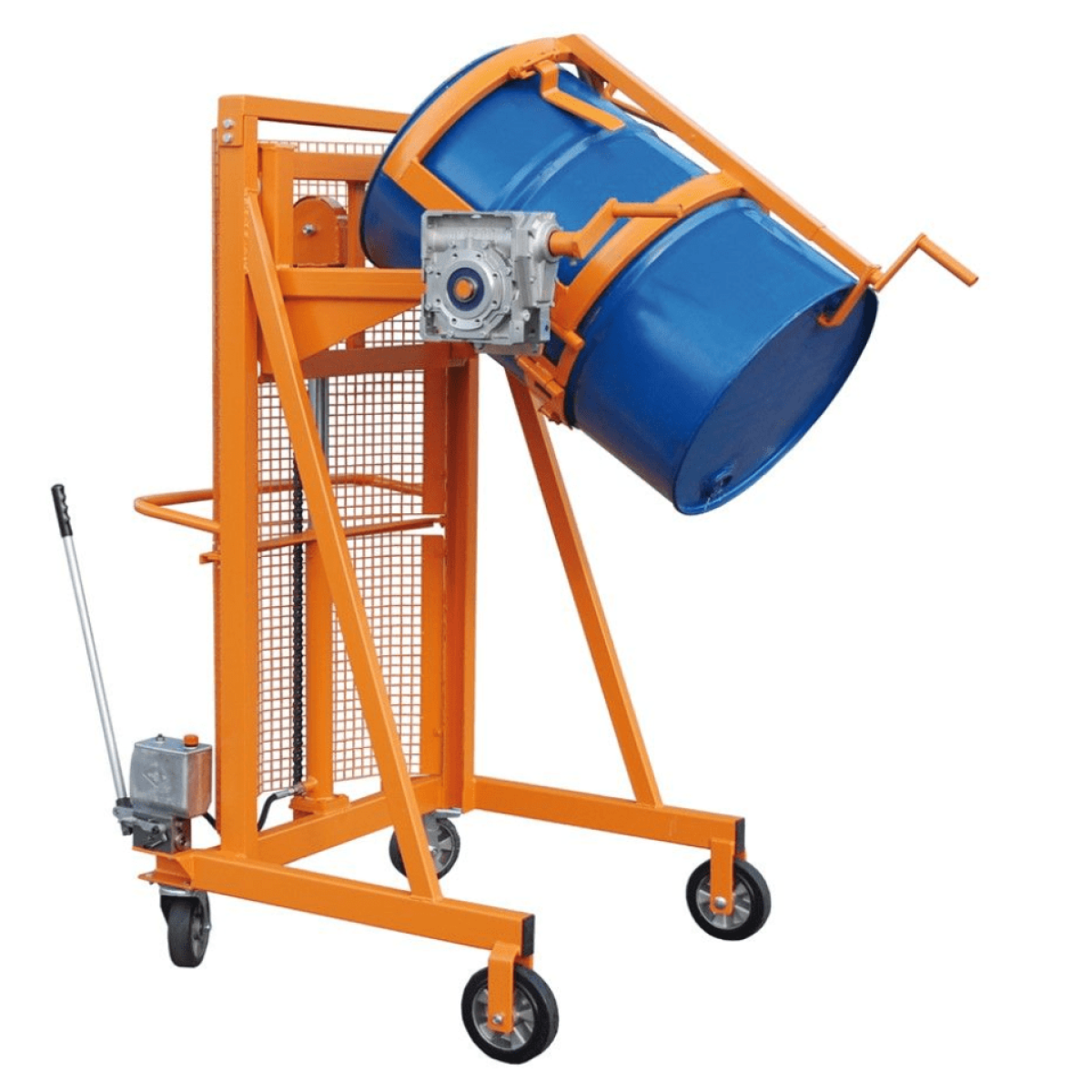

Drum Tipper Type L, for lifting and controlled emptying of 200 litre drums. Manual operated hydraulic pump raises drum to tipping height. Tilting of the drum is controlled via crank handle and self-braking gear box. Drums are held firmly in position with tension band and spindle clamp at the top.
| Type | L x W x H (mm) | Emptying height (mm) | Weight (kg) |
| L/M 600 | 1270 x 1120 x 1230 | 600 | 156 |
| L/M 1300 | 1350 x 1120 x 1915 | 1300 | 192 |
Type L/M manual hydraulic pump
Specifications
- Range of rotation 270°
- Load capacity: 350 kg
- Easy to move with 2 fixed castors ø 175 mm and two swivel castors ø 200 mm made from solid rubber, both swivel castors with brakes.
Suitable for lifting, steel bunghole drums - steel drums with a lid - steel rolling hoop drums - plastic l-ring drums - plastic double l-ring drums - plastic drums with a lid ranging from 110 to 220 litres
Colour choice - Orange or Blue
Individual construction on request
e.g. stainless steel for "ex" zones in compliance with "ATEX 95"
FREE UK mainland delivery (excluding Highlands & Islands)
Manufacturing lead time - approximately 8 working weeks
