DRUM/IBC COMBI STORE - CBS2
Information

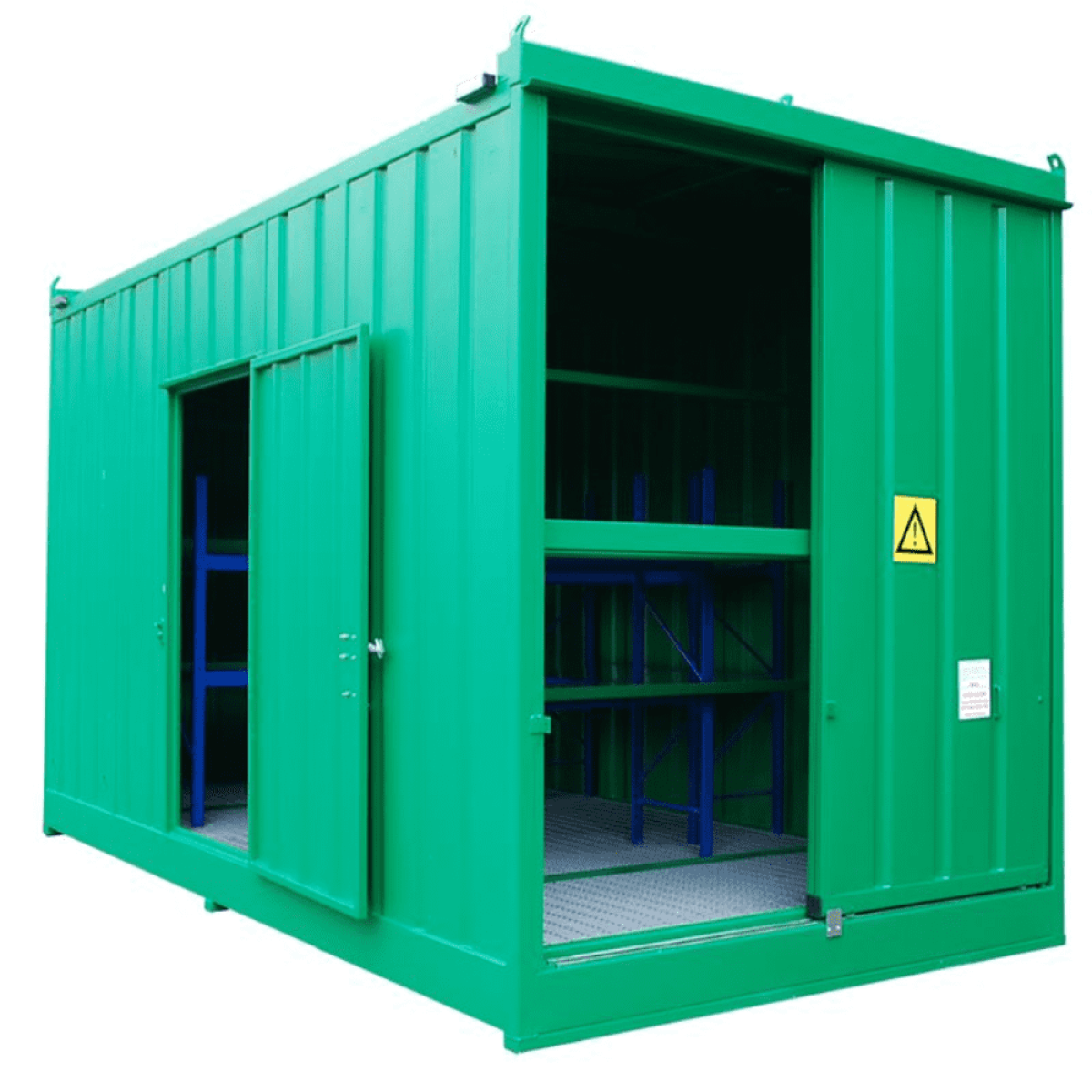

32 Drum Storage Unit with walk-in compartment and storage either end.
Store base is manufactured from 3 mm steel sheet with RHS cross members and pressed ribs.
Corner posts, shelves, main rails and cross members are made from rolled hollow section. Back, sides and door panels are pressed from 2 mm mild steel sheet corrugated as required for additional strength. Roof is pressed and fitted with suitable bracing and fully welded around the perimeter.
Each end of the store is fitted with lockable, sliding doors giving access to shelved areas to accommodate 4 pallets of 205ltr drums.
The walk-in compartment is located in the middle of the unit and is accessed via a hinged door on one side and has shelving for small containers. The internal divide between the walk-in area and the back of the shelved pallet store locations are open framework divides, as a chargeable option we can wall these areas to completely separate the compartments, these can be either simple single skin or fire rated double insulated dividers.
The entire store is protected by a fully seam welded sump covered by a galvanized grid mesh in the walk in area and galvanised support channels in the drum storage areas. The full width base plinths eliminate ground contact, the sloping roof has crane-lifting points and the unit is shot blasted before being painted.
The sump fully complies with all the UK regulations relating to sump capacities.
NOTE: The floor area above the sump in the drum store areas are covered with galvanised steel channel sections so that loose drums or pallets can be stored directly on to them, while the upper shelf is an open, box section construction designed to support pallets. Grid mesh shelving is available for the upper shelf as a chargeable option for those who wish to have it fitted with a full floor. Please contact us for further information.

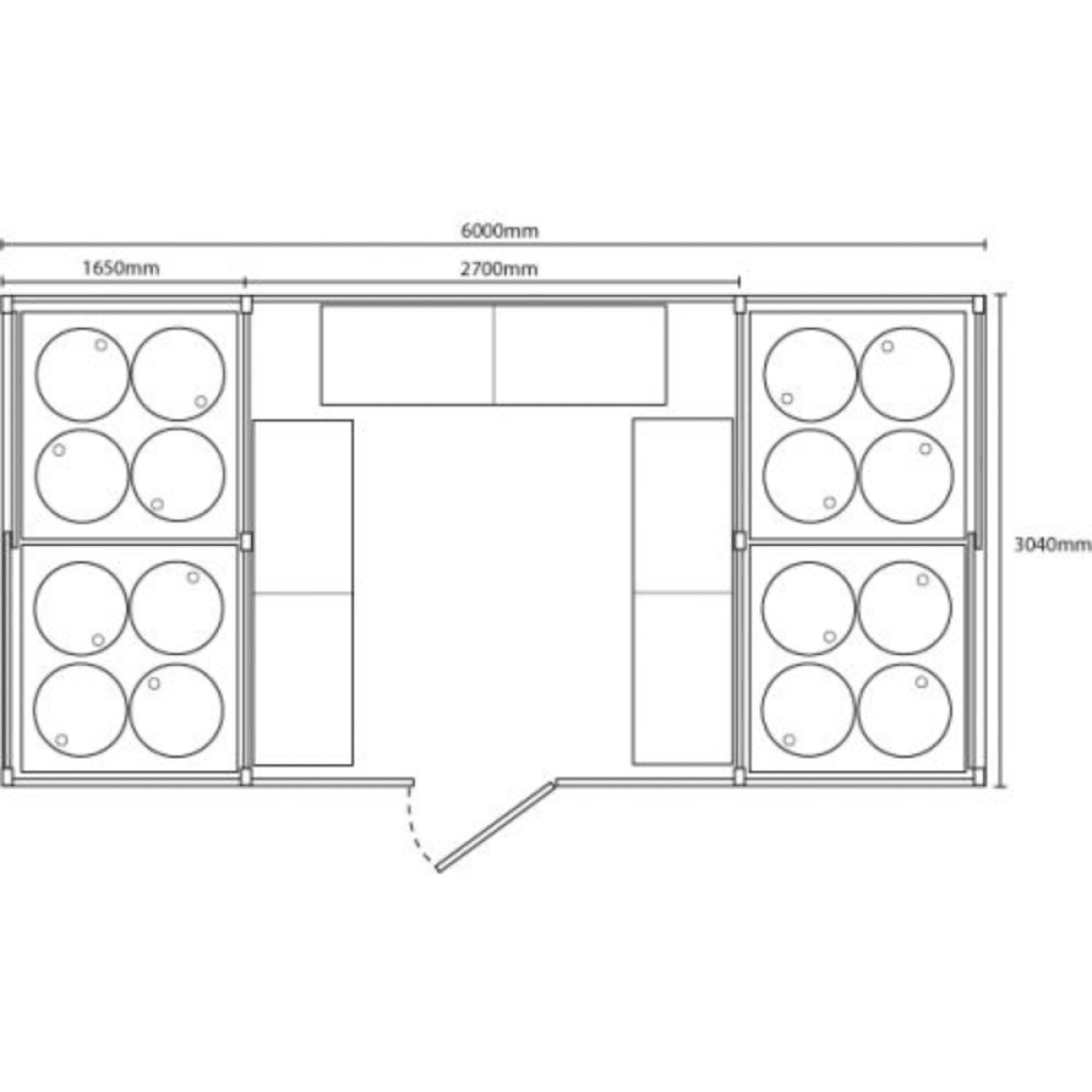

Exterior dimensions (mm) 3350H x 6000L x 3000D
Sump Capacity: 4500 litres
Tare weight: 3000 kg
Standard colour: Green RAL 6029
