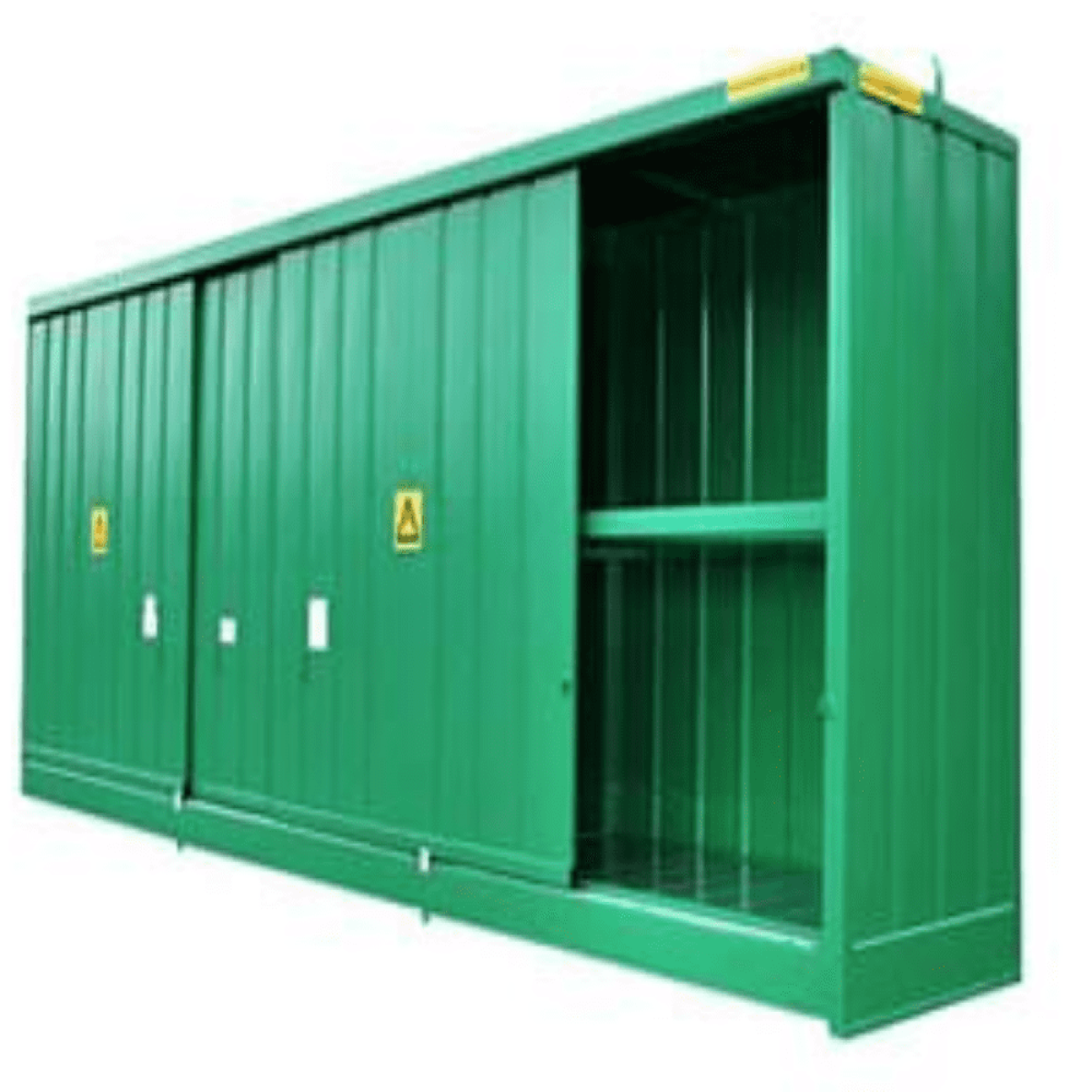

DRUM/IBC STORE - DPU 48-12
Information
Fully enclosed store, manufactured from 3 mm steel sheet, welded around the perimeter, with RHS cross members, and pressed ribs. Corner posts, shelf frames, and main rails are all made from rolled hollow section. Back, sides and double sliding doors are pressed from 2 mm mild steel sheet (corrugated as required for additional strength) while the roof is pressed with suitable bracing.
Units are shot blasted before being painted, and fitted with crane lifting points (maximum 2000 kg per lift point),
NOTE: The floor area above the sump is covered with galvanised steel pallet channels (3 per pallet space) while the upper shelf is an open, box section construction designed to support pallets. Grid mesh shelving is available for the upper shelf as a chargeable option for those who wish to have it fitted with a full floor. Please contact us for further information.
Sump fully complies with all the UK regulations relating to sump capacities.
External Dimensions (mm): 8840L x 1500W x 3275H at the highest point
Number of containers: 48 x 200 litre drums or 12 x 1000 litre IBC's (6 pallet spaces per level)
Sump capacity: 3300 litres
Standard colour: Green RAL 6029 (other colours available at additional cost)
Tare weight: 2800 kg
