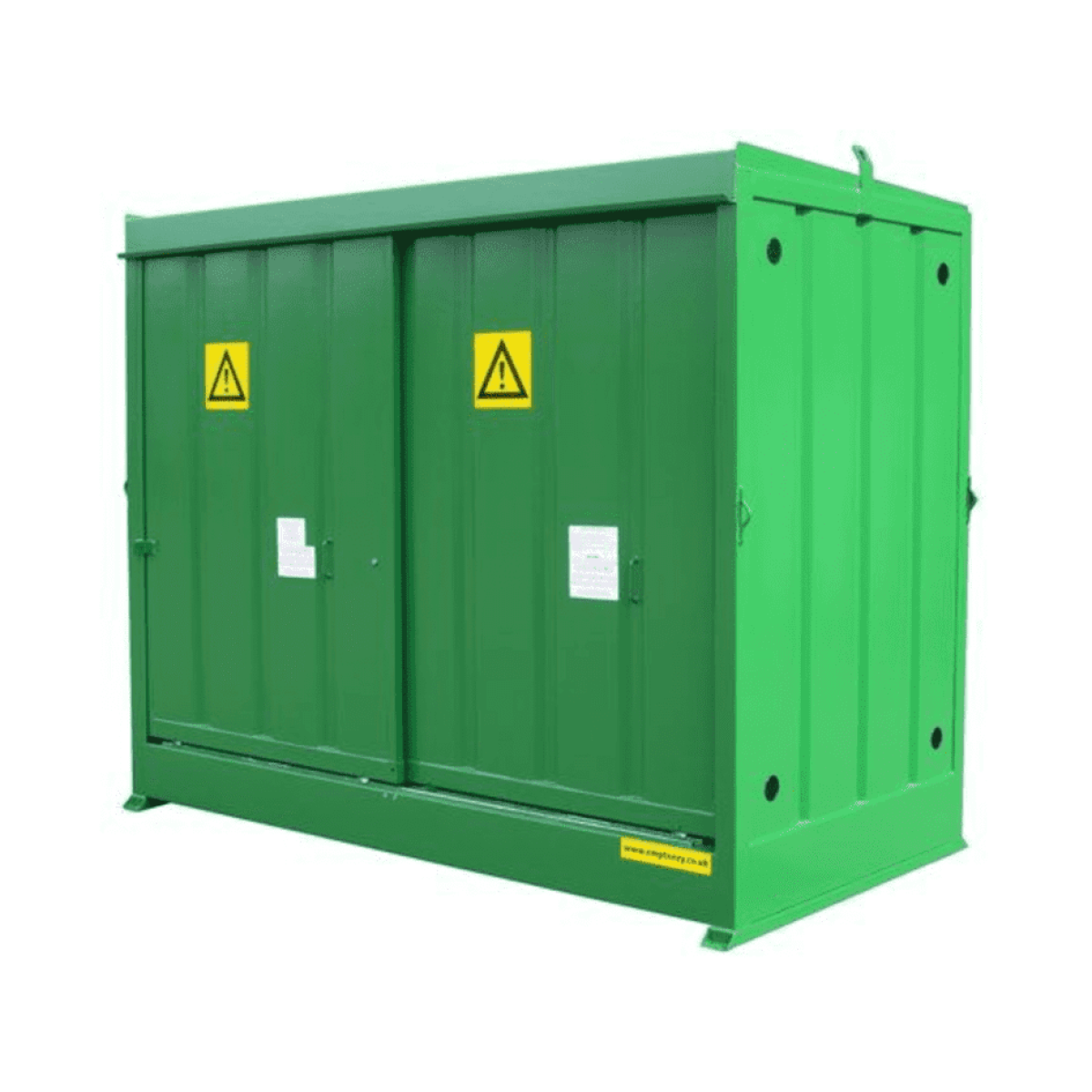

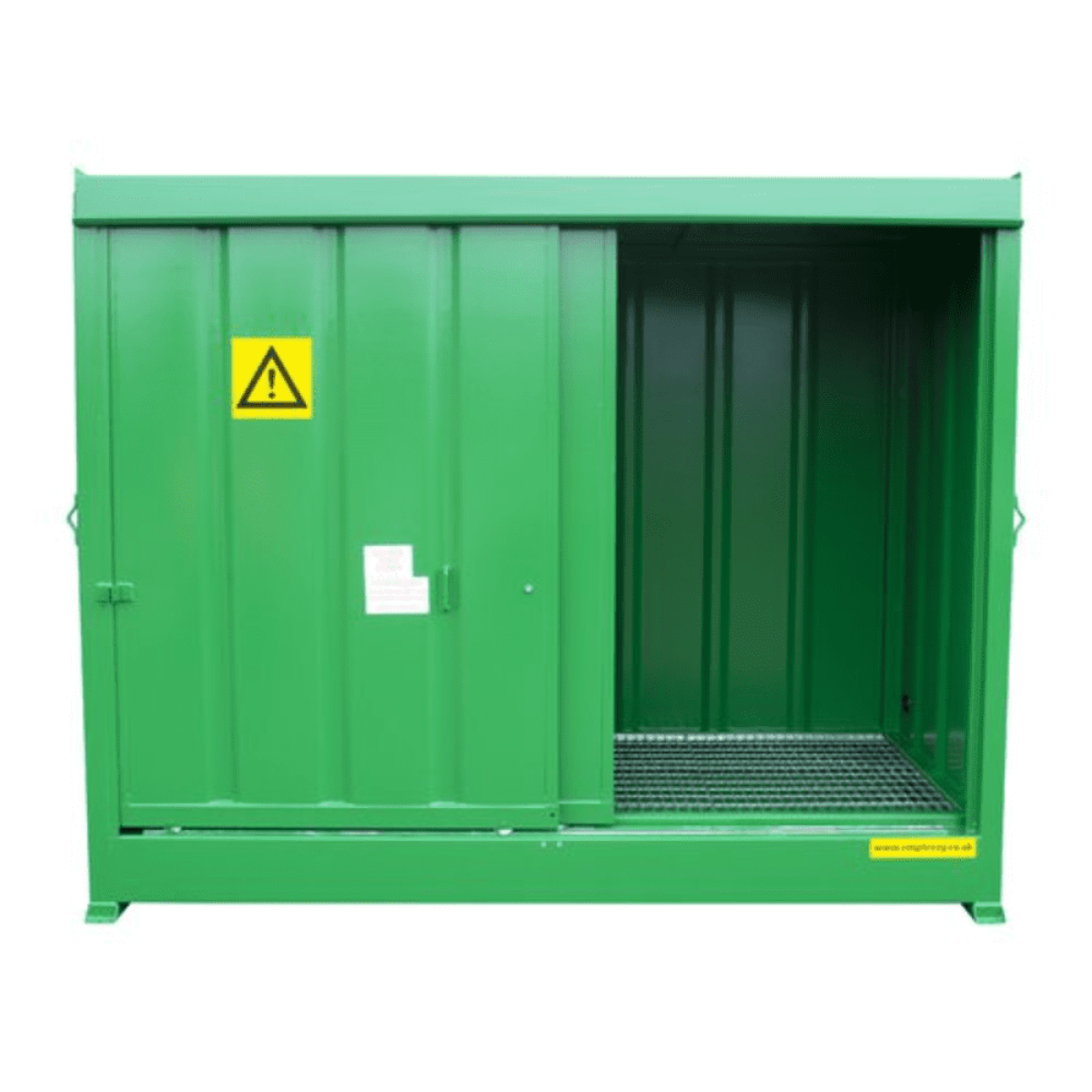

DRUM/IBC STORE - DPU 8-2
Information
Bunded store manufactured from 3 mm steel sheet with RHS cross members and pressed ribs. Corner posts, shelf frame and main rails are all made from rolled hollow section. Back, sides and door are pressed from 2 mm mild steel sheet (corrugated as required for additional strength) while the roof is pressed with suitable bracing.
Store is welded around the perimeter, fitted with crane lifting points (maximum 2000 kg per lift point), double hinged doors, a fully seam welded sump with removable galvanised support channels and is shot blasted before being painted.
Sump fully complies with all the UK regulations relating to sump capacities.
Dimensions: 3000L x 1500W x 2450H (mm) at the highest point on the unit

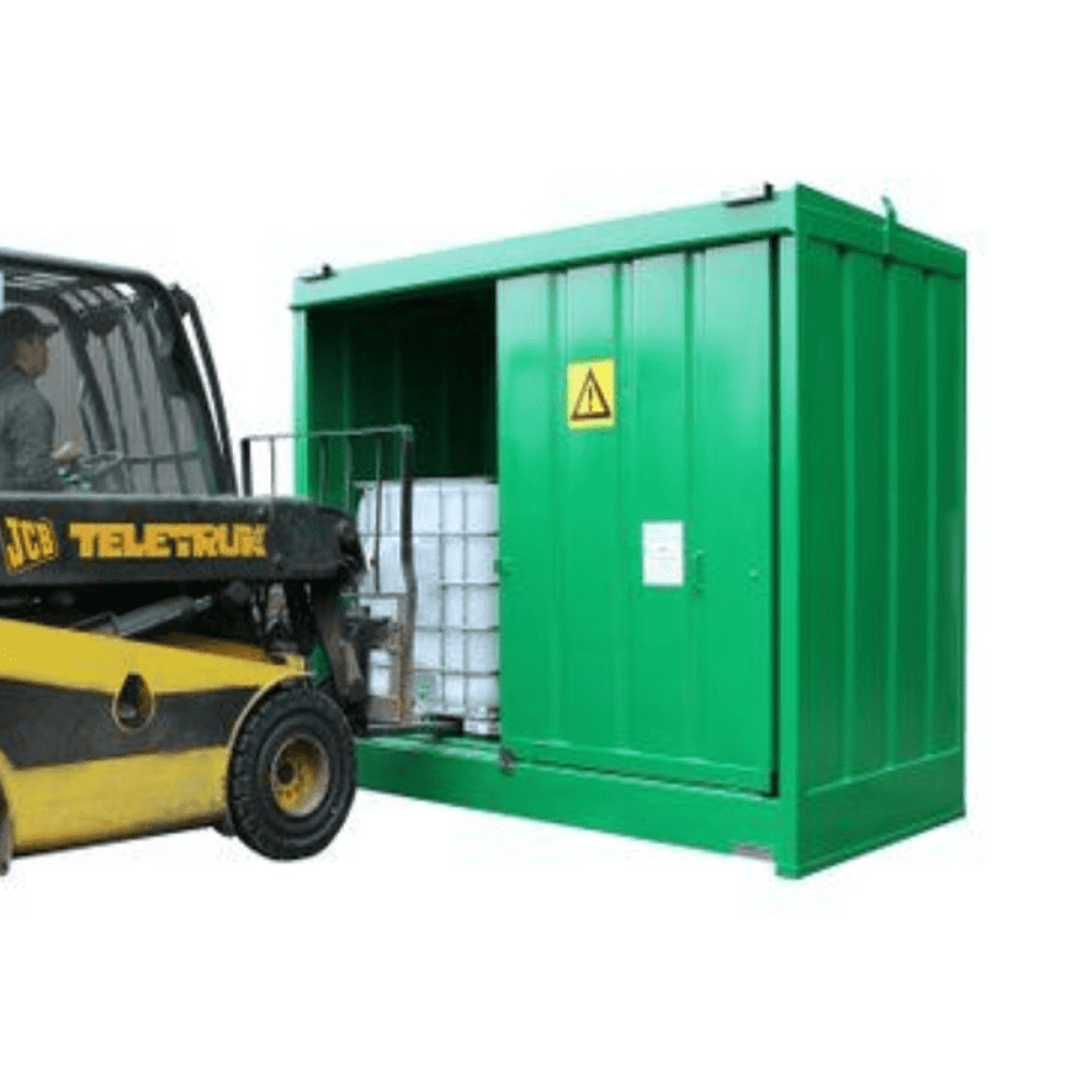

Number of containers: 2 x 1000 litre IBC's
Sump capacity: 1125 litres
Shelf space: 1955 mm
Colour: Green RAL 6029
Tare weight: 965 kg
Chargeable options:
- Air Vents
- Galvanised steel grid mesh
- Galvanised steel pallet channels
