Fork Mounted Hinged Bottom Skip-Type FB
From £1,182.00 each ex VAT From £1,418.40 each inc VAT
Select a item required and then complete the required options to configure your Fork Mounted Hinged Bottom Skip-Type FB.
From £1,182.00 ex VAT From £1,418.40 inc VAT
Information

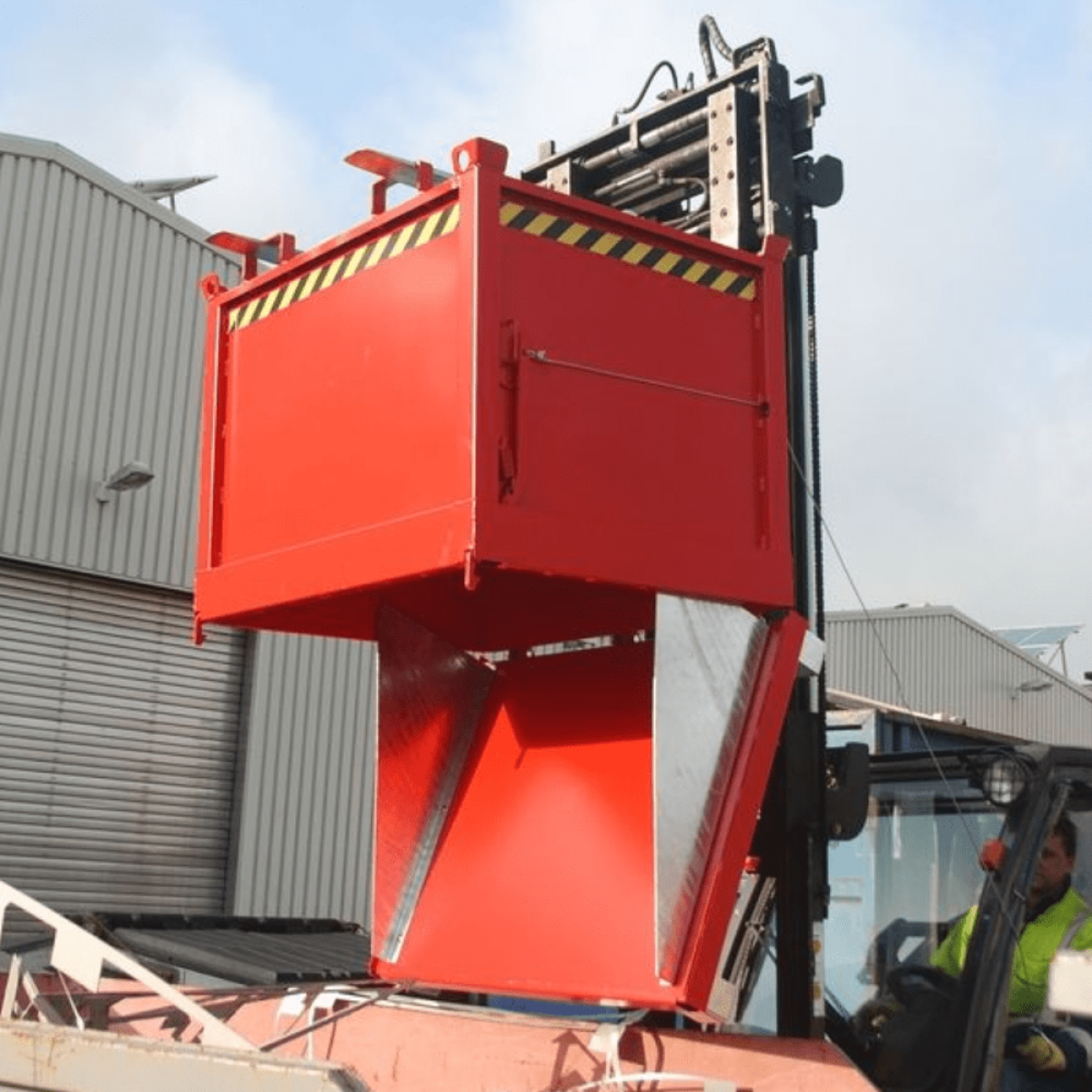

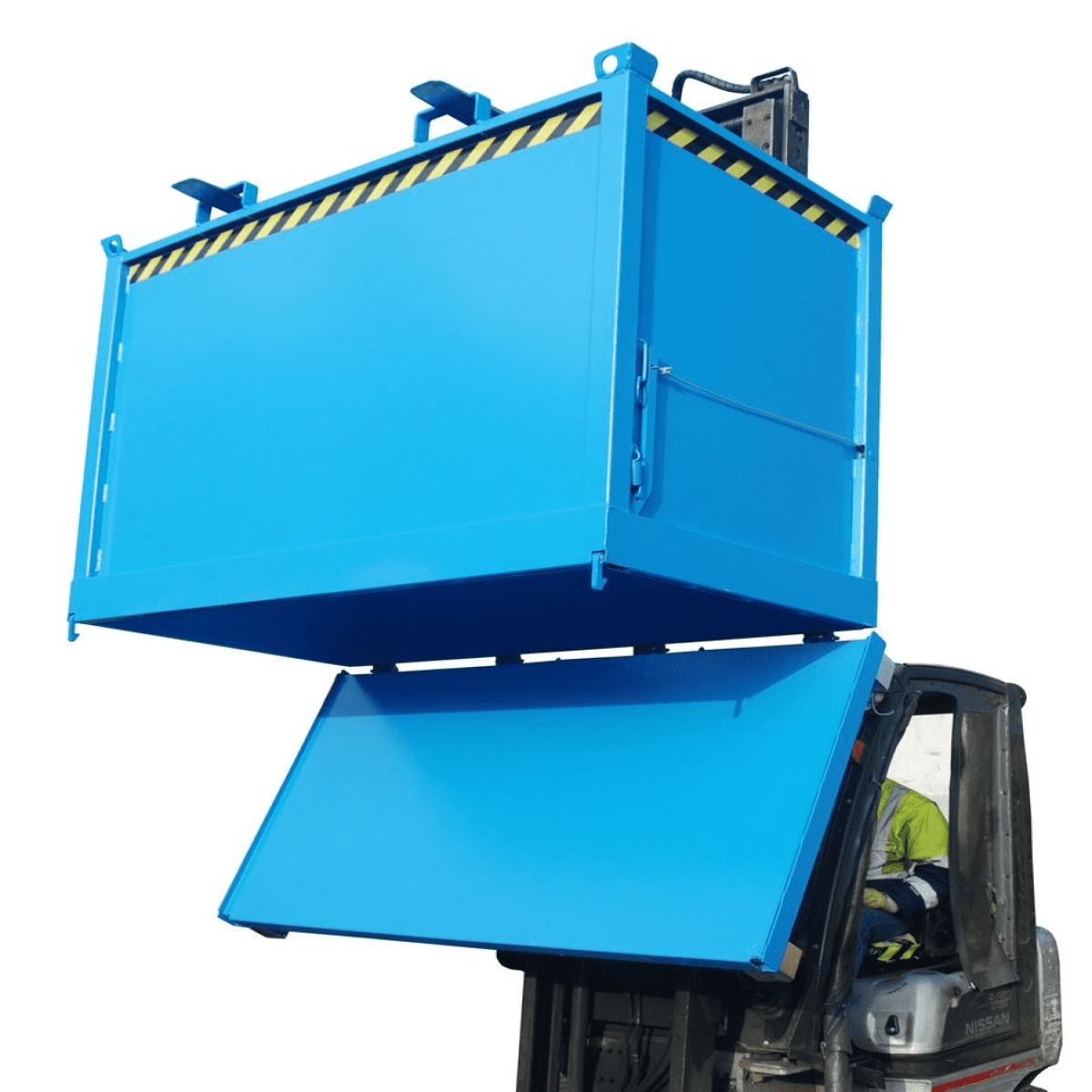

Hinged bottom container skip, manufactured from steel, with smooth interior walls for efficient emptying through the trap door, which can be operated from the drivers seat. The forklift bins are available with galvanized guiding plates to give more precise emptying. The trap door closes automatically when the bulk waste container is set down on the ground. Rubber buffers cushion the base flaps from slamming against forklift mast, when opening to unload the contents. Bottom opening skip containers are ideal for storage and transfer of materials to be recycled such as scrap metal, glass, wood and cardboard.
- Four crane eyes Ø 40 mm are fitted as standard.

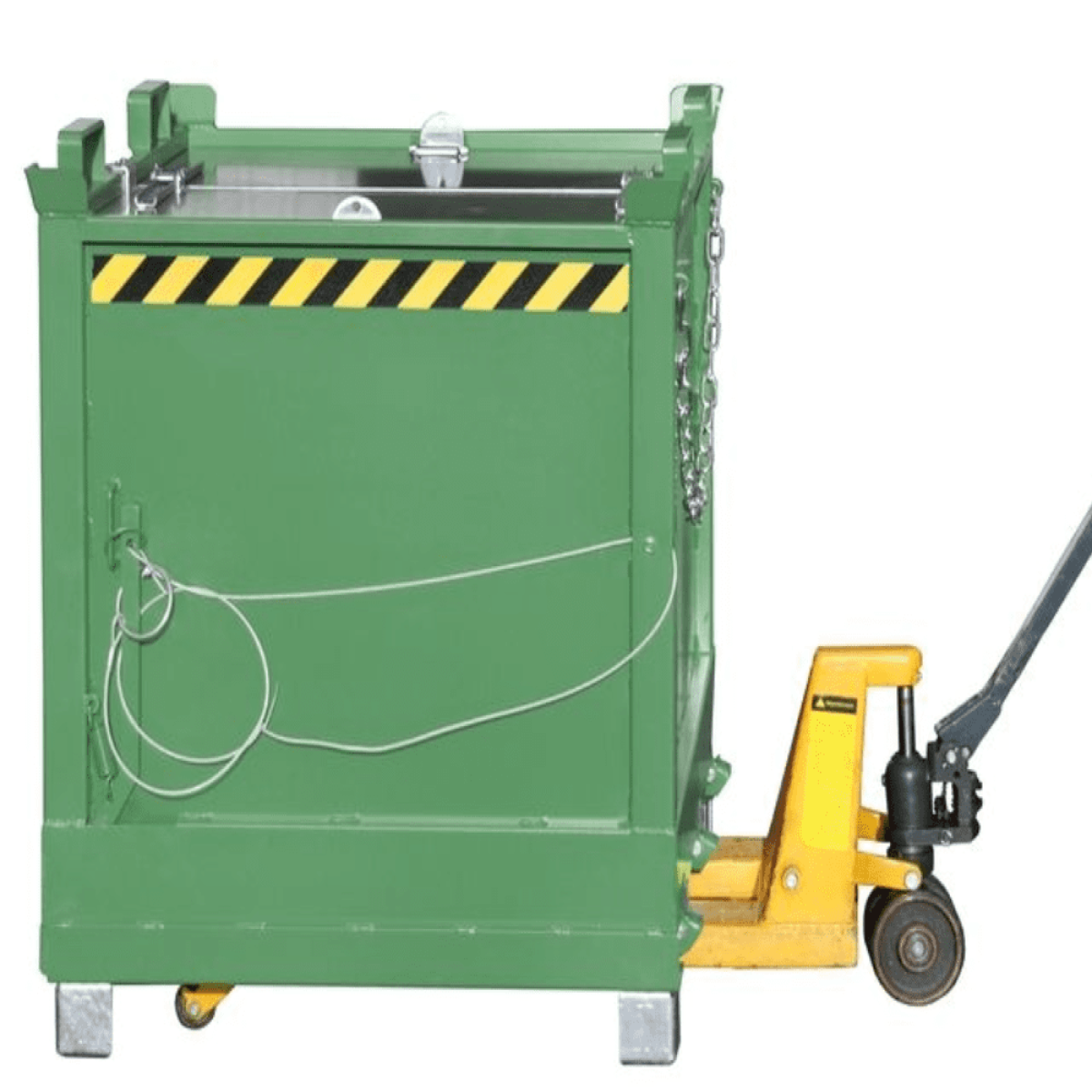

- Tipping bins, have a ground clearance of 100 mm making them suitable for use with a pallet truck.
- Provided with a security chain to prevent slipping or tilting
- Units can be stacked 3 high (cannot be stacked if castors fitted).
Select from five colour finishes
Fork sleeves (hoops) inside dimensions (mm)
Minimum length of forks 1100 mm
| Type | Volume | Dimensions | Load capacity | Weight |
| approx. in m³ | L x W x H (mm) | kg | kg | |
| FB 500 | 0.50 | 800 x 1200 x 860 | 1000 | 125 |
| FB 750 | 0.75 | 800 x 1200 x 1160 | 1000 | 144 |
| FB 1000 | 1.00 | 1000 x 1200 x 1160 | 1250 | 158 |
| FB 1500 | 1.50 | 1000 x 1800 x 1160 | 1500 | 202 |
| FB 2000 | 2.00 | 1000 x 1800 x 1460 | 1500 | 232 |
Accessories available:

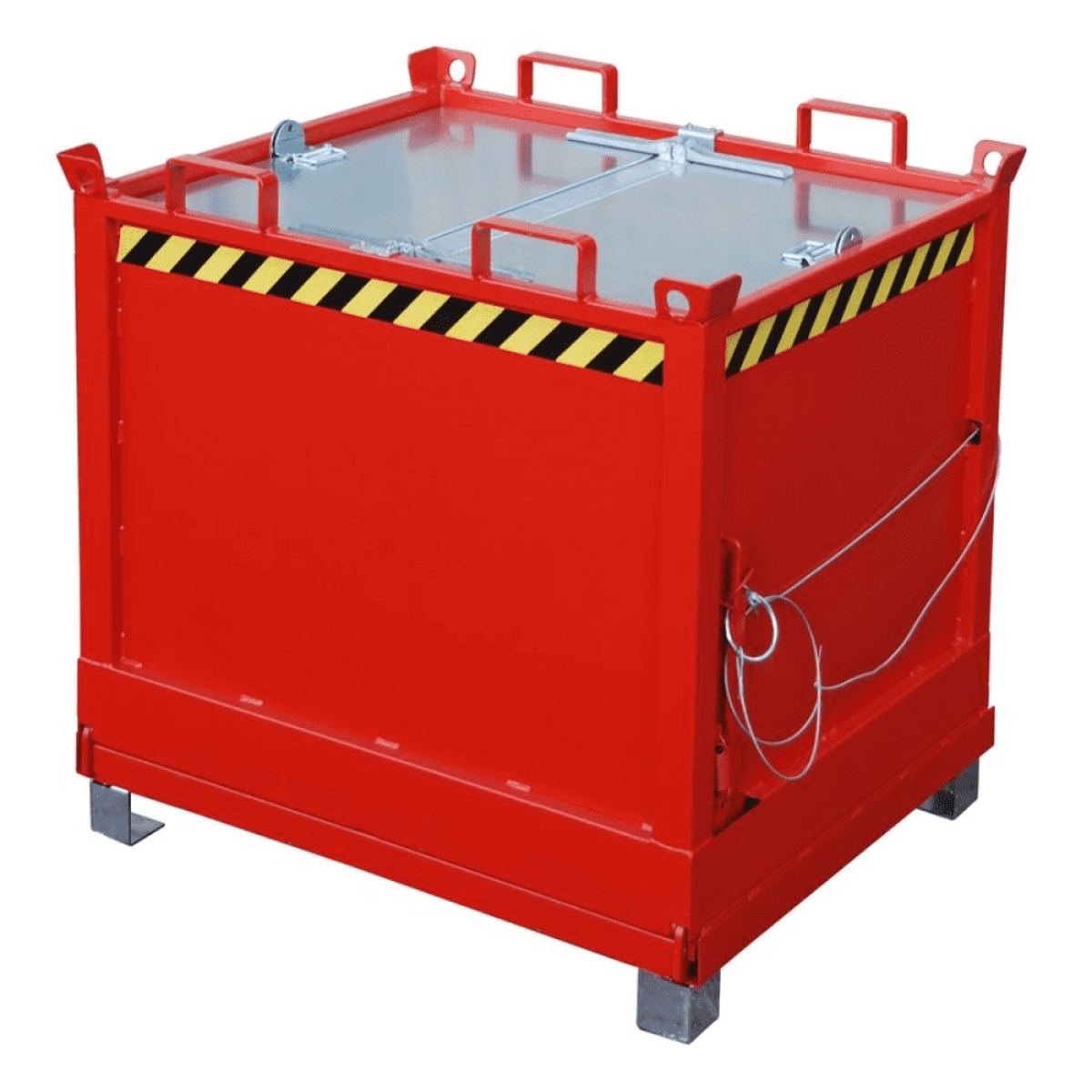

Galvanized lid, can be opened either side

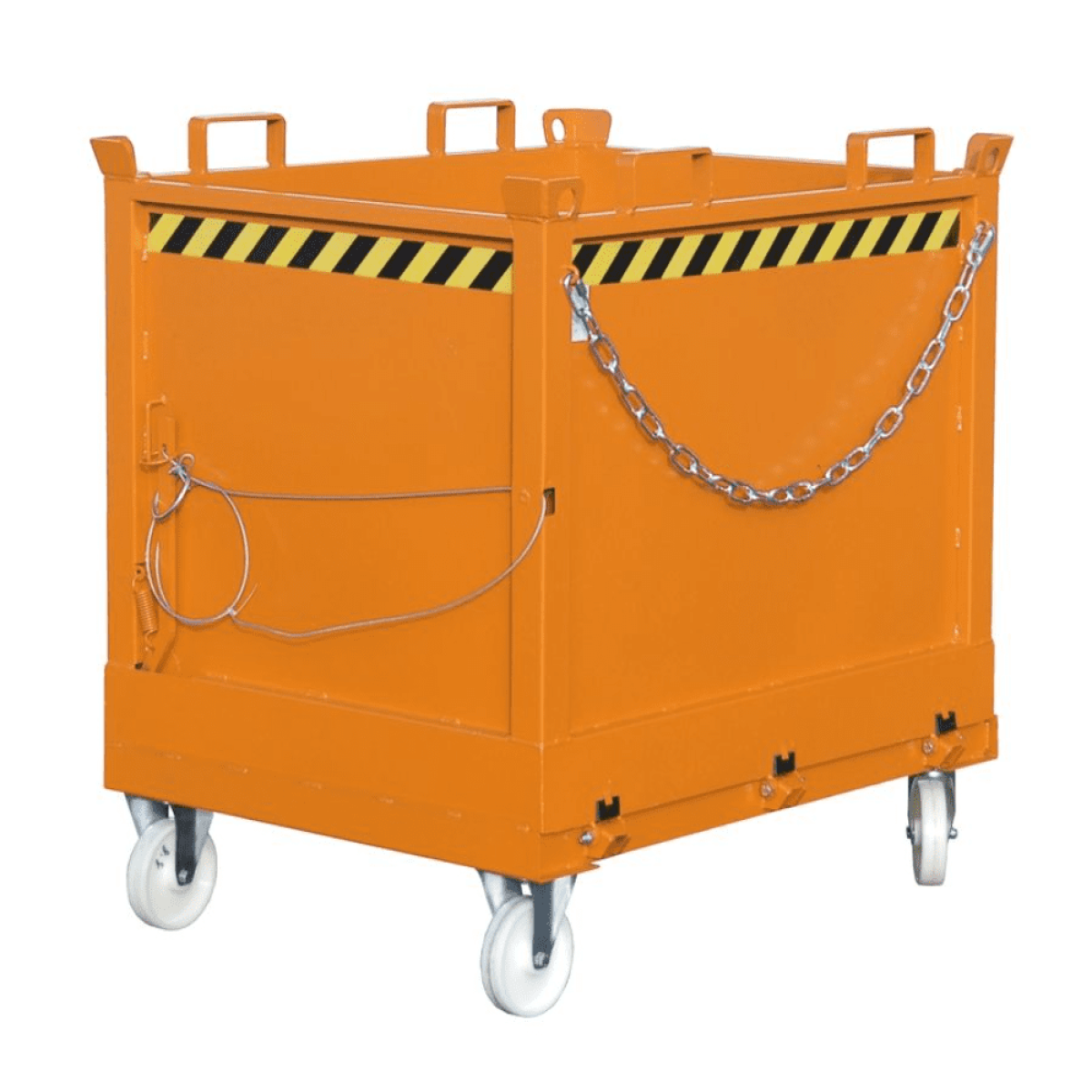

Set of Castors: 2 x polyamide castors Ø 180 x 60mm wide and 2 x swivel castors one of which is braked. Increases overall height 220mm (Can be fitted at a later stage)
Trap door fitted with galvanized guiding plates (gives a more accurate discharge and stops contents spreading over a wider area)
Supplied complete with CE- Certificate, EG Conformity statement and full operating instructions.
FREE UK mainland delivery 5-6 weeks (excluding Highlands & Islands)
