Forklift Bucket Attachment. Type HVR
From £3,443.00 each ex VAT From £4,131.60 each inc VAT
Select a item required and then complete the required options to configure your Forklift Bucket Attachment. Type HVR.
From £3,443.00 ex VAT From £4,131.60 inc VAT
Information

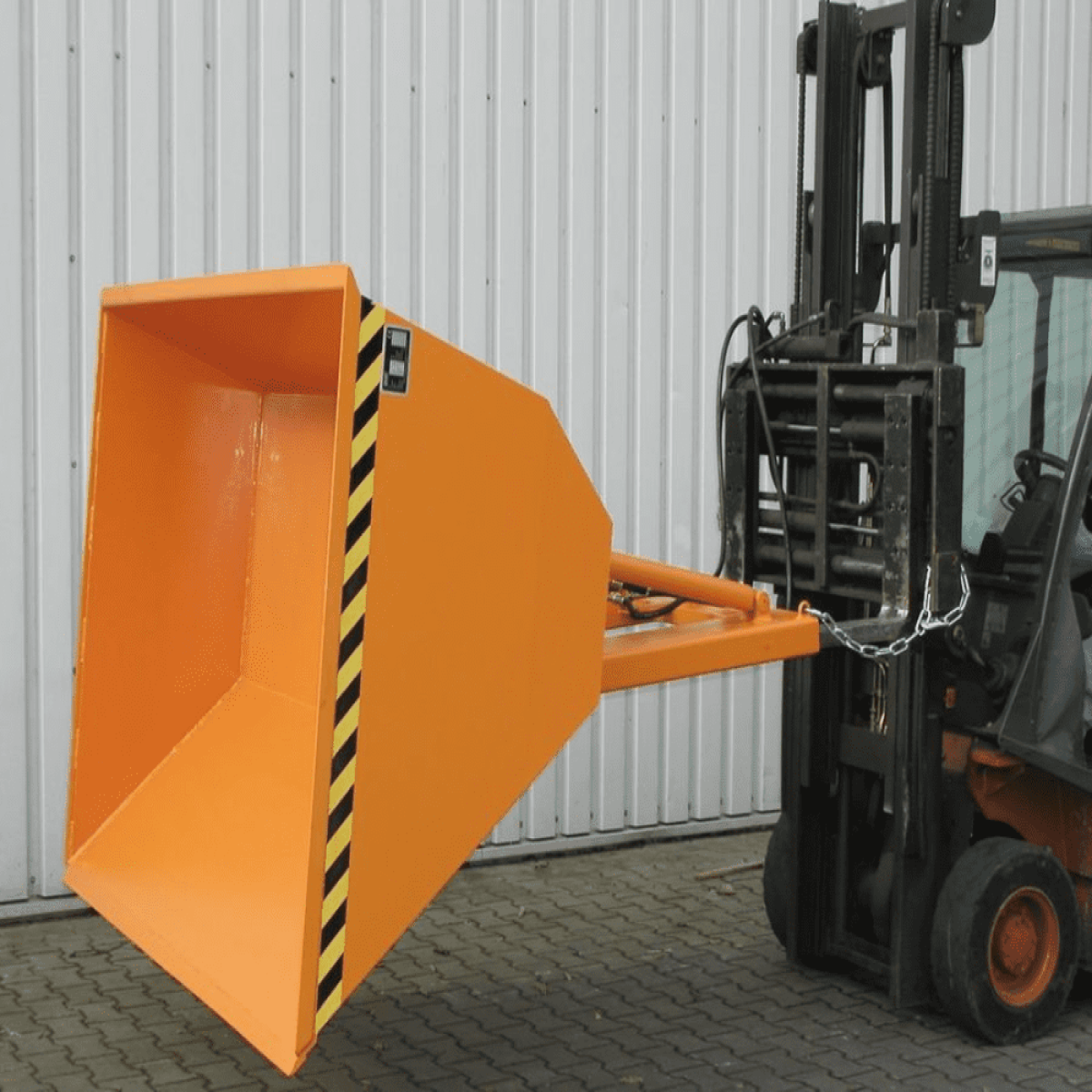

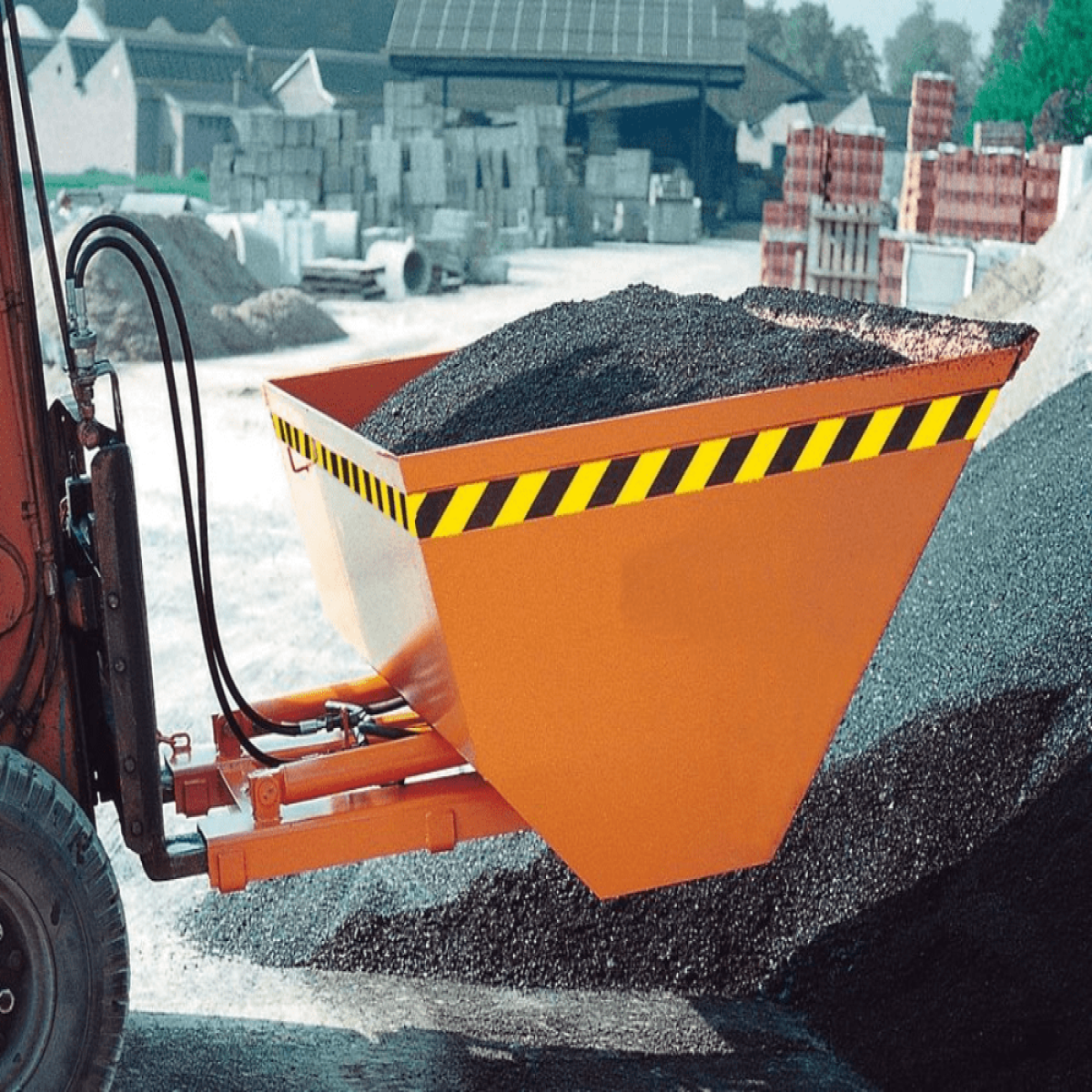

Easy loading and unloading is assured with the aid of the hydraulic bucket attachment for forklift trucks, operated by two hydraulic cylinders. The two cylinders allow bucket movement backwards and forwards making the unit simple to operate. The sturdy frame and scoop are manufactured from steel with reinforced edges. For safety a chain is supplied to secure the unit to the legs of the forklift preventing accidental slippage.
| Type | Volume | Dimensions | SWL | Weight |
|---|---|---|---|---|
| HVR | m³ | L x W x H (mm) | kg | kg |
| HVR 50 | 0.50 | 1625 x 1230 x 650 | 1600 | 265 |
| HVR 75 | 0.75 | 1640 x 1630 x 650 | 1600 | 300 |
| HVR 80 L | 0.80 | 1690 x 1030 x 920 | 1600 | 345 |
| HVR 100 | 1.00 | 1725 x 1830 x 755 | 2000 | 385 |
| HVR 150 | 1.50 | 1855 x 2030 x 930 | 2500 | 430 |
Fork sleeve inside dimensions (mm)
HVR 50/75/80L: A=420 B=160 C=60
HVR 100/150: A=580 B=195 C=70
Colour choice
Supplied complete with 'CE' Certificate, EG conformity statement and full operating instructions
FREE UK mainland delivery 5-6 weeks (excluding Highlands & Islands)
