Forklift Crane Jib - Type KTH
From £1,946.00 each ex VAT From £2,335.20 each inc VAT
Select a unit required and then complete the required options to configure your Forklift Crane Jib - Type KTH.
From £1,946.00 ex VAT From £2,335.20 inc VAT
Information

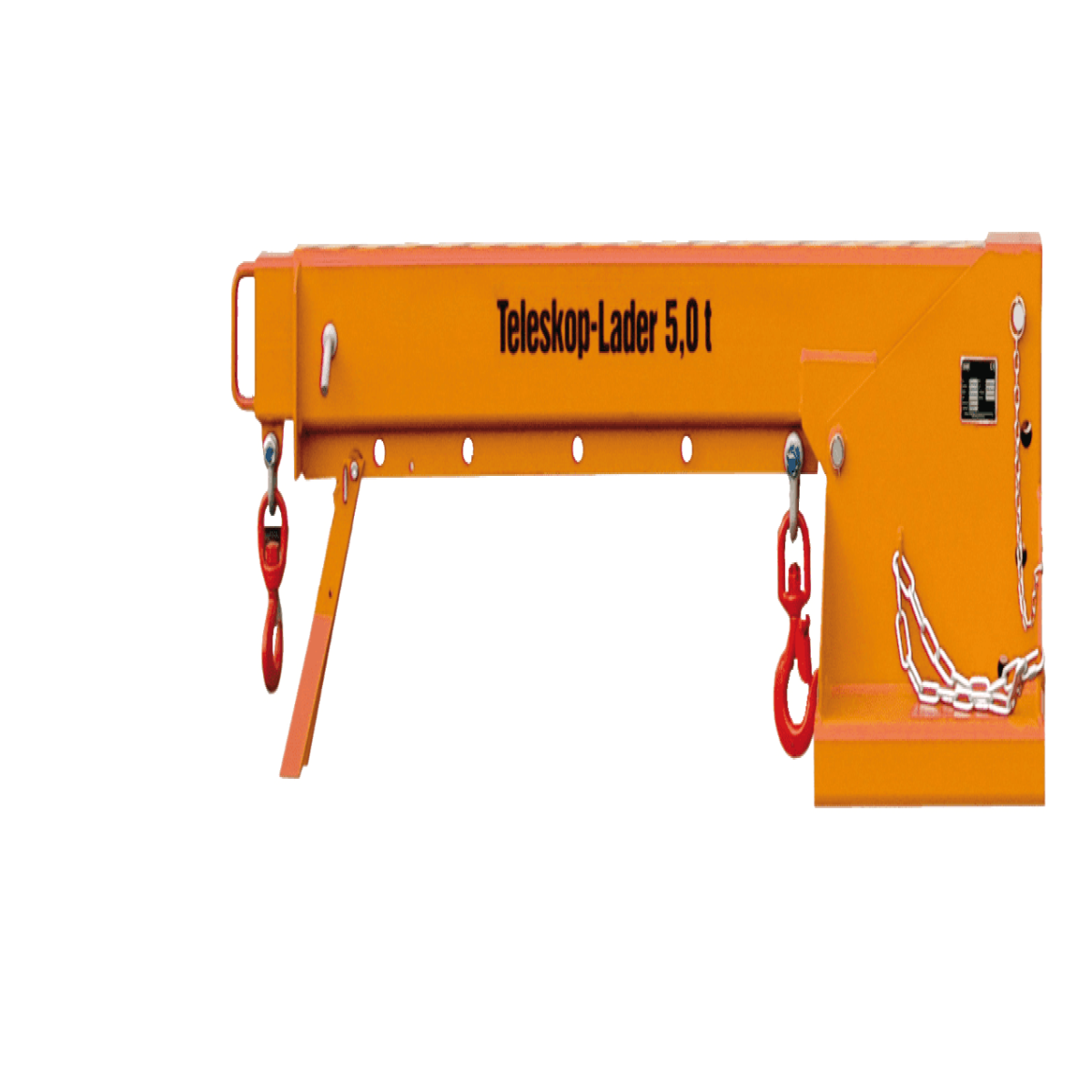

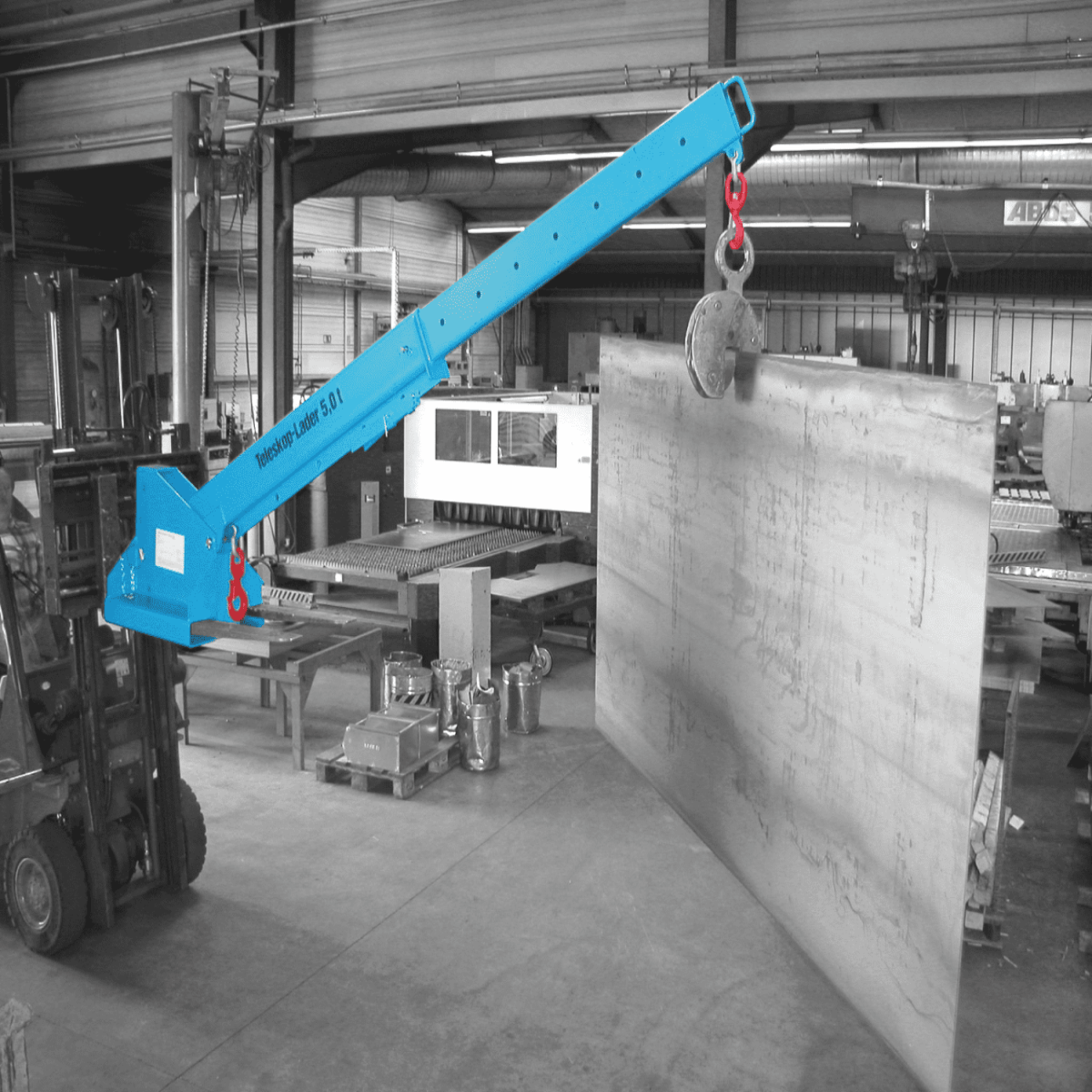

Robust crane jib, manufactured from steel, can be extended in 8 steps to reach maximum length. Quick and easy to attach to the forks, the unit converts a forklift truck into a long reach mobile crane. The extension arm is positioned inside the shell which can be fixed in each of the 3 positions, using the pin provided, allowing greater flexibility for awkward load handling. Supplied complete with 2 rotating hooks and a chain to prevent the unit slipping.
Before use check the capacity of the fork-lift truck in question.
| Type | Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 |
| Distance (mm) | 695 | 990 | 1285 | 1580 | 1825 | 2090 | 2290 | 2490 | 2690 | 2890 | 3090 | 3290 | 3490 | 3690 | |
| KTH 2.5 | Load capacity (kg) | 2500 | 2500 | 2500 | 1800 | 1400 | 1200 | 1050 | 950 | 850 | 770 | 700 | 650 | 600 | 560 |
| KTH 5,0 | Load capacity (kg) | 5000 | 3350 | 2750 | 2250 | 1950 | 1700 | 1550 | 1400 | 1300 | 1200 | 1150 | 1050 | 1000 | 950 |
| Type | A | B | C |
| KTH 2,5 | 540 | 555 | 156 |
| KTH 5,0 | 550 | 600 | 166 |
Finish options
Hot dip galvanized
Painted finish Orange RAL 2000
FREE UK mainland delivery 5-6 weeks (excluding Highlands & Islands)
