Forklift Extendable Loading Arm - Type LAT-25-1.0
From £977.00 each ex VAT From £1,172.40 each inc VAT
Select a colour choice and then complete the required options to configure your Forklift Extendable Loading Arm - Type LAT-25-1.0.
From £977.00 ex VAT From £1,172.40 inc VAT
Information

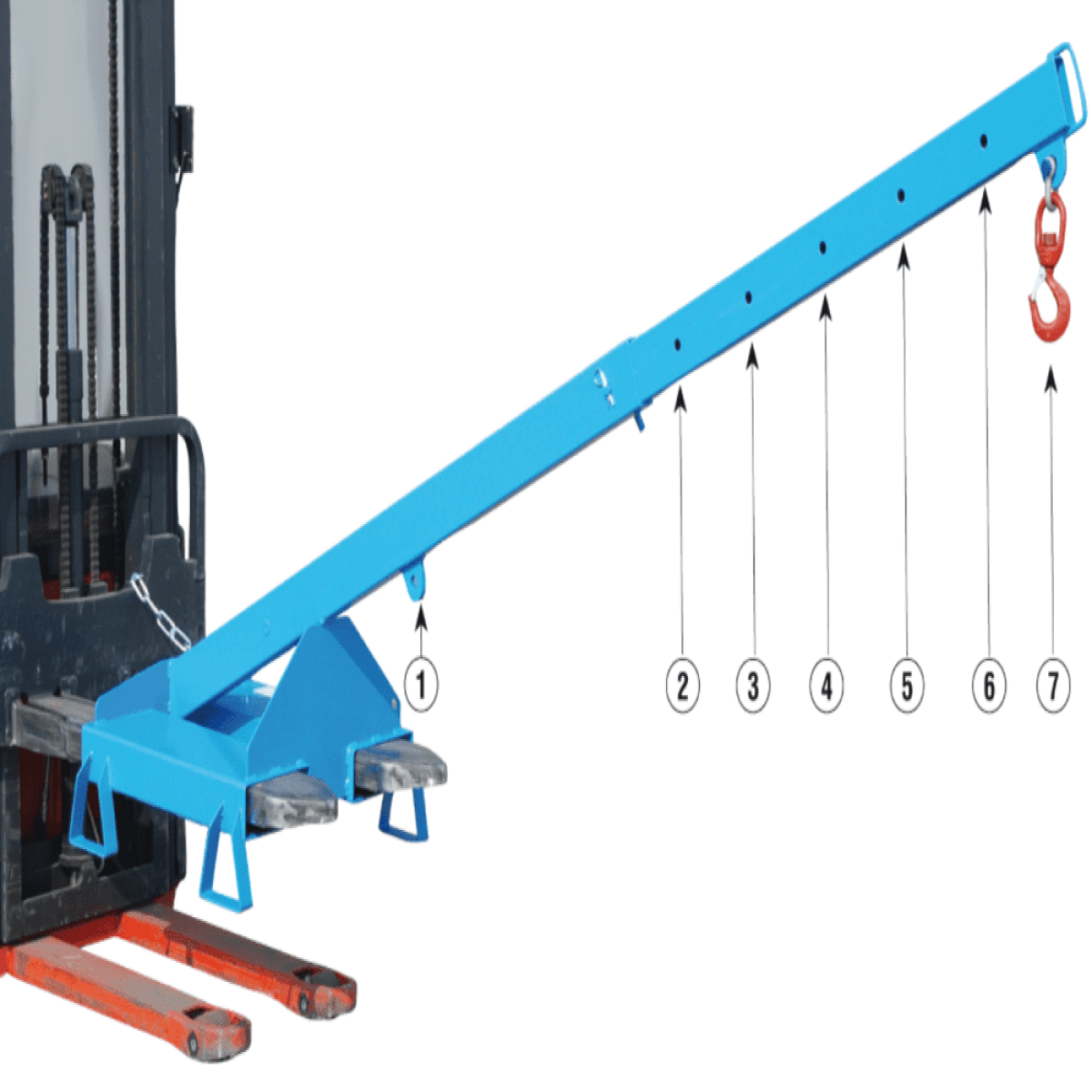

Versatile loading arm transforms fork-lift trucks into mobile cranes for use in industry where the lifting of heavy components & machinery is required. Featuring 7 different positions the rotating hook can be attached to on the fixed boom set at an angle of 25° Maximum extending length 2500 mm with a SWL of 1000 kg on hook position (1)
Delivered complete with full operating instructions & certificates.
| Type | Basic length (mm) | (1) | (2) | (3) | (4) | (5) | (6) | (7) | Weight (kg) |
| LAT-25-1.0 | 1600 | 875 mm | 1600 mm | 1780 mm | 1960 mm | 2140 mm | 2320 mm | 2500 mm | 55 |
| max. load (kg) | 1000 | 300 | 225 | 200 | 175 | 150 | 125 |
Colour Choice
Units are available hot dip galvanized, contact us for prices. Important: Remember to check the load capacity of the fork-lift truck in question!
FREE UK mainland delivery 3-4 weeks (excluding Highlands & Islands)
