Name: Forklift Extending Crane Arm -Type KT
Brand: Unimac

Forklift Extending Crane Arm -Type KT

From £1,647.45 each ex VAT From £1,976.94 each inc VAT

Select a item required and then complete the required options to configure your Forklift Extending Crane Arm -Type KT.

Item required

Quantity

From £1,647.45 ex VAT From £1,976.94 inc VAT

Make An Enquiry

Secure checkout with order confirmation.

NEED ANY ASSISTANCE?

OUR EXPERT TEAM IS HERE TO HELP YOU.
CONTACT US TODAY OR CALL US ON

01933665000 01933 665000

Information

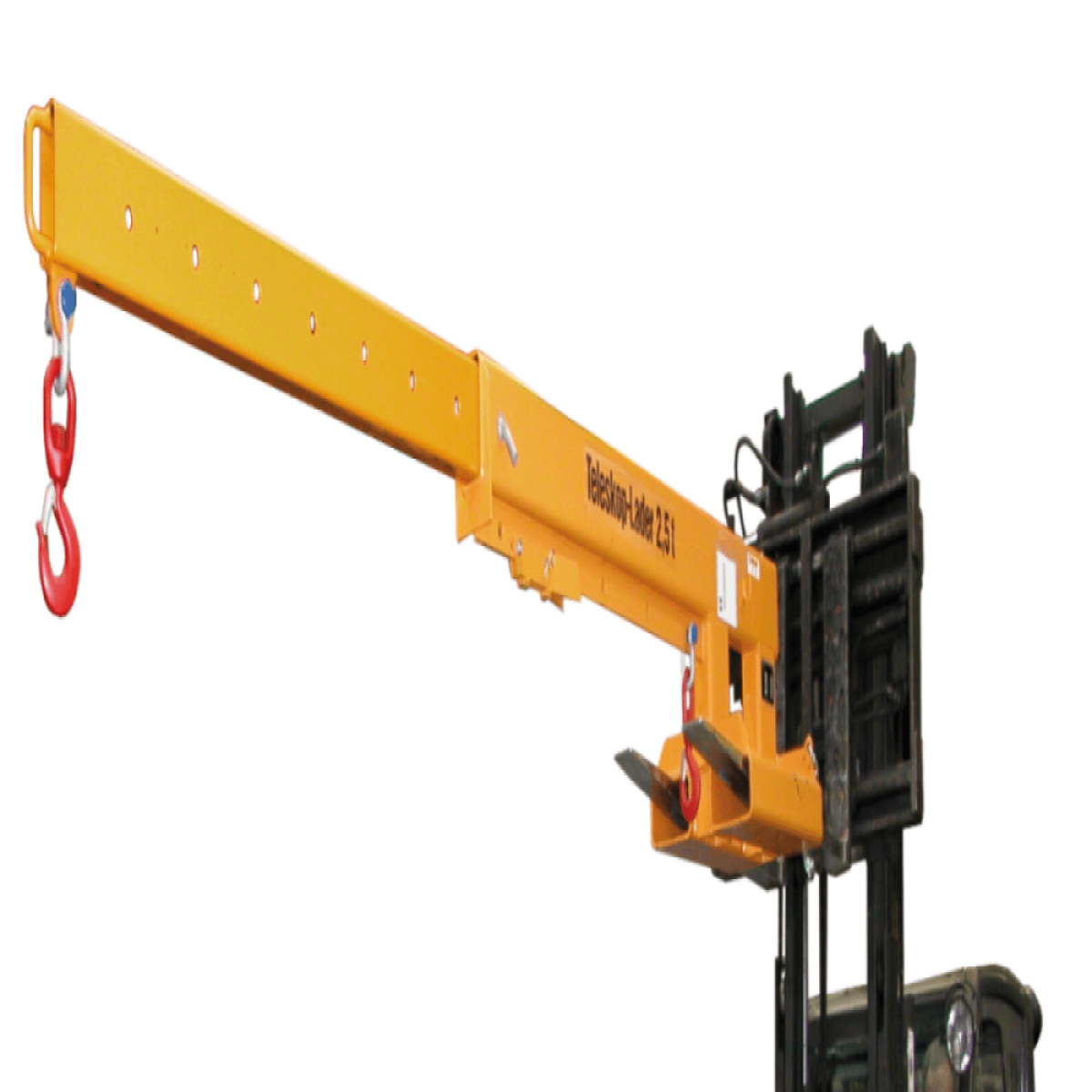

Forklift Extending Crane Arm Attachment can accommodate loads of up to 5000 kg. transforming a forklift truck into a mobile crane. Ideal for use in a factory environment handling heavy pieces of equipment. Featuring an extension arm that can be adjusted in 8 different positions giving a maximum reach of 3655 mm. Secured by chain to prevent slippage the units are supplied complete with 2 rotating hooks.

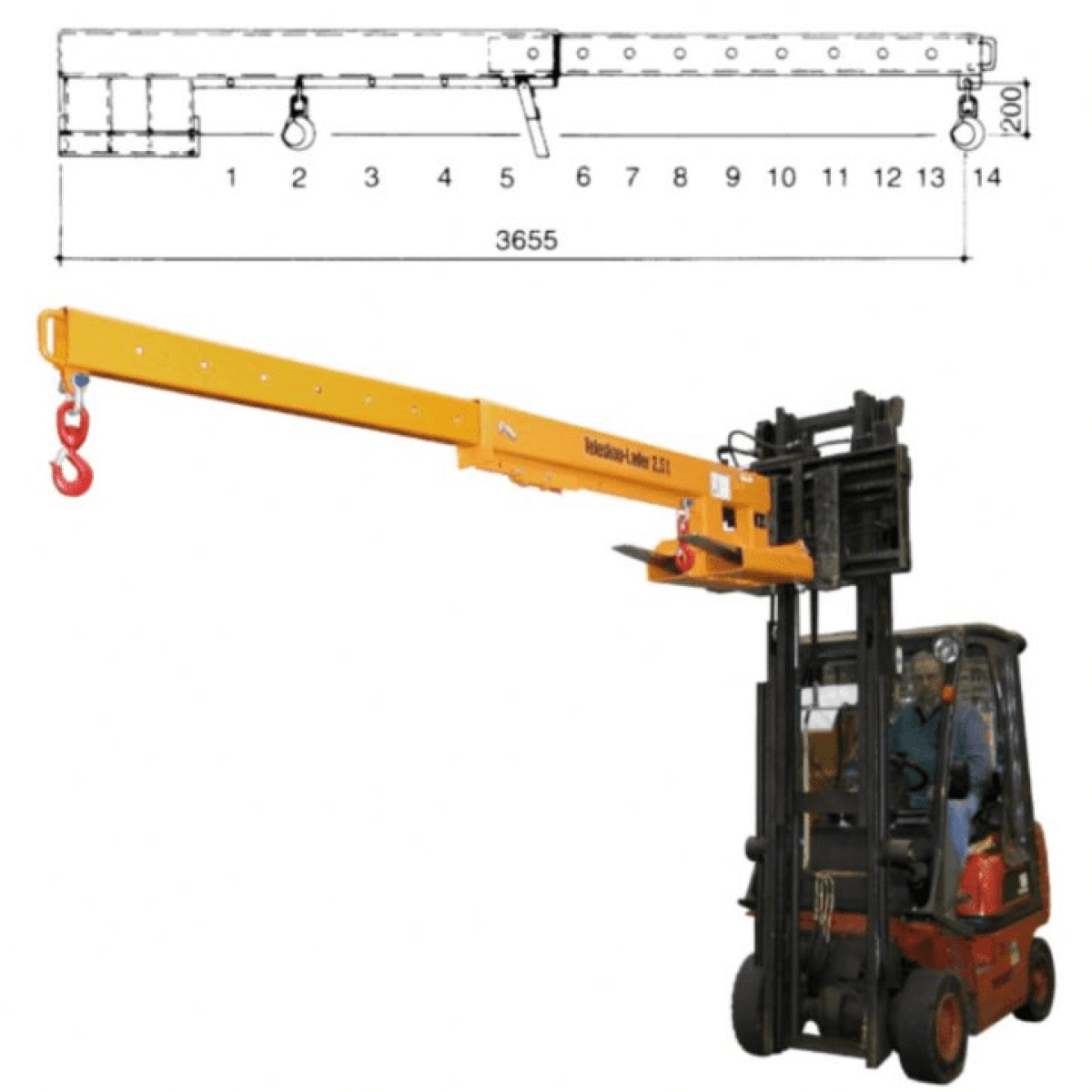

Hook positions

Type	Position	1	2	3	4	5	6	7	8	9	10	11	12	13	14
	Distance (mm)	710	1000	1290	1590	1870	2055	2255	2455	2655	2855	3055	3255	3455	3655
KT-K 2.5	Load capacity (kg)	2500	2500	2500	1800	1400	1200	1050	950	850	770	700	650	600	560
KT-K 5.0	Load capacity (kg)	5000	3350	2750	2250	1950	1700	1550	1400	1300	1200	1150	1050	1000	950

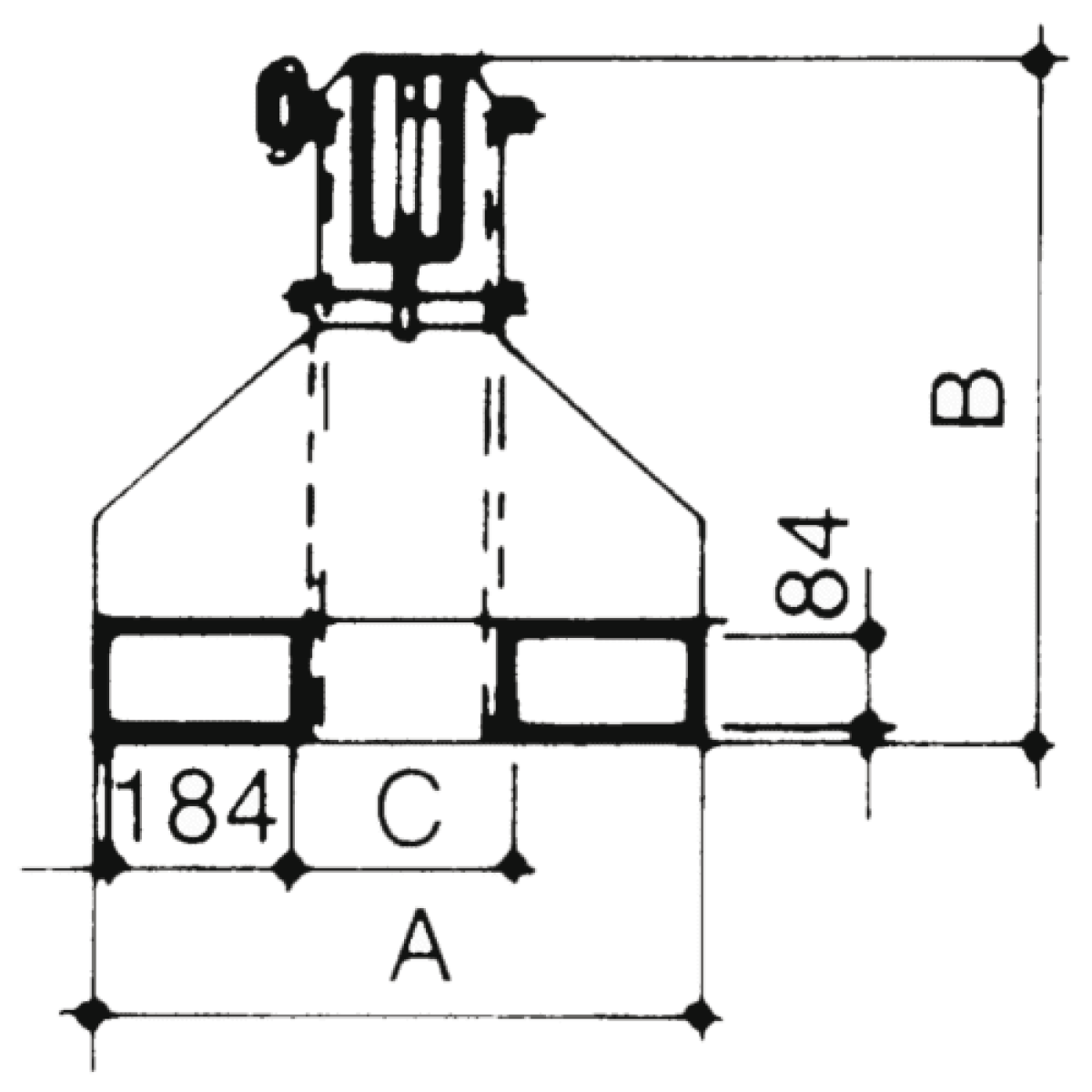

Fork sleeve inside dimensions(mm)
Type	A	B	C
KT 2,5	490	480	106
KT 5,0	500	525	116

Finish options

Hot dip galvanized units: Prices available on request
Important: Remember to check the load capacity of the fork-lift truck in question!

FREE UK mainland delivery 5-6 weeks (excluding Highlands & Islands)
