Forklift High Lifting Jib - Type HLJ
Secure checkout with order confirmation.
Information

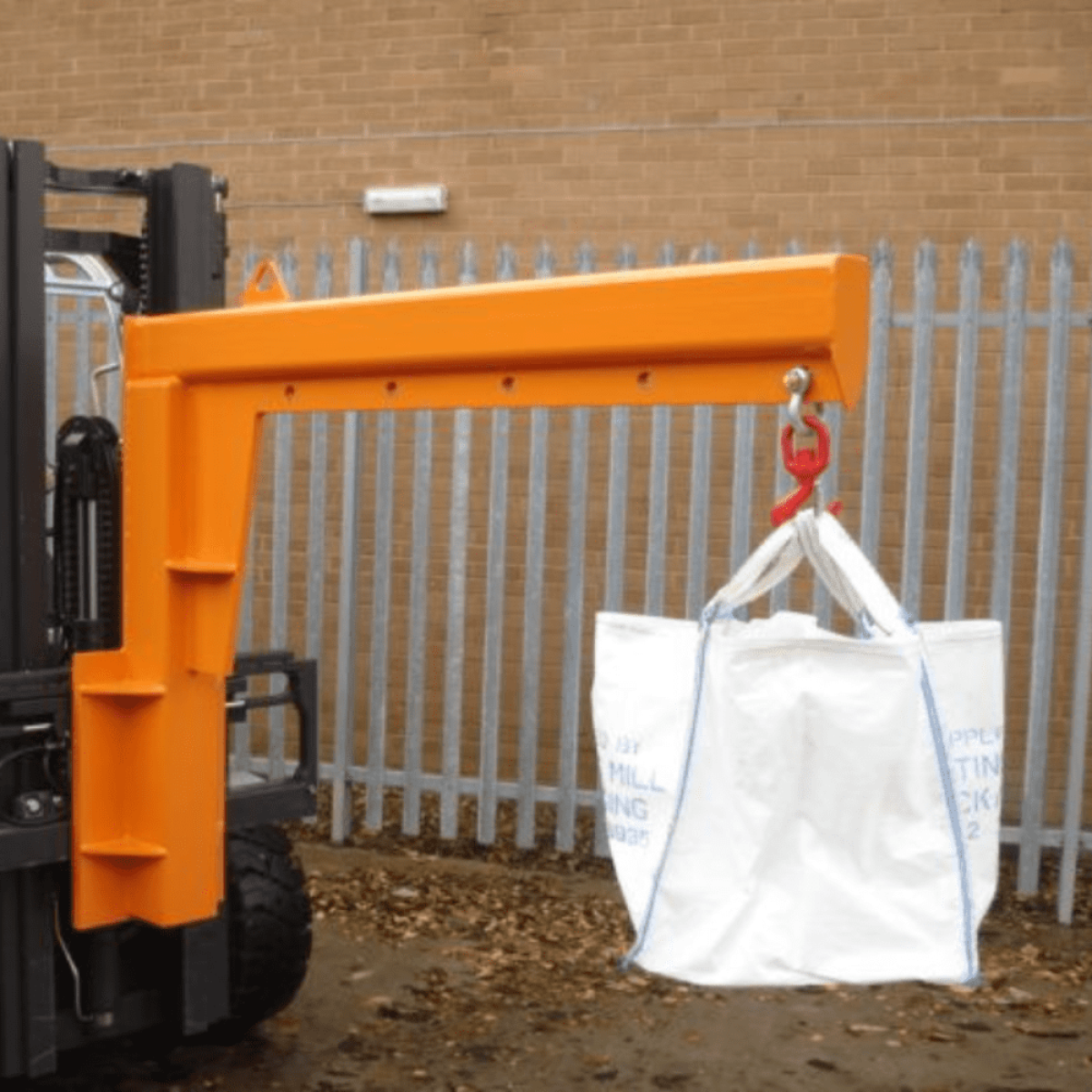

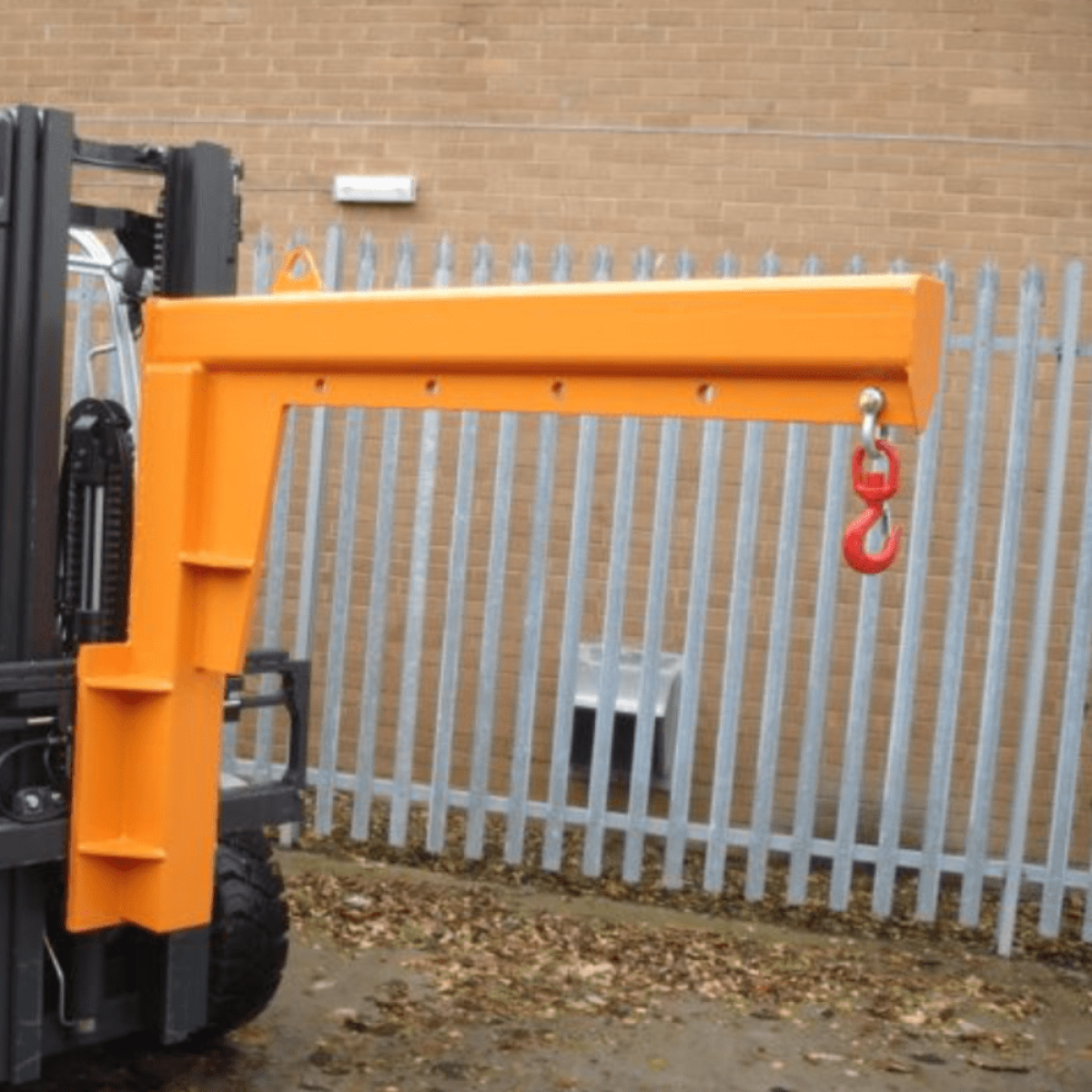

Fork Mounted High Lift Jib increases overall lifting height of fork truck and is particularly useful when lifting over static obstructions. Mounted directly onto the fork carriage, the jib has a 7000 kg maximum lift capacity.
| ITA/ FEM Class | Type | 500 | 1050 | 1250 | 1500 | 1750 |
| 2 | HLJ 1000 | 1000 | 800 | 700 | 500 | 405 |
| 2 | HLJ 2000 | 2000 | 1500 | 1350 | 800 | 420 |
| 3 | HLJ 3000 | 3000 | 2400 | 1750 | 900 | 430 |
| 3 | HLJ 4000 | 4000 | 3000 | 2000 | 1000 | 470 |
| 4 | HLJ 5000 | 5000 | 3500 | 2700 | 1850 | 1400 |
| 4 | HLJ 6000 | 6000 | 4650 | 3800 | 2450 | 1650 |
| 4 | HLJ 7000 | 7000 | 5375 | 4750 | 4125 | 3500 |
Features
- Multi hook positioning from 1000-1750 load centres
- Supplied complete with Swivel hook and bow shackle
- Quick release bottom hangers supplied as standard
- Lifting eye at centre of gravity for ease of movement and mounting on to forklift
- Painted bright orange for safety
Operation
- Remove existing forks from forklift carriage.
- Position Jib so as the load beam is parallel to the finish floor level.
- Remove the quick release bottom hangers by pulling out the safety R clip and retracting retaining pin.
- Position the forklift behind the Jib back plate and centralise the forklift carriage with the Jib back plate.
- Drive towards the Jib back plate with the mast tilted forward and hook the top carriage rail under the top hangers of the Jib back plate, ensuring that the location peg on the jib back plate locates into the central castellation of the forklift carriage.
- Whilst raising the forklift carriage tilt mast back to the vertical position until the attachment is clear of the finish floor level.
- Reposition the quick release bottom hangers ensuring the safety R clip is correctly inserted.
- Position the swivel hook and shackle to the desired lifting point, ensuring that the shackle is adequately tightened.
- The attachment is now ready for use.
Availability: manufactured to order - Allow 6 weeks.
FREE UK mainland delivery (excluding Highlands & Islands)
