Gas Bottle Transporter GCH-MULTI
Information

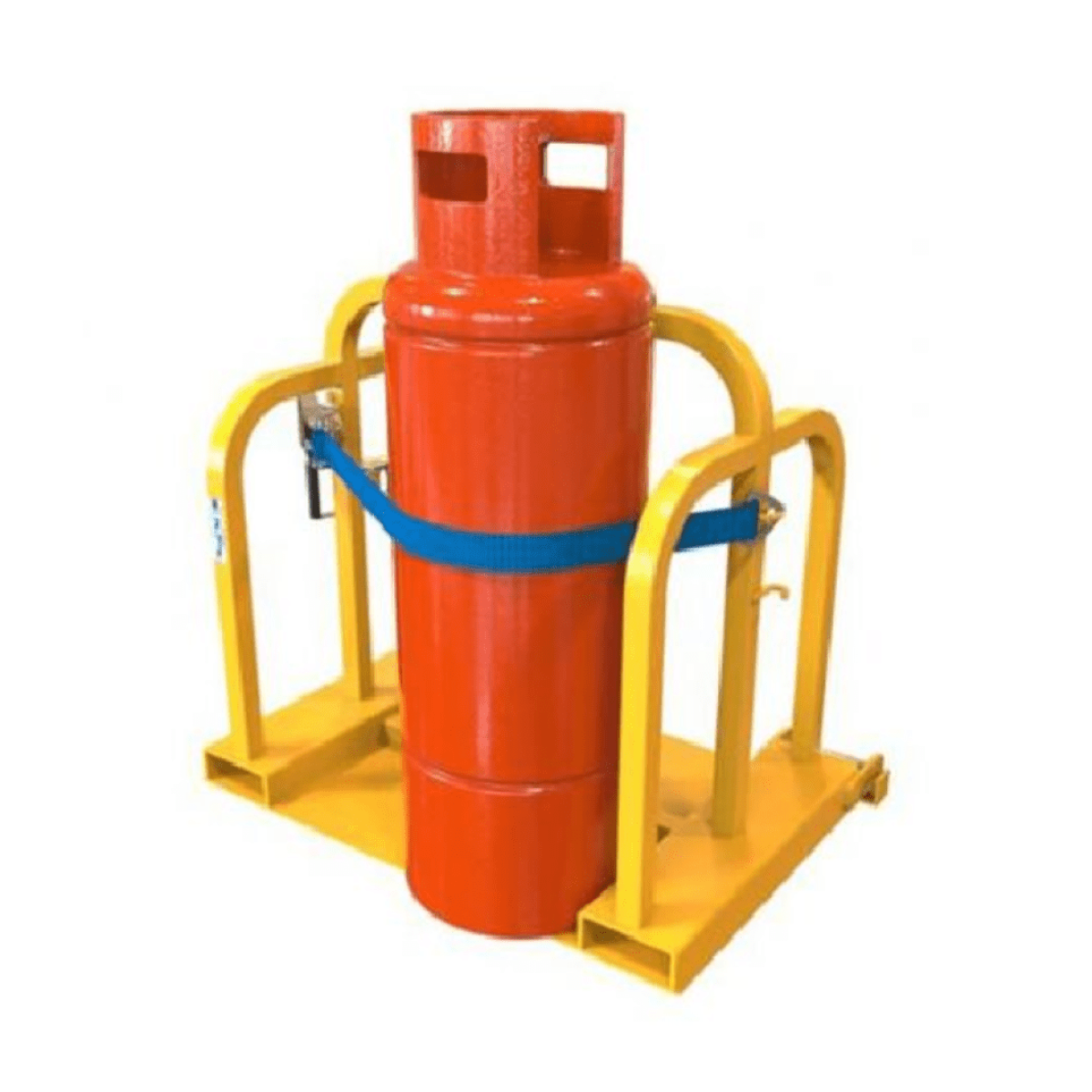

Forklift gas bottle transporter, designed to safely carry and transport gas cylinders around the workplace. To attach, simply drive forks into the pockets, and the unit is held firmly in place with a locking heel pin. Whilst transported cylinders are secured firmly in place with webbing and ratchet straps.
240 - 380 (mm) diameter Cylinders are capable of being handled in this unit
- Max SWL: 500 kg
- Fork Spread: 912 mm
- Max Fork Size: 130 x 50 mm
- Weight: 69 kg
- Painted finish Hi-visibility Yellow Gloss
| Butane | 4.5 kg | 6 kg | 7 Kg | 15 kg |
| Diameter | 240 mm | 306 mm | 256 mm | 318 mm |
| Cylinders | 4 | 4 | 4 | 2 |
| Propane | 3.9 kg | 5 kg | 6 Kg | 13 & 19 kg |
| Diameter | 240 mm | 306 mm | 256 mm | 318 mm |
| Cylinders | 4 | 4 | 4 | 2 |
'CE' marked and supplied with Certificate of Conformity for Health & Safety Regulations
