Gas Cylinder Cage With Roof for 78 Cylinders: GFC-M4/D
From £1,965.00 each ex VAT From £2,358.00 each inc VAT
Select a door type to configure your Gas Cylinder Cage With Roof for 78 Cylinders: GFC-M4/D.
From £1,965.00 ex VAT From £2,358.00 inc VAT
Information

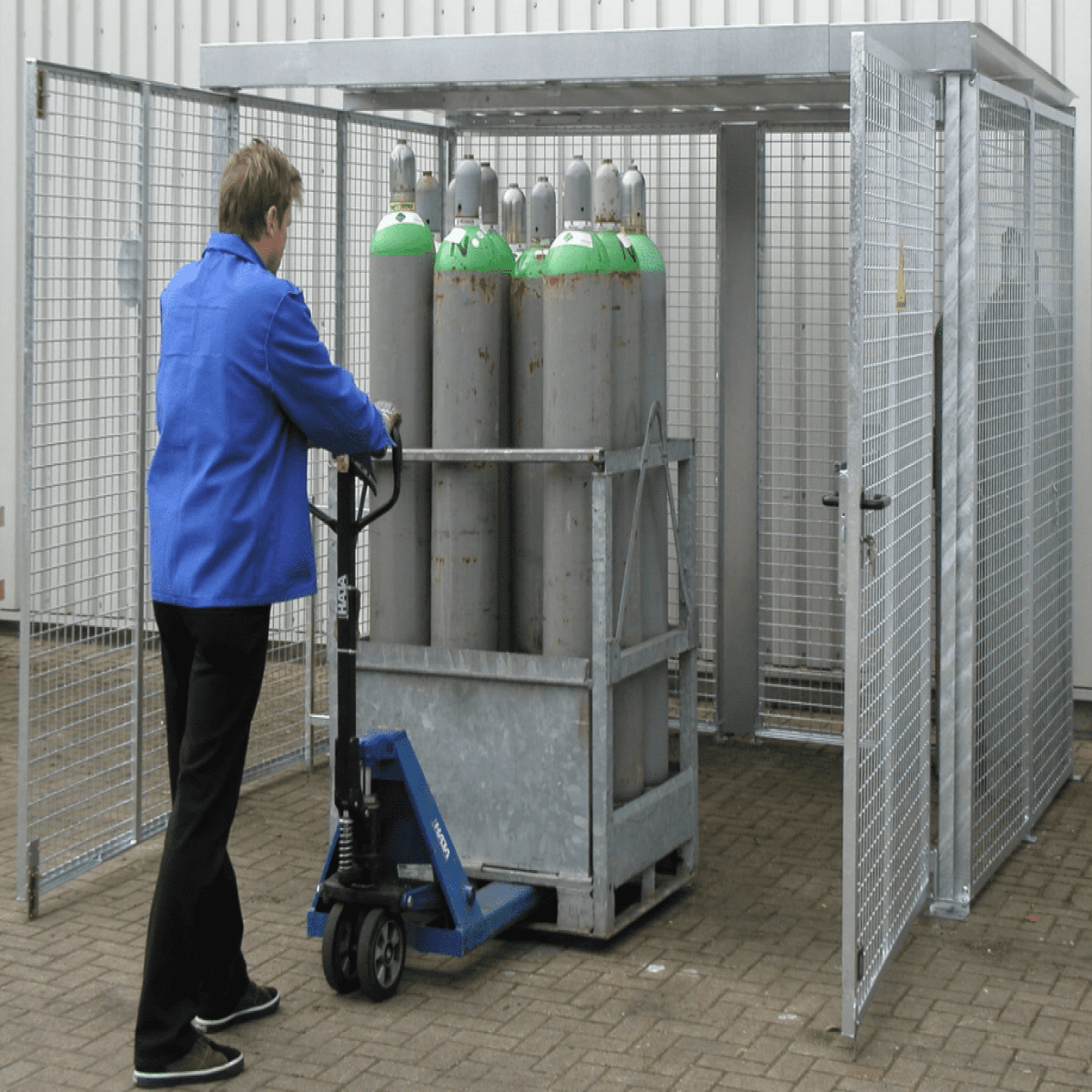

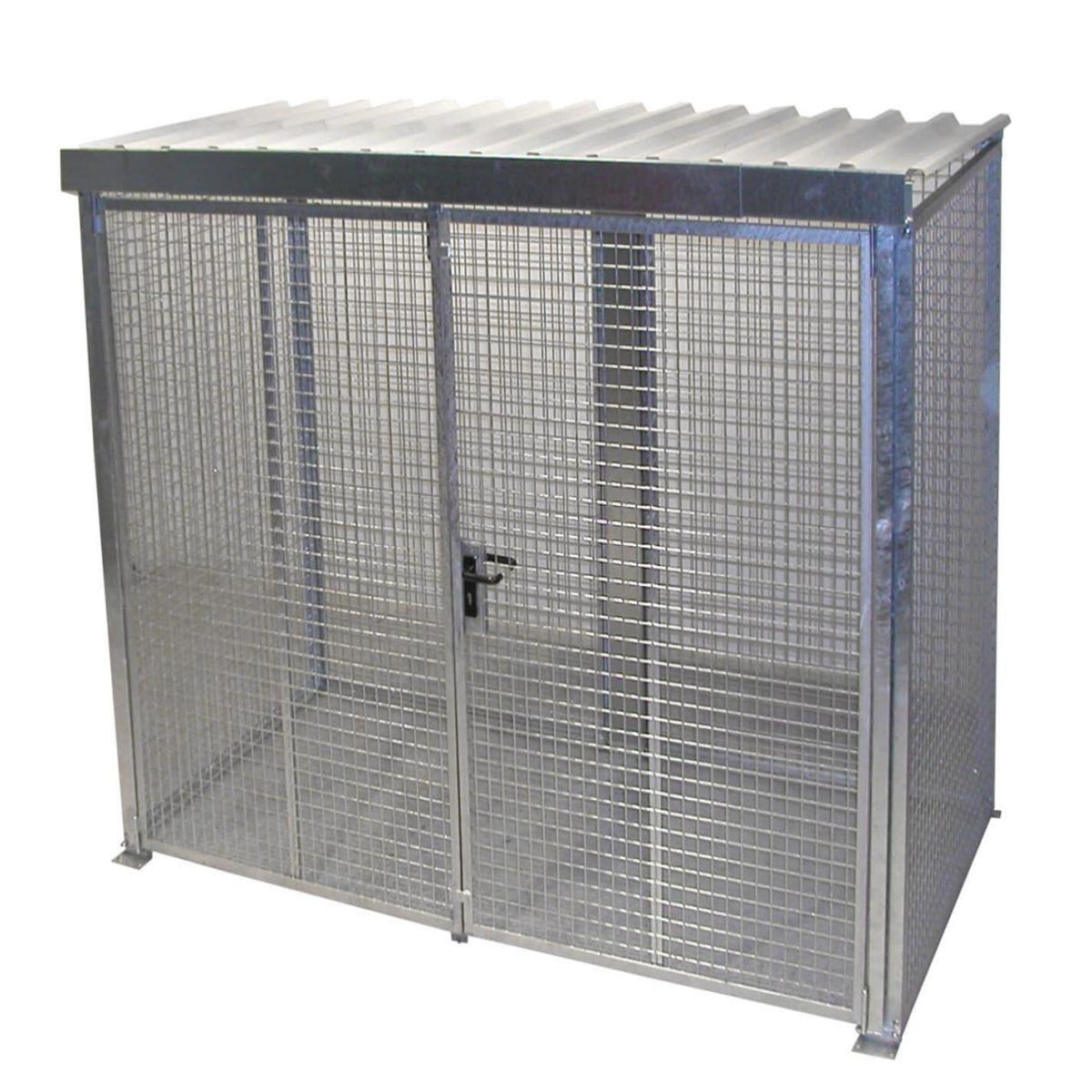

Gas Cylinder Cage with roof, providing secure and safe storage for 78 gas cylinders Ø 220 mm. Completely hot-dip galvanized, ideal for either internal or external use. Approved for gas cylinder storage in accordance with European Standards TRGS 510. Doors fitted with cylinder locks for extra security. Ground anchor points, with fixing holes, enable easy ground anchorage.
Doors
- Choice of single or double doors
- Hinged double doors, allow easy access when using gas cylinder pallets
Specifications
- Dimensions: 3100L x 1500W x 2180H (mm)
- Sturdy frame: 35 x 35 x 4 (mm)
- Mesh grid: 50 x 50 x 4.8 (mm) (welded)
- Wire: 4.8 (mm)
- Weight: 285 kg
- Hot dip galvanized finish
- Roof: Coated structured steel
- Snow load capacity: approx.75 kg/m²
- Supplied: Kit form with assembly instructions
- Ground anchor points
- Construction according to TRGS 510
Storage Capacity
- 78 gas cylinders Ø 220 mm.
Accessories available:
- Galvanized grid floor
- Support arm, with securing chain, for safe storage of standing gas cylinders
- Galvanized rack, for space saving storage of gas cylinders up to 11 kg
Delivery
- Availability 3-4 weeks
- FREE UK mainland delivery (excluding Highlands & Islands)
