Gas Cylinder Store - GB30
Secure checkout with order confirmation.
Information

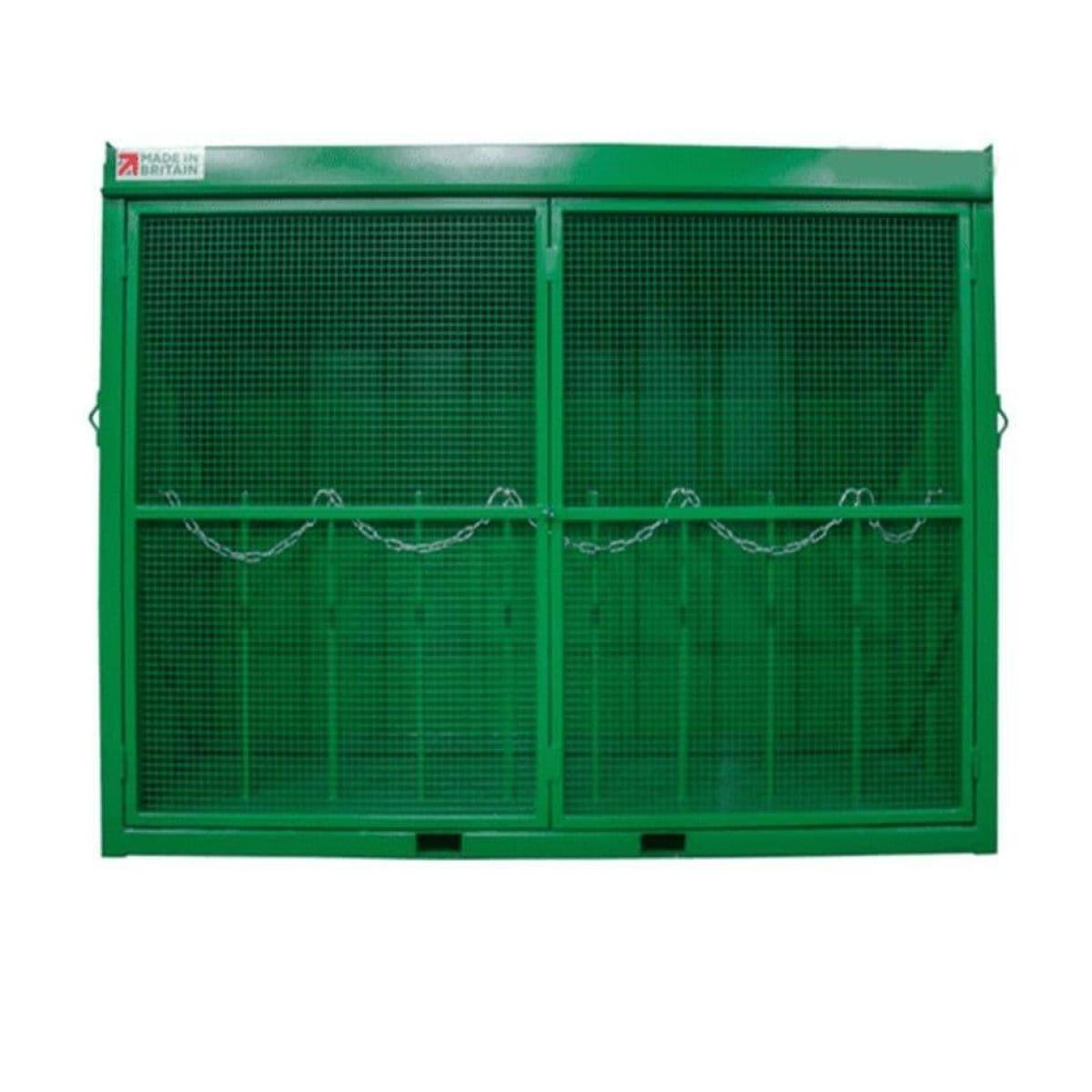

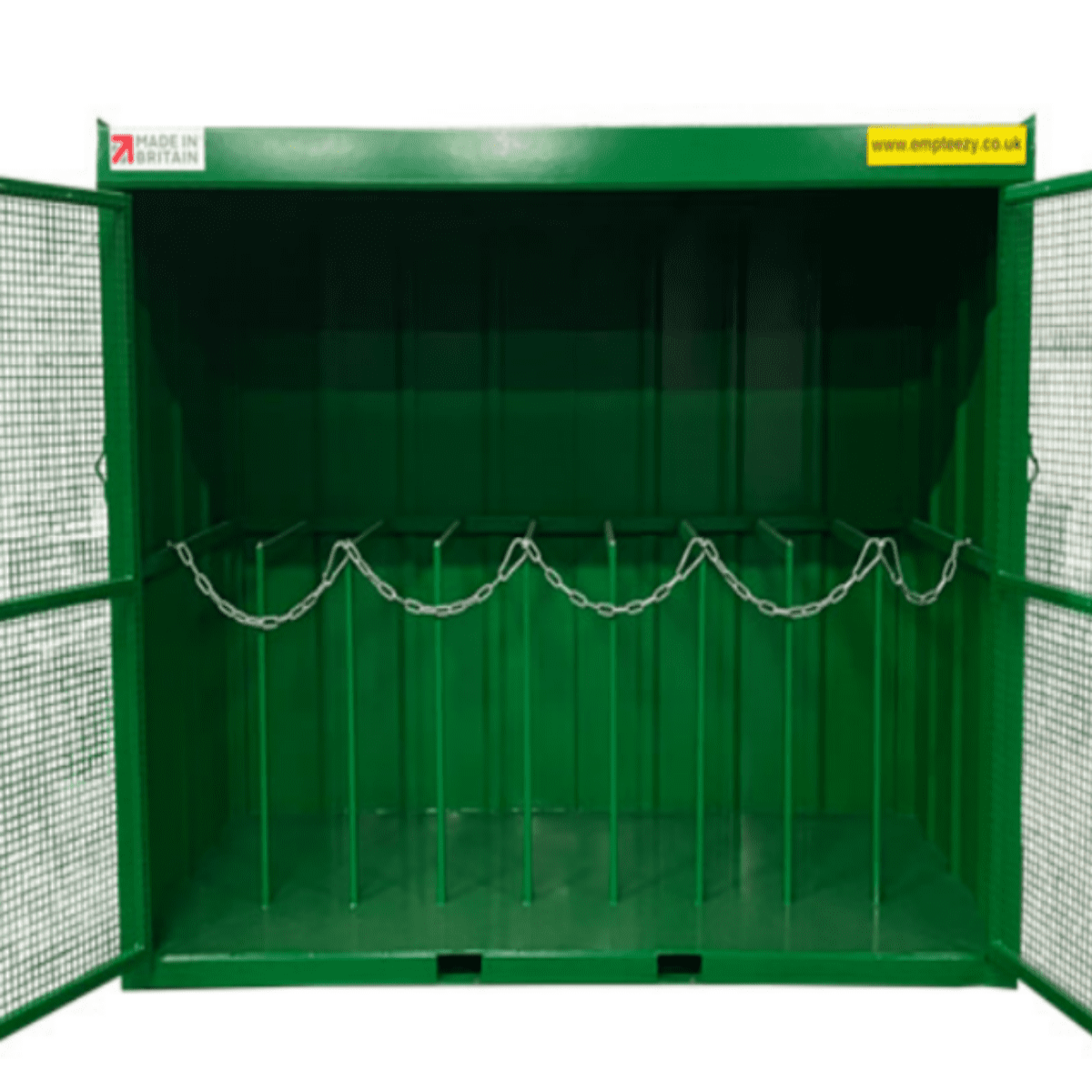

Gas Cylinder store, fully painted, with a capacity for 27 x Ø285 mm cylinders. Unit features, crane-lifting points with a maximum gross weight of 2000 kg, base plinths and a separate ramp to aid loading and unloading. Sloping roof has been fitted with bracing and fully welded around the perimeter.
Specifications
- Capacity: 27 x Ø 285 mm cylinders
- Dimensions: 3000L x 1500W x 2177H (mm)
- Weight: 550 kg
- Shot blasted & painted to approximately 100 microns
- Colour: Green RAL 6029

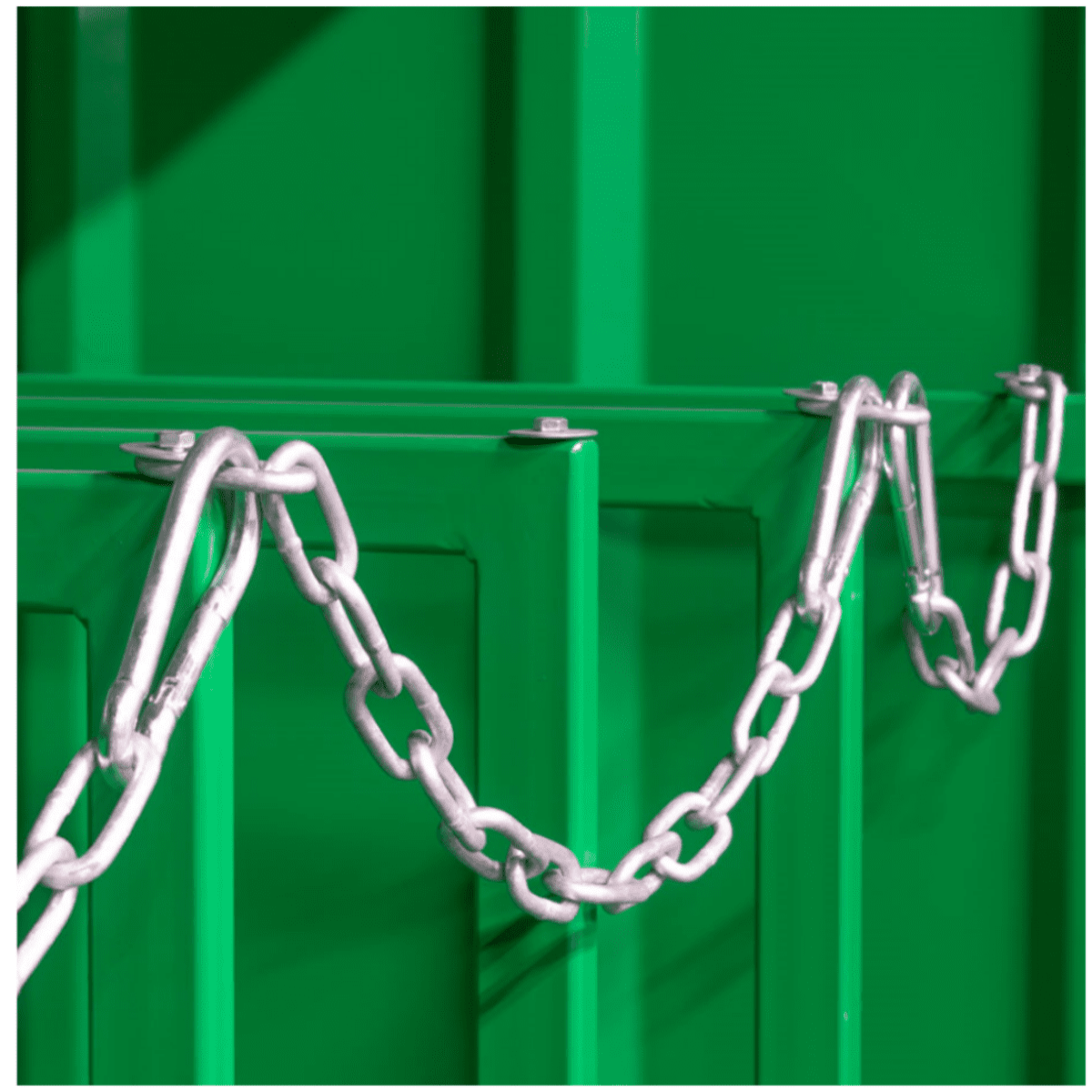

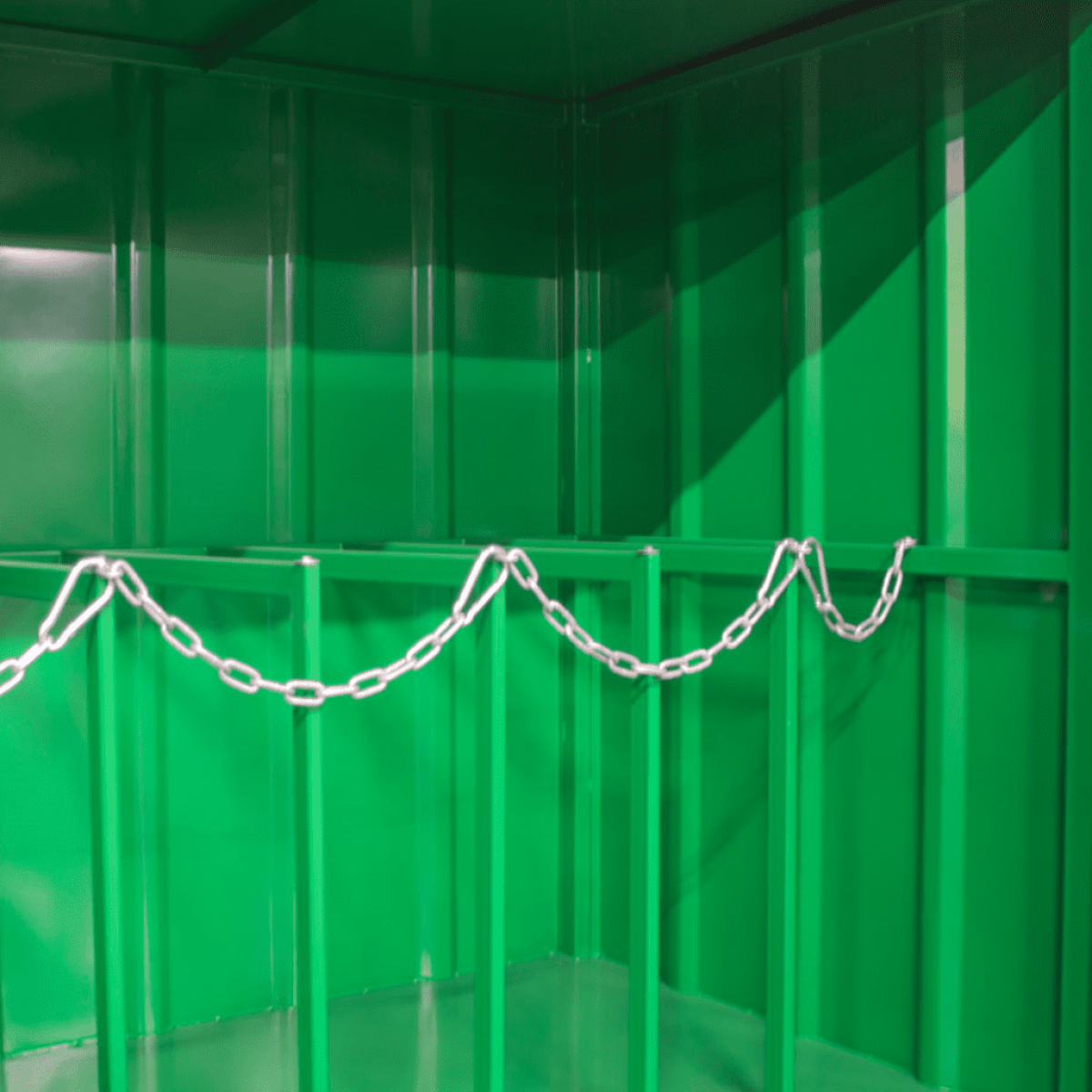

- Chains and rails provided to keep cylinders upright
- Separate ramp to aid loading /unloading
- Base of unit: Mild steel sheet, with RHS cross members and pressed ribs.
- Corner posts and mains rails are from rolled hollow section
- Rear and side panels are mild steel sheet, corrugated where needed.
PRICE & AVAILABILITY ON REQUEST
