Height Adjustable Extending Jib -Type AEJ
From £2,250.00 each ex VAT From £2,700.00 each inc VAT
Select a item required to configure your Height Adjustable Extending Jib -Type AEJ.
From £2,250.00 ex VAT From £2,700.00 inc VAT
Information

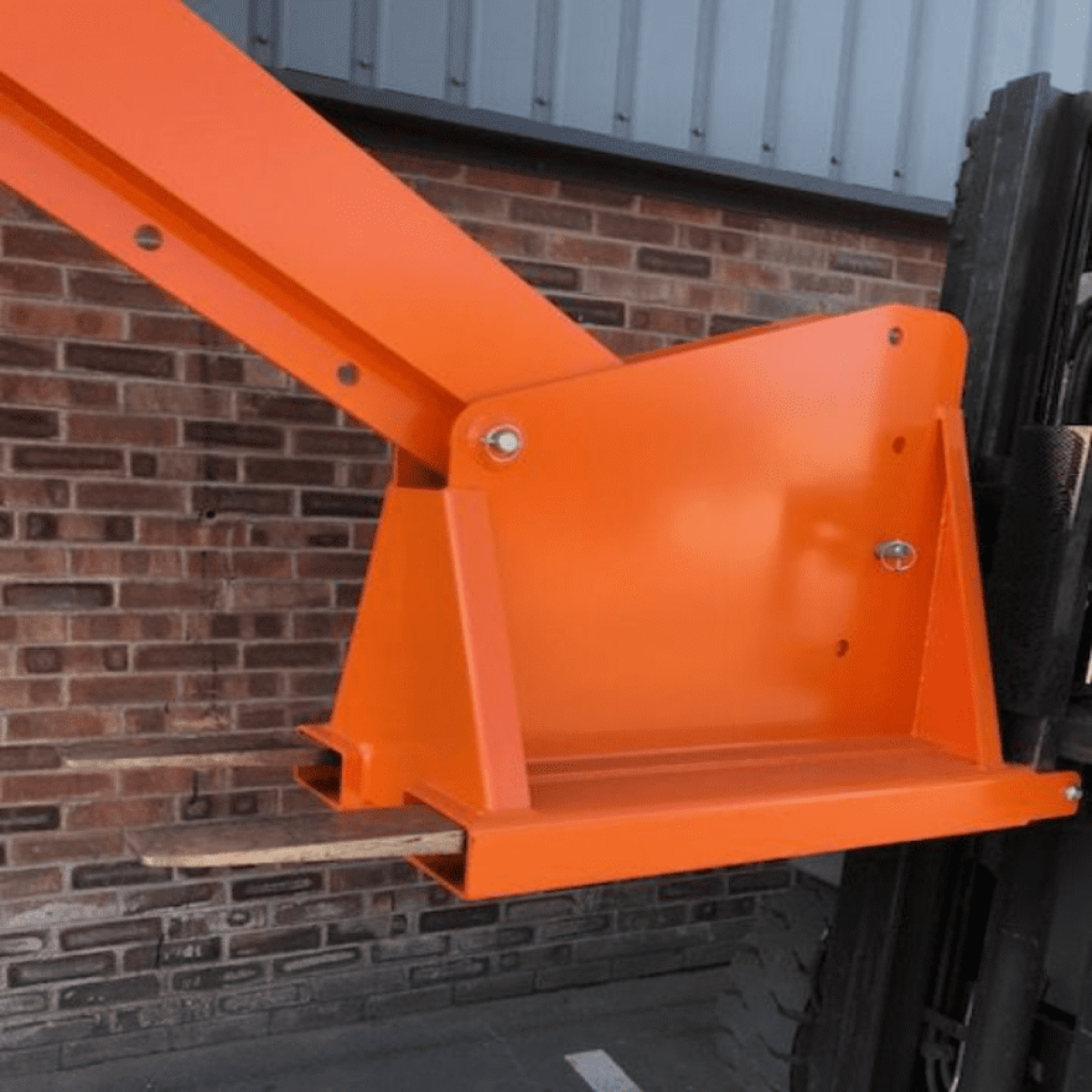

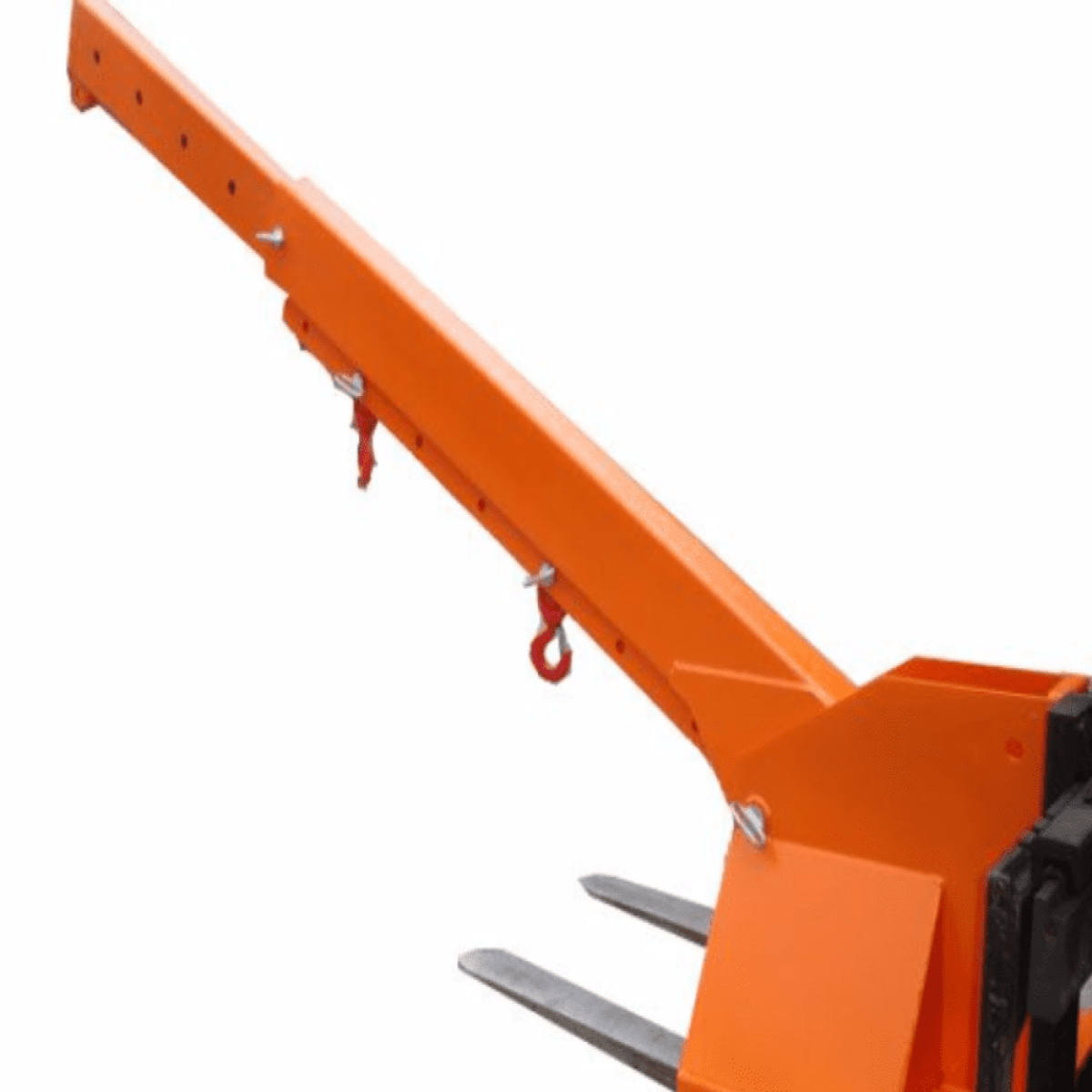

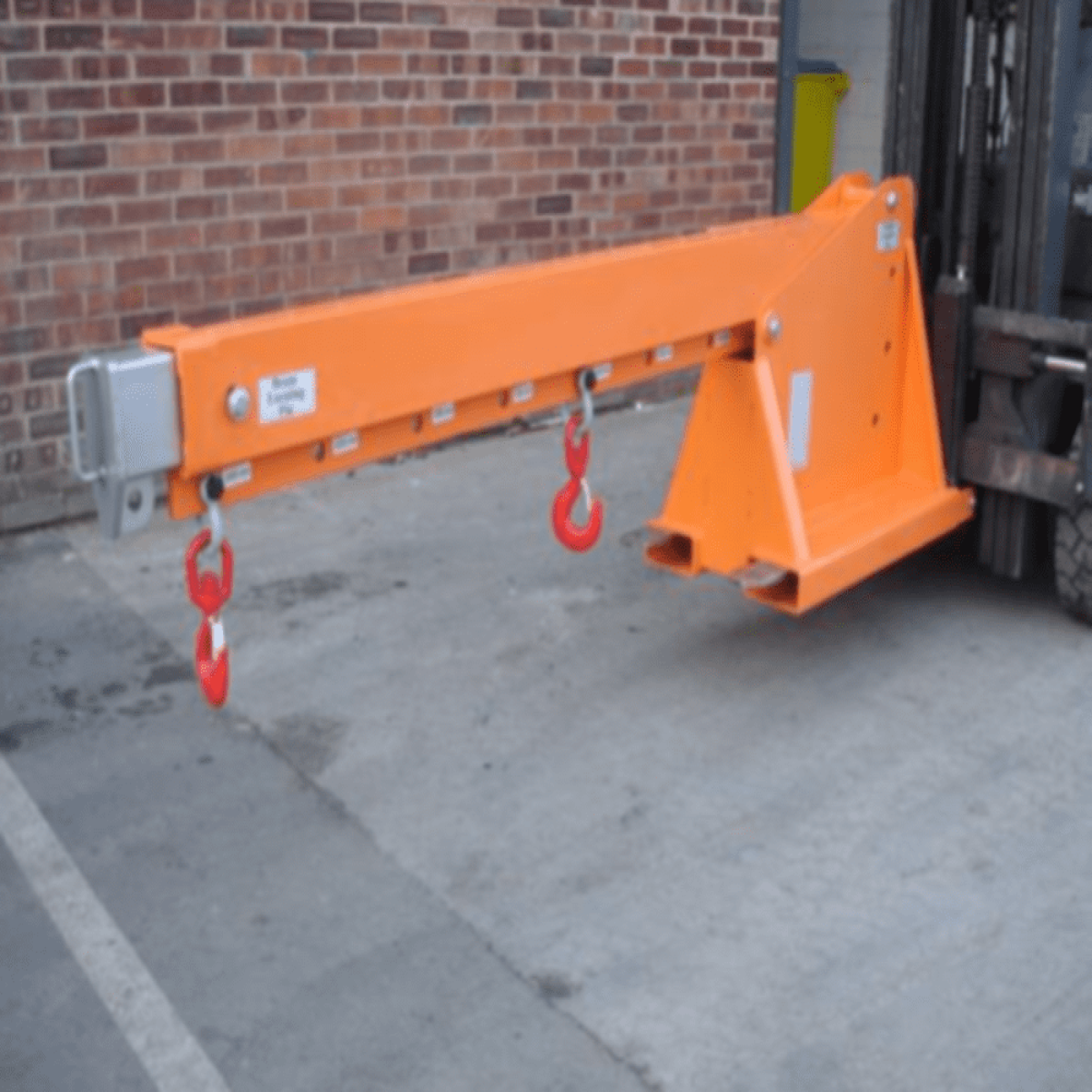

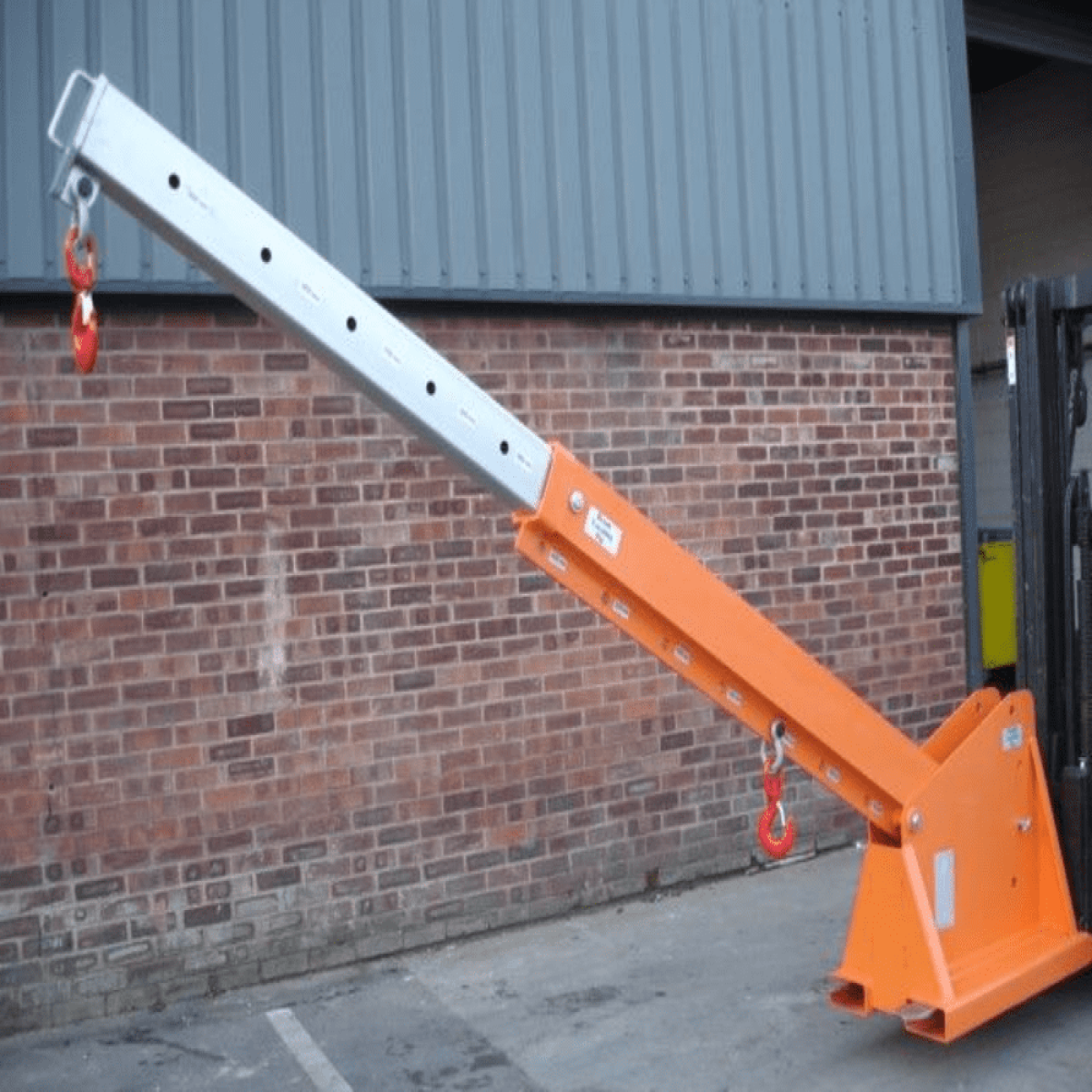

Height adjustable extending jib unit, both quick and easy to attach to the forks, converting a forklift truck into a long reach mobile crane. Fully adjustable in both height and length, offering many varied lifting options.
Standard Features
- 13 hook positions from 950 - 3850 mm load centres.
- Adjustable angled lift at o°, 15°, 30° and 45°.
- Supplied complete with 2 off swivel hooks.
- Maximum fork section 150 x 50 mm.
- Zinc plated heel pin for safe attachment to truck.
- Painted bright orange for safety.
| Size | Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | Weight |
| - | Distance (mm) | 950 | 1200 | 1450 | 1700 | 1950 | 2200 | 2450 | 2600 | 2850 | 3100 | 3350 | 3600 | 3850 | kg |
| 1 | Capacity 1000 kg | 1000 | 750 | 700 | 650 | 600 | 550 | 500 | 450 | 400 | 350 | 300 | 250 | 200 | 295 |
| 2 | Capacity 2000 kg | 2000 | 1600 | 1400 | 1250 | 1100 | 1050 | 900 | 800 | 750 | 675 | 550 | 400 | 350 | 300 |
| 3 | Capacity 3000 kg | 3000 | 2250 | 2000 | 1850 | 1650 | 1500 | 1300 | 1100 | 900 | 750 | 675 | 500 | 550 | 310 |
| 4 | Capacity 4000 kg | 4000 | 3000 | 2600 | 2300 | 1900 | 1800 | 1775 | 1475 | 1100 | 900 | 775 | 650 | 750 | 315 |
| 5 | Capacity 5000 kg | 5000 | 3500 | 2750 | 2400 | 2000 | 1900 | 1800 | 1500 | 1250 | 1100 | 1050 | 1000 | 900 | 325 |
Availability 4-5 days. FREE UK mainland delivery (excluding Highlands & Islands)
