Hydraulic Lifting Traverse for Stacking Tipper Skips Type BST-H
From £108.15 each ex VAT From £129.78 each inc VAT
Select a item required and then complete the required options to configure your Hydraulic Lifting Traverse for Stacking Tipper Skips Type BST-H.
From £108.15 ex VAT From £129.78 inc VAT
NEED ANY ASSISTANCE?
OUR EXPERT TEAM IS HERE TO HELP YOU.
CONTACT US TODAY OR CALL US ON
Information

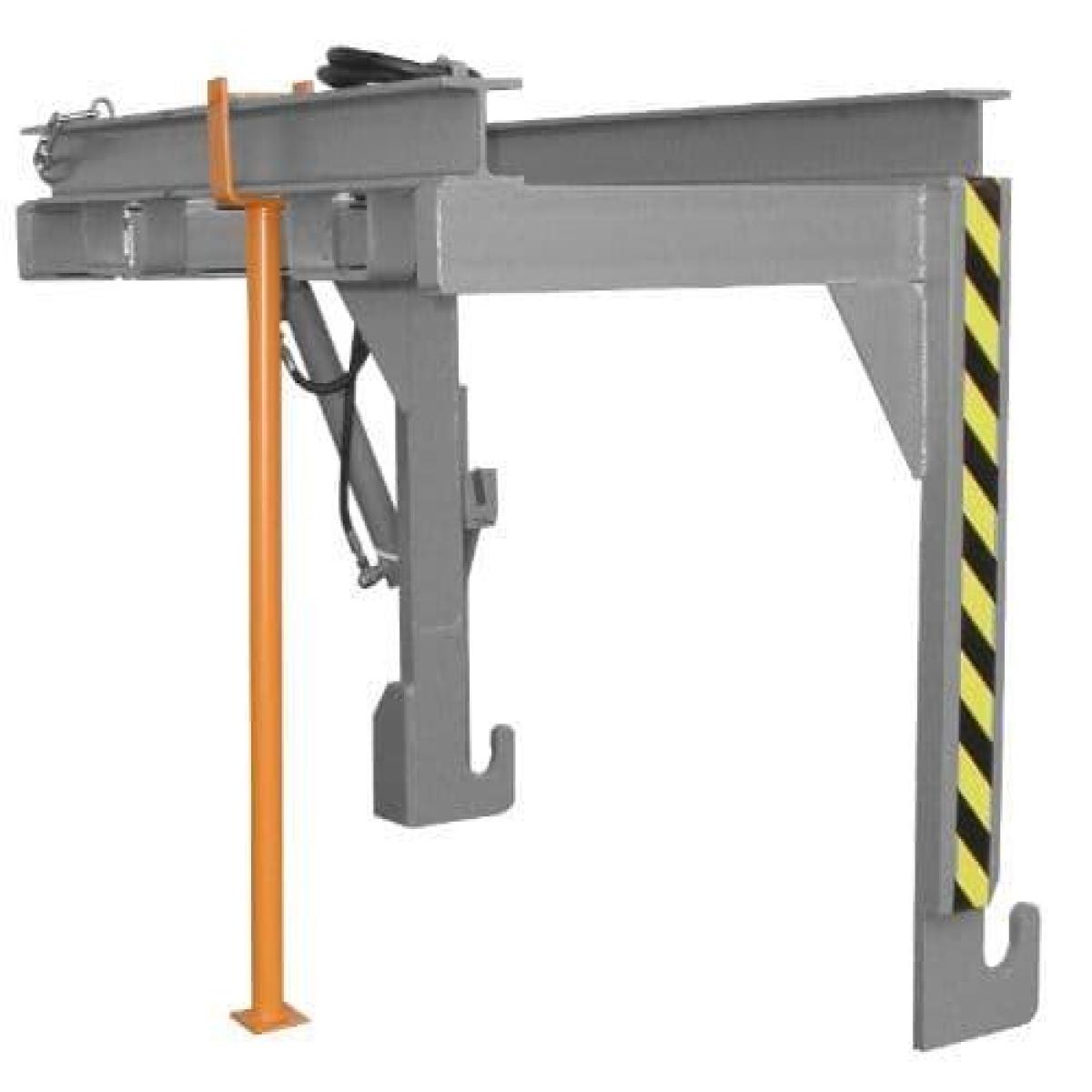

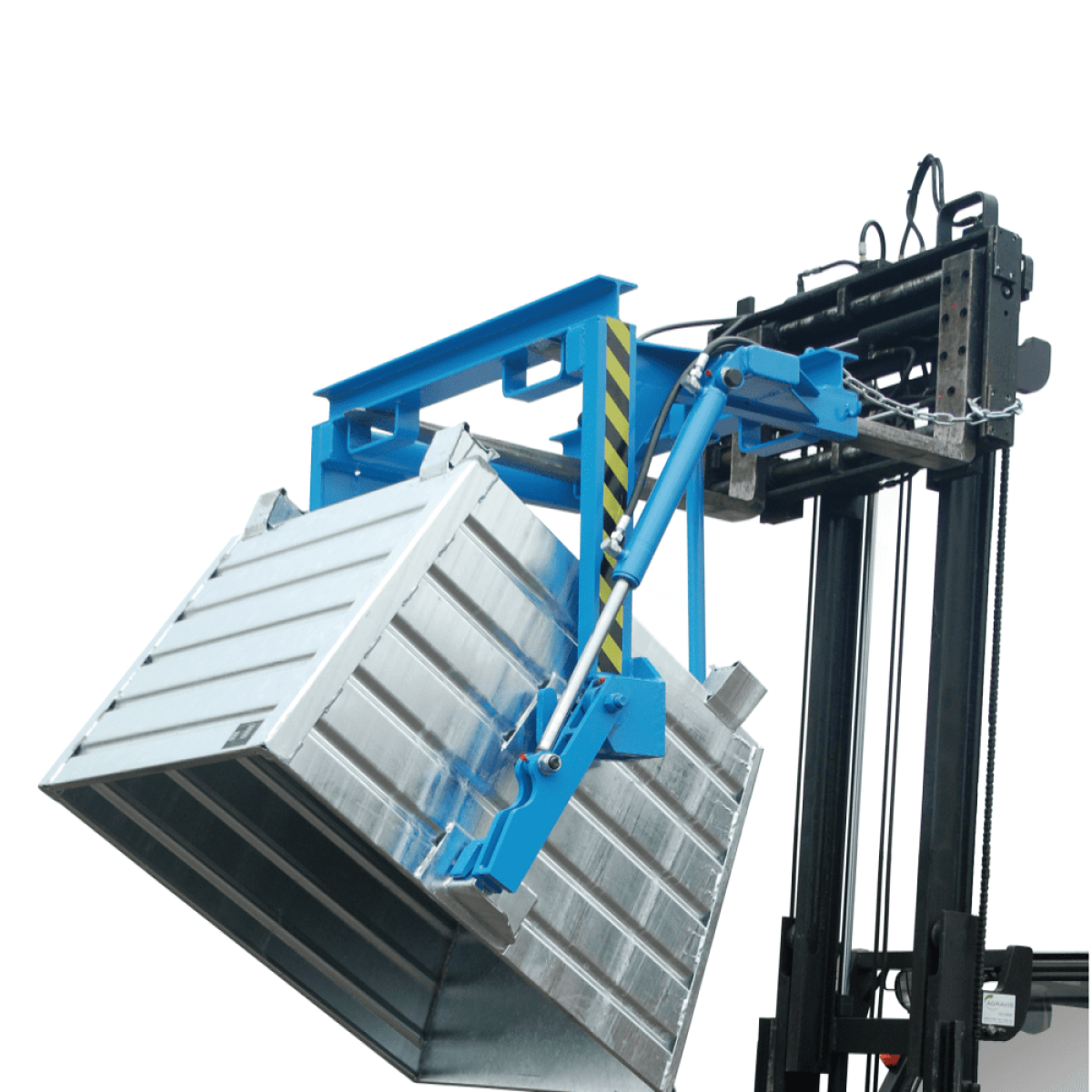

Hydraulic Lifting Traverse designed for safe, efficient, handling and emptying of stacking tippers without manual assistance. Hydraulic lifting traverse engages with the tipping stacker by means of hooks on the arms of the unit, once engaged all operations can be carried out from the safety of driver's seat. Hydraulics control tipping operations, making the emptying of containers smooth and jerk free.To ensure safety a chain is provided to prevent the traverse slipping. Traverse Stand type TS is available as an accessory, this unit supports the traverse in an upright position when not in use and simplifies connection to the forks of the fork-lift truck.
Part No | Tipper Volume m³ | Dimensions L x D x H (mm) | Load Cap | Weight kg |
BST-H 30 | 0.30 | 960 x 860 x 7155 | 500 kg | 126 |
BST-H 55 | 0.55 | 960 x 1060 x 835 | 1000 | 135 |
BST-H 70 | 0.70 | 960 x 1060 x 835 | 1500 | 135 |
BST-H 90 | 0.90 | 960 x 1260 x 895 | 2000 | 140 |
BST-H 150 | 1.50 | 960 x 1700 x 895 | 2000 | 211 |
BST-H 200 | 2.00 | 960 x 2260 x 895 | 2000 | 218 |
Fork Sleeve Inside Dimensions (mm)
Type | A | B | C |
BST-H 30 | 110 | 200 | 80 |
BST-H 55-70 | 250 | 200 | 80 |
BST-H 90-150 | 450 | 200 | 80 |
BST-H 200 | 590 | 200 | 80 |
Colour choice
Delivered complete with 'CE' Certificate, EG conformity statement and full operating instructions
Free UK mainland delivery 5-6 weeks (excluding Highlands & Islands)
