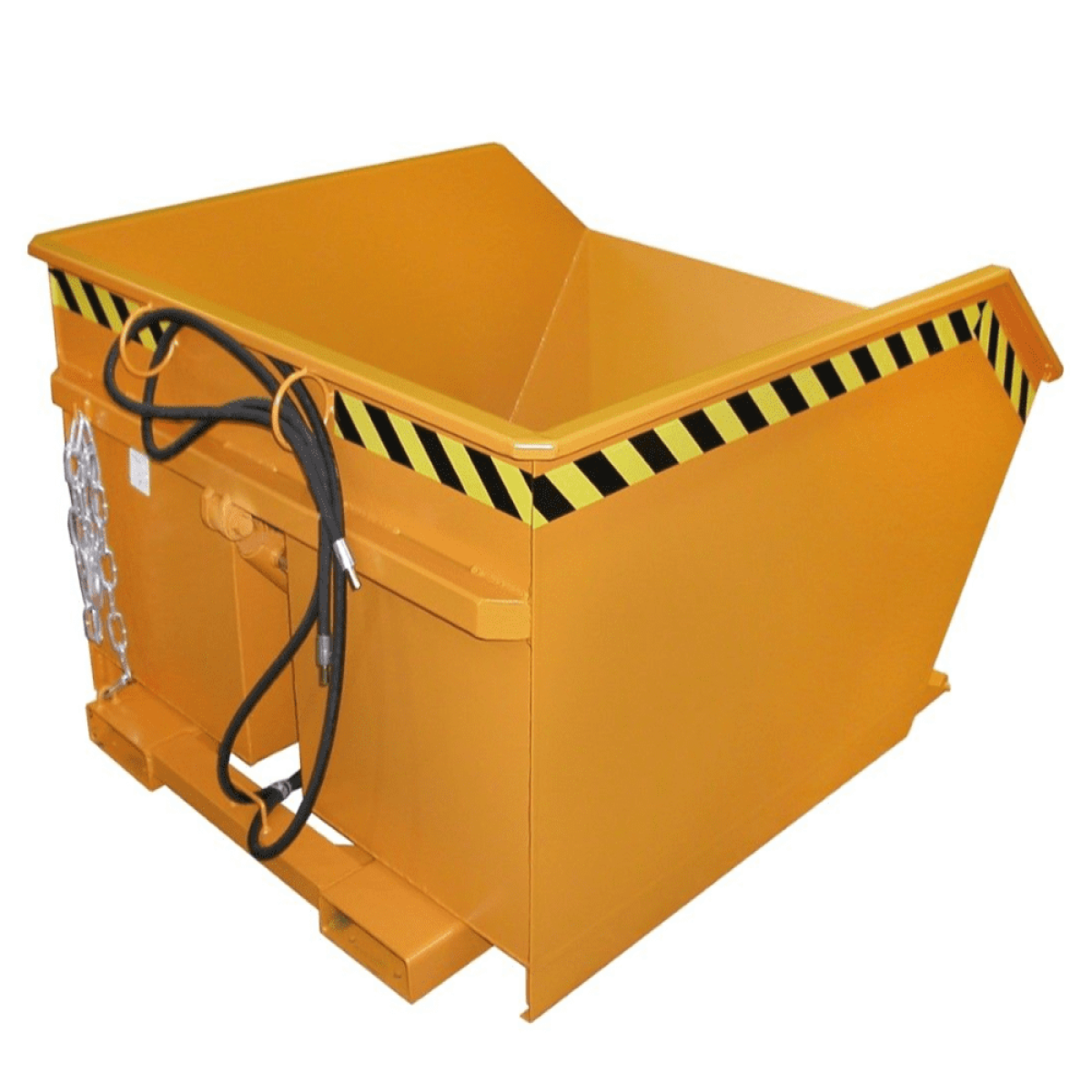

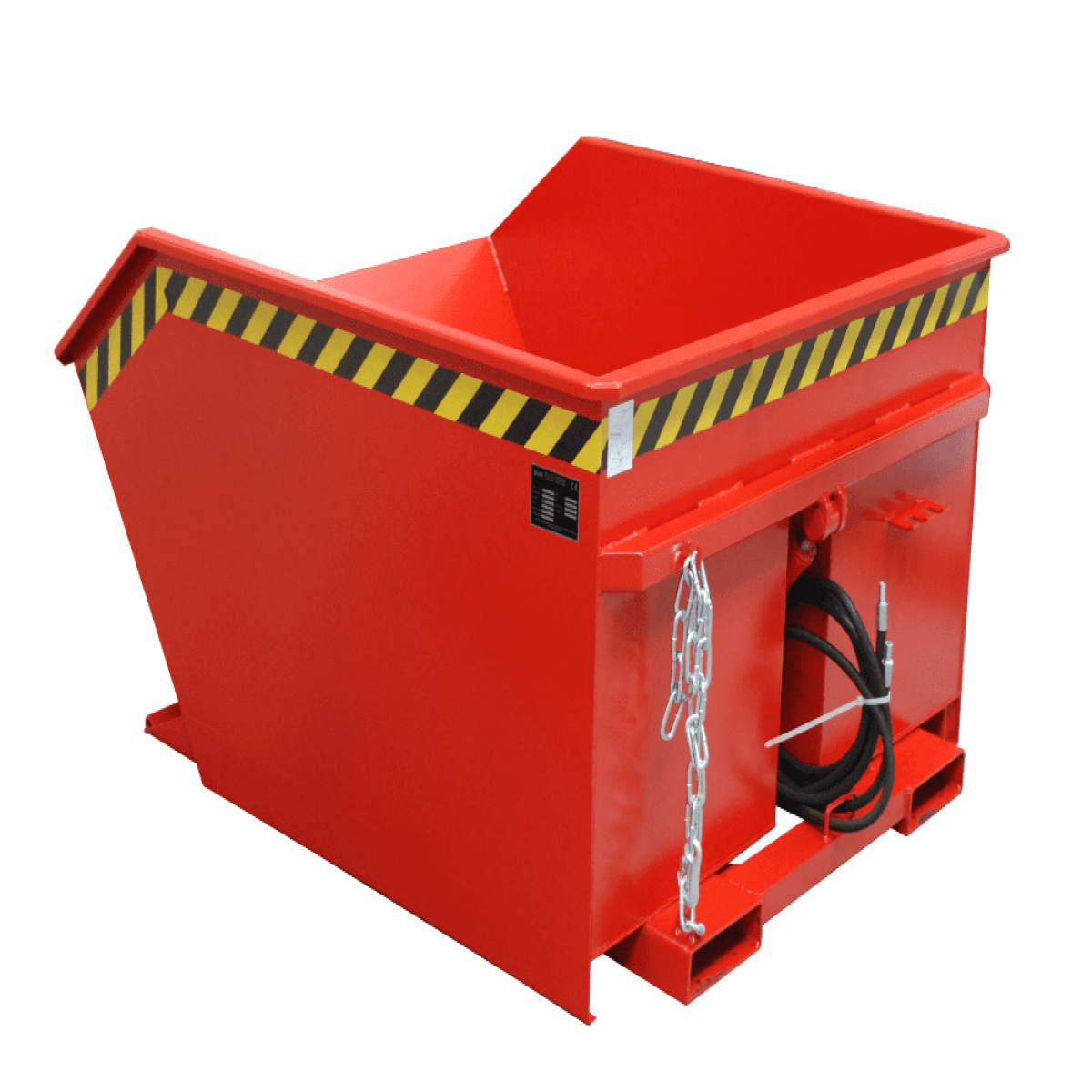

Hydraulic Low Level Tipping Skip Type GU-H
- Volume options from 0.30 to 2.00 m³
- Safe working loads from 750 to 1,500 kg, model dependent

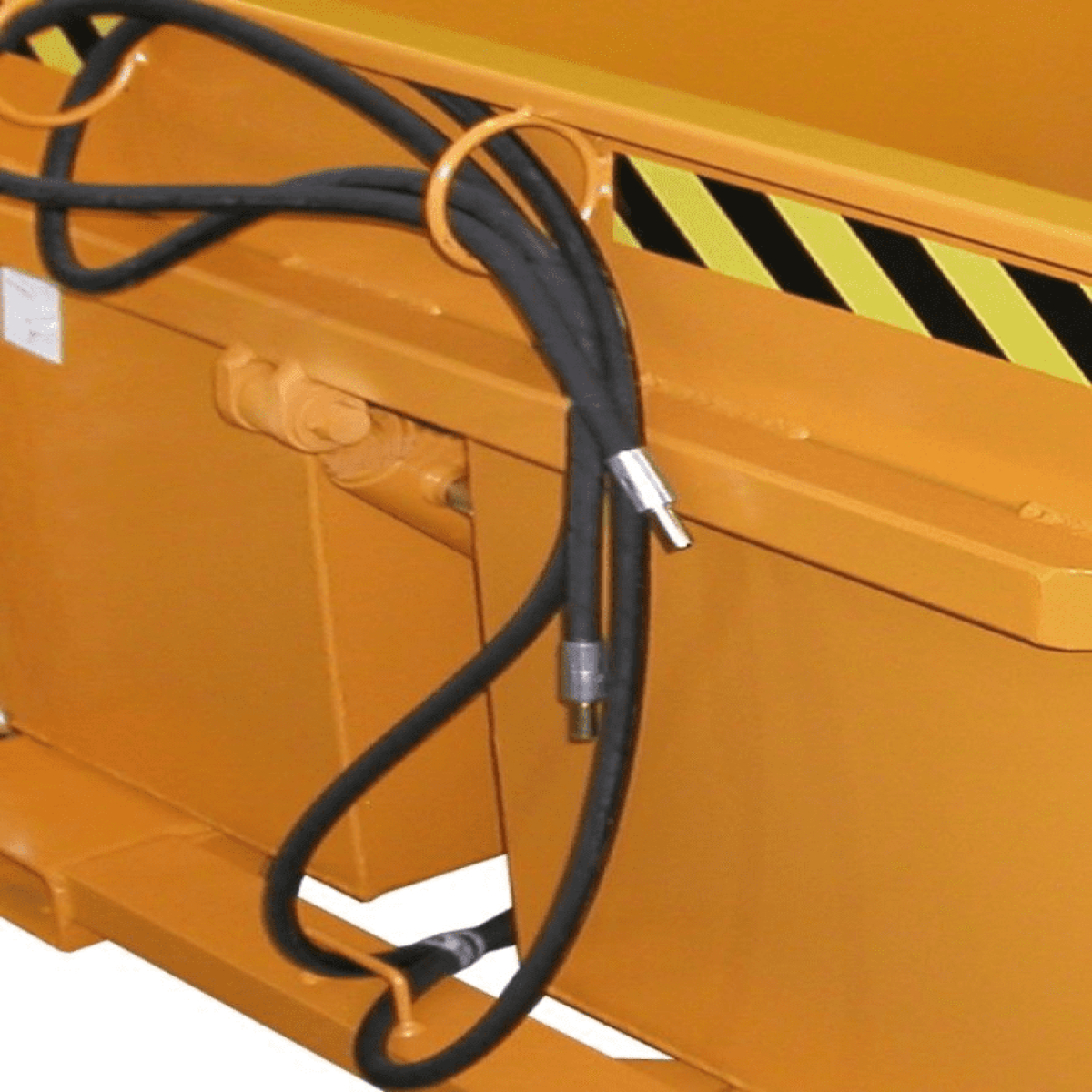

- Hydraulic cylinders and tubing included; connecting couplings excluded
- Optional galvanised lid and oil- and watertight version
From £1,859.55 each ex VAT From £2,231.46 each inc VAT
Select a add to cart and then complete the required options to configure your Hydraulic Low Level Tipping Skip Type GU-H.
From £1,859.55 ex VAT From £2,231.46 inc VAT
NEED ANY ASSISTANCE?
OUR EXPERT TEAM IS HERE TO HELP YOU.
CONTACT US TODAY OR CALL US ON
Information
The GU-H model of the Hydraulic Low-Level Tipping Skip has been designed to collect, transport and dispose of waste in a manufacturing environment. Due to its hydraulic tipping system, the skip is easy to empty. This device is built strong enough to serve in the conditions of industrial activity. It is a useful tool to manage production waste and maintain a clean and organized working environment.
Note: This product is a non-standard item and will be manufactured exclusively for you. Therefore, the product cannot be returned.
| Type | Volume | Dimensions | SWL | Weight |
| - | m³ | L x W x H (mm) | kg | kg |
| GU 300-H | 0.30 | 1440 x 680 x 580 | 750 | 108 |
| GU 500-H | 0.50 | 1440 x 780 x 680 | 1000 | 121 |
| GU 750-H | 0.75 | 1440 x 1280 x 680 | 1000 | 156 |
| GU 1000-H | 1.00 | 1640 x 1280 x 780 | 1500 | 184 |
| GU 1500-H | 1.50 | 1640 x 1280 x 1090 | 1500 | 215 |
| GU 2000-H | 2.00 | 1640 x 1680 x 1090 | 1500 | 246 |
Accessories
- Set of Castors: 2 x polyamide castors Ø 180 mm + 2 x swivel castors one of which is braked. Increases overall height 220
- Galvanized lid which can be opened either side.
- Oil and watertight model.
Fork pocket dimensions (mm)
GU 300 A=12 B=200 C=60
GU 500 A=150 B=200 C=60
GU 750/2000 A=495 B=200 C=60
Colour Choice
Supplied complete with 'CE' Certificate, EG conformity statement and full operating instructions
FREE UK mainland delivery 5-6 weeks (excluding Highlands & Islands)
