Lifting Traverse for StackMaster Tipping Skip - Type BST
From £112.35 each ex VAT From £134.82 each inc VAT
Select a traverse required and then complete the required options to configure your Lifting Traverse for StackMaster Tipping Skip - Type BST.
From £112.35 ex VAT From £134.82 inc VAT
NEED ANY ASSISTANCE?
OUR EXPERT TEAM IS HERE TO HELP YOU.
CONTACT US TODAY OR CALL US ON
Information

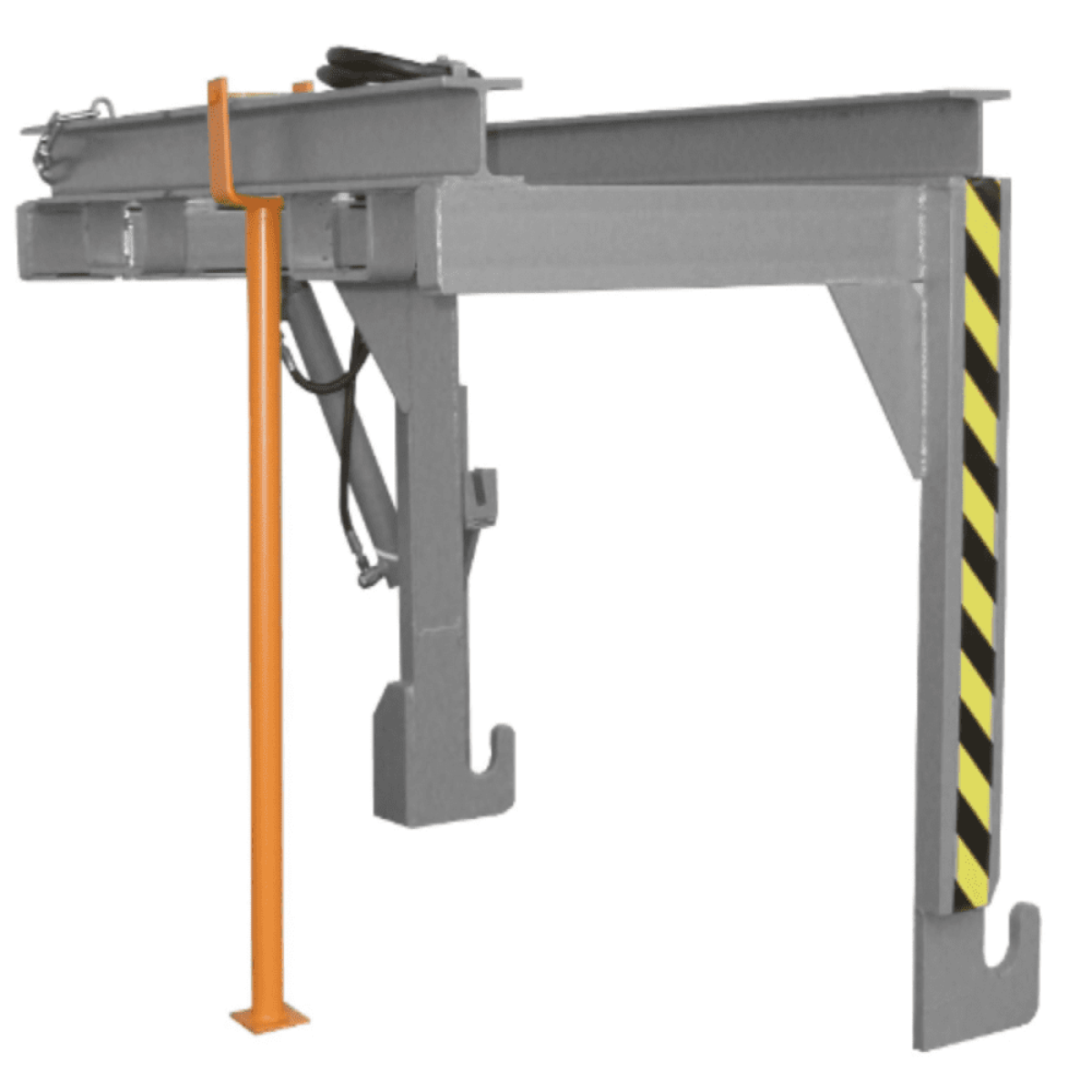

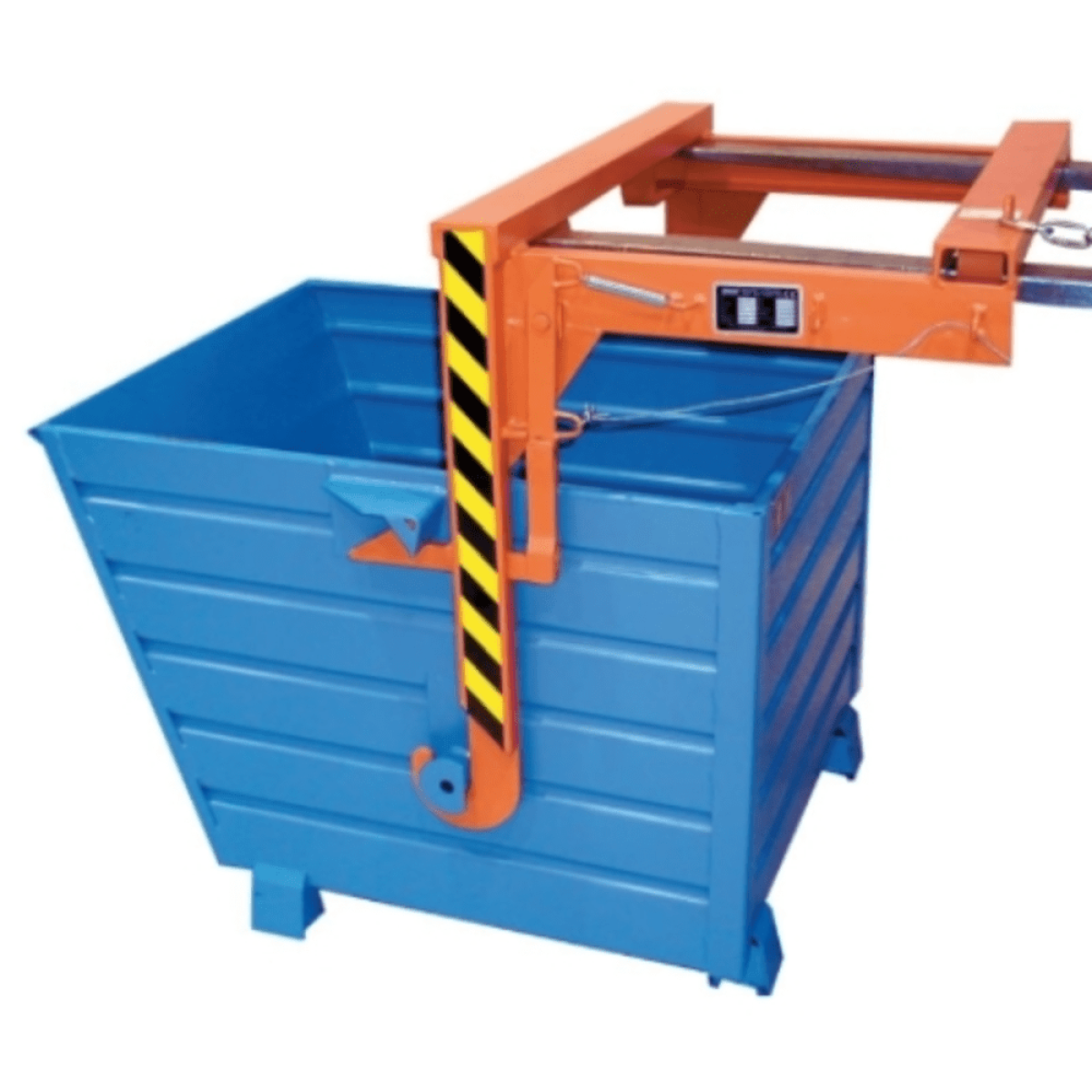

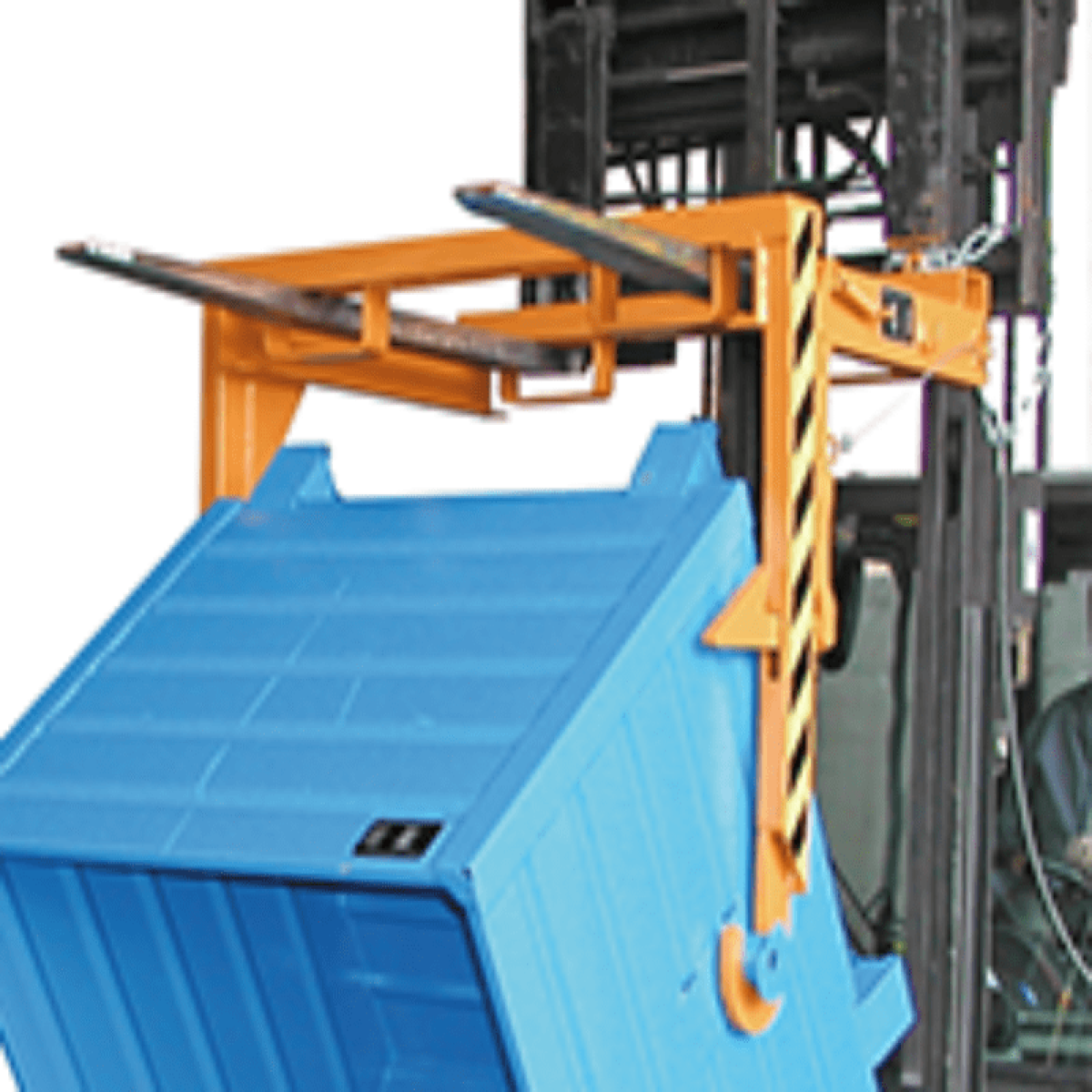

Lifting Traverse designed for safe, efficient, handling and emptying of stacking tippers without manual assistance. The lifting traverse engages with the tipping stacker by means of hooks on the arms of the unit, once engaged all operations can be carried out from the safety of driver's seat. A safety chain is provided to prevent the traverse slipping.
A Traverse Stand type TS is available as an accessory, this unit supports the traverse in an upright position when not in use and simplifies connection to the forks of the fork-lift truck.
Part No | Tipper Volume m³ | Dimensions L x D x H (mm) | Load Cap | Weight |
BST 30 | 0.30 | 960 x 730 x 715 | 500 kg | 73 kg |
BST 55 | 0.55 | 960 x 930 x 835 | 1000 | 80 |
BST 70 | 0.70 | 960 x 930 x 835 | 1500 | 80 |
BST 90 | 0.90 | 960 x 1130 x 895 | 2000 | 85 |
BST 150 | 1.50 | 960 x 1630 x 895 | 2000 | 156 |
BST 200 | 2.00 | 960 x 2130 x 895 | 2000 | 173 |
Fork Sleeve Inside Dimensions (mm)
Type | A | B | C |
BST 30 | 110 | 200 | 80 |
BST 55-70 | 250 | 200 | 80 |
BST 90-150 | 450 | 200 | 80 |
BST 200 | 590 | 200 | 80 |
Colour choice
Supplied complete with 'CE' Certificate, EG conformity statement and full operating instructions
FREE UK mainland delivery 5-6 weeks (excluding Highlands & Islands)
