Low Level Tipping Skip. Type GU
From £1,050.00 each ex VAT From £1,260.00 each inc VAT
Select a item required and then complete the required options to configure your Low Level Tipping Skip. Type GU.
From £1,050.00 ex VAT From £1,260.00 inc VAT
Information

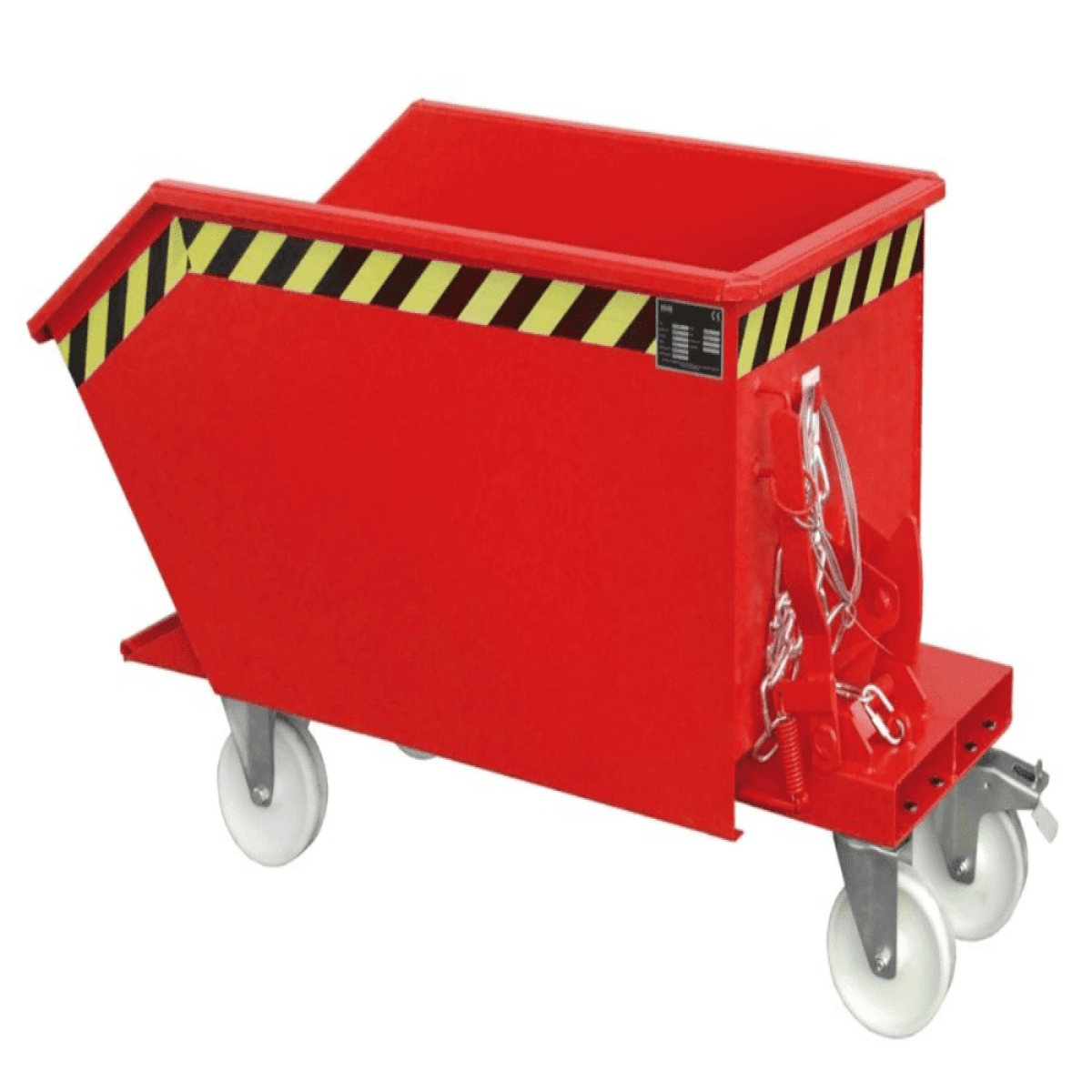

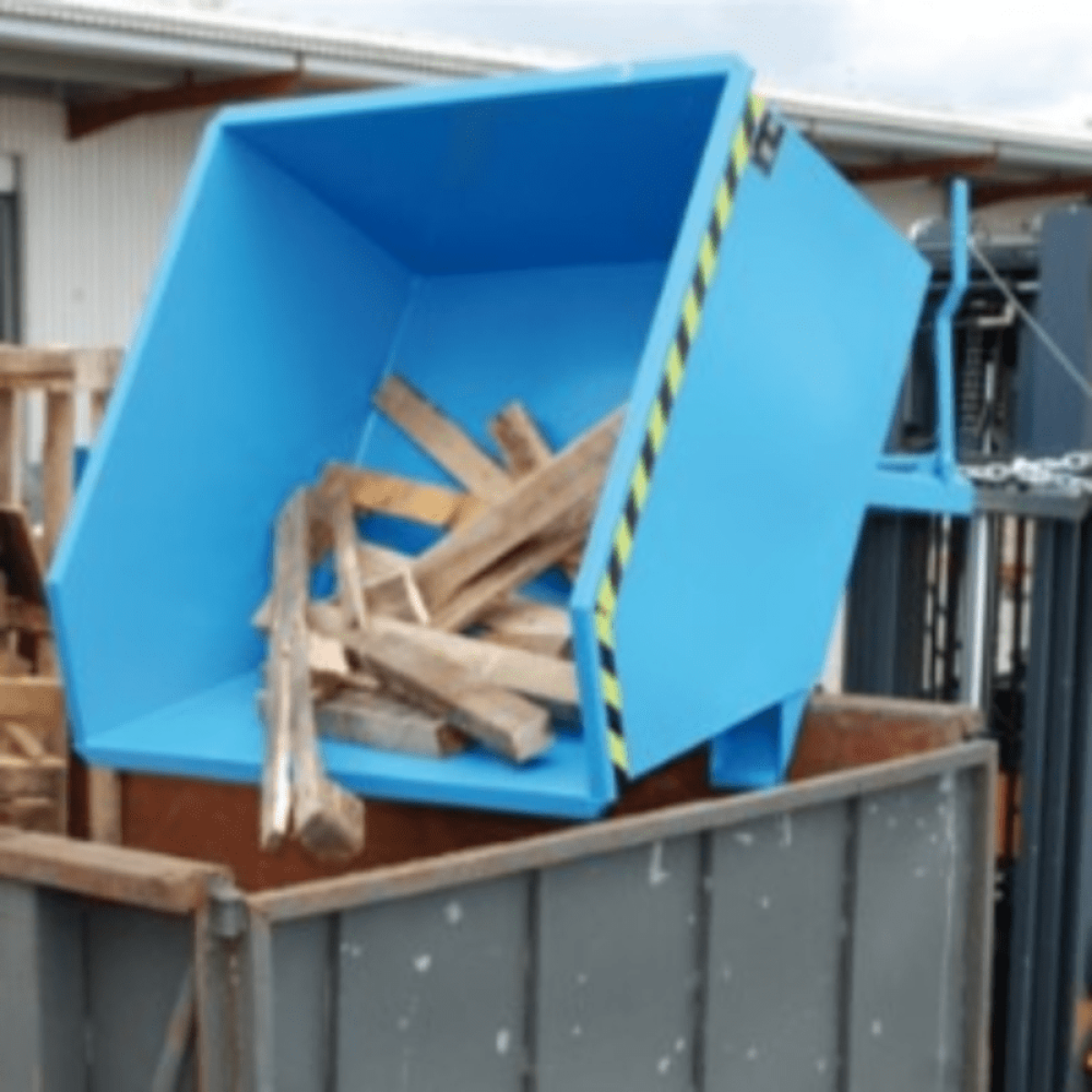

Small Low Profile Tipping Skip the low height making them ideal to collect production waste directly from lathes, power presses etc.position at the end of a conveyor or manufacturing line to collect bi-products or waste materials. Unit can be emptied at any height by cable operated from the forklift drivers seat. To prevent slipping and unintentional tilting, the units can be secured with the safety chain supplied. Quick and easy to use with the tilting mechanism, once triggered, the skip tilts forward - securely latched when lowered and placed on the floor again.
| Type | Volume | Dimensions | SWL | Weight |
| - | m³ | L x W x H (mm) | kg | kg |
| GU 300 | 0.30 | 1440 x 680 x 580 | 750 | 108 |
| GU 500 | 0.50 | 1440 x 780 x 680 | 1000 | 121 |
| GU 750 | 0.75 | 1440 x 1280 x 680 | 1000 | 156 |
| GU 1000 | 1.00 | 1640 x 1280 x 1090 | 1500 | 184 |
| GU 1500 | 1.50 | 1640 x 1280 x 1090 | 1500 | 215 |
| GU 2000 | 2.00 | 1640 x 1680 x 1090 | 1500 | 246 |
Accessories

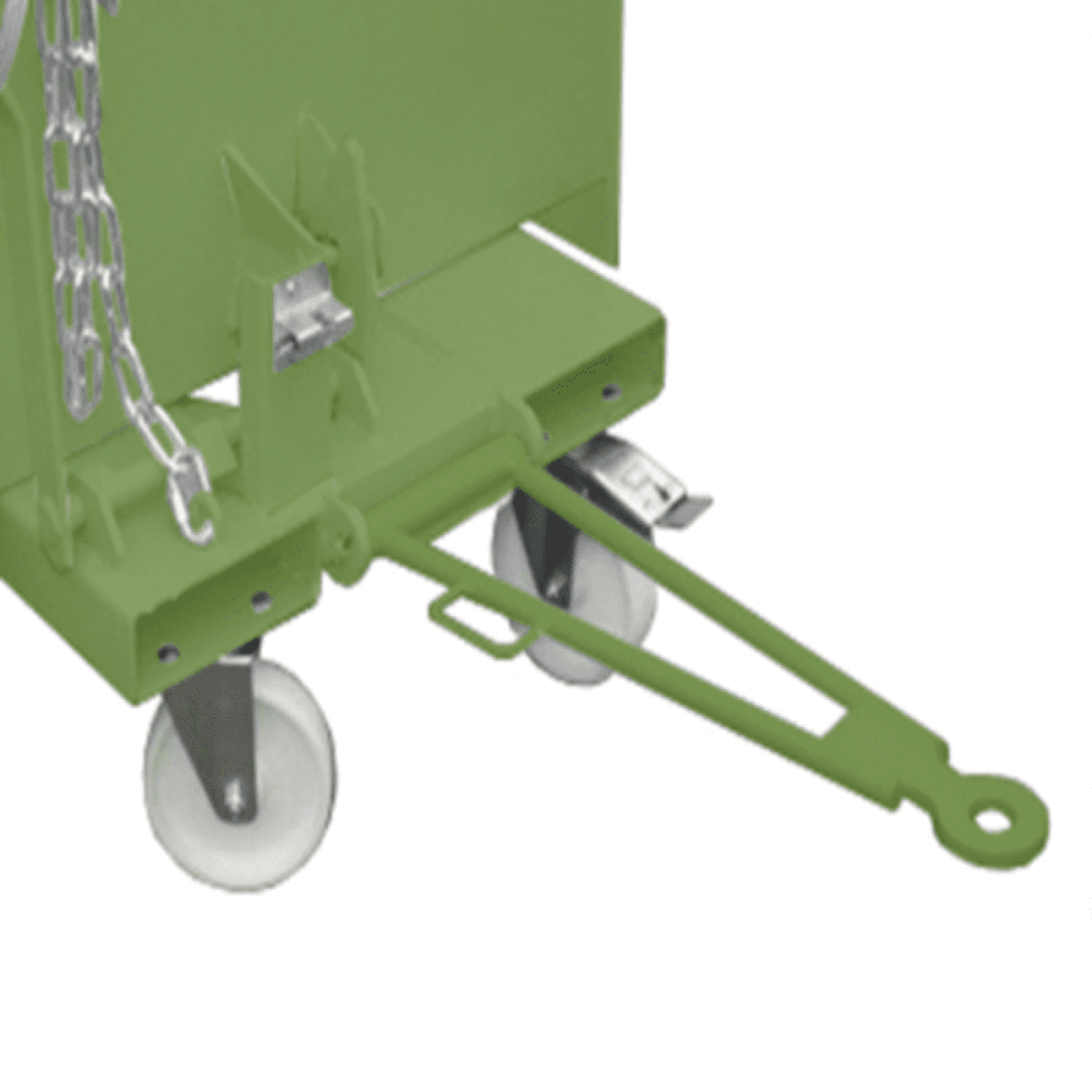

- Set of Castors: 2 x polyamide castors Ø 180 mm + 2 x swivel castors one of which is braked. Increases overall height 220
- Galvanized lid which can be opened either side.
- Oil and watertight model.
Fork pocket dimensions (mm)
GU 300 A=12 B=200 C=60
GU 500 A=150 B=200 C=60
GU 750/2000 A=495 B=200 C=60
Colour Choice
Supplied complete with 'CE' Certificate, EG conformity statement and full operating instructions
FREE UK mainland delivery 3-4 weeks (excluding Highlands & Islands)
