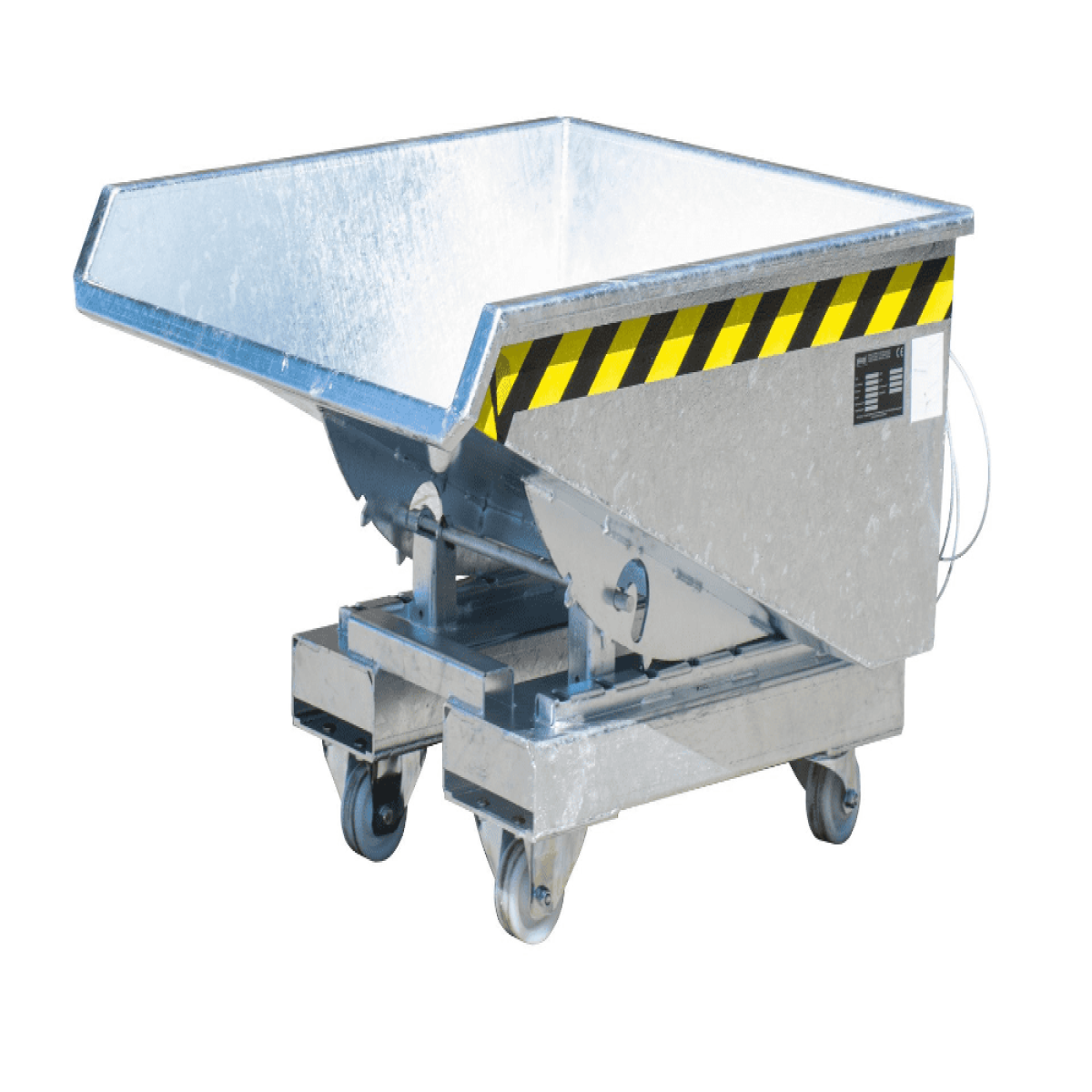

Mini Swarf Tipping Container EXPO-E
From £988.05 each ex VAT From £1,185.66 each inc VAT
Select a item required and then complete the required options to configure your Mini Swarf Tipping Container EXPO-E.
From £988.05 ex VAT From £1,185.66 inc VAT
NEED ANY ASSISTANCE?
OUR EXPERT TEAM IS HERE TO HELP YOU.
CONTACT US TODAY OR CALL US ON
Information

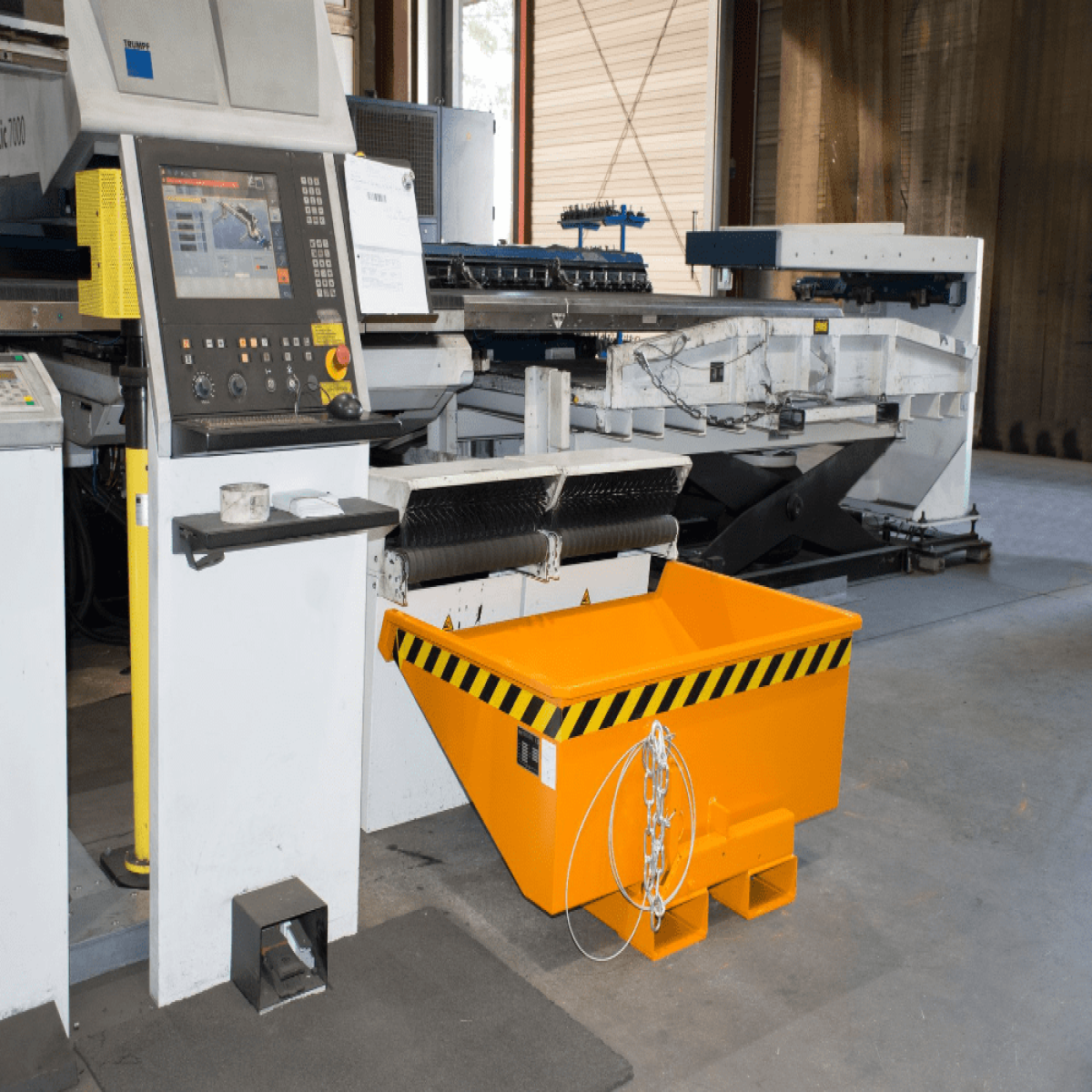

Mini Swarf Tipping Container, with extremely low construction height, ideal for placing under machinery.
Available with or without castors, units feature a perforated sieve and drain tap for easy liquid removal. Ideal skip for collecting metal shavings, swarf and industrial waste fed by conveyor systems.

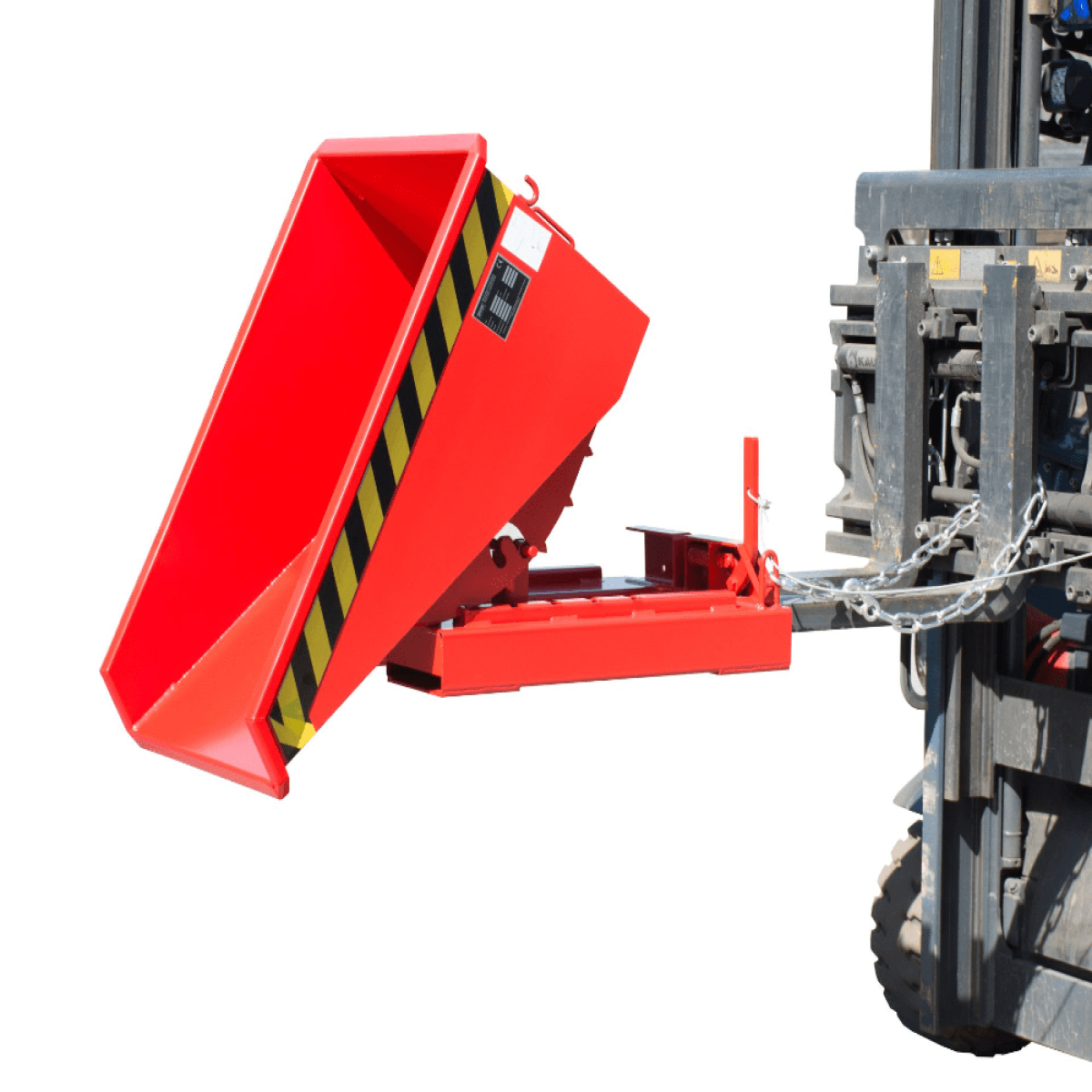

- Can be emptied at any height by cable operated from the driver's seat
- smooth rolling mechanism for easy tipping

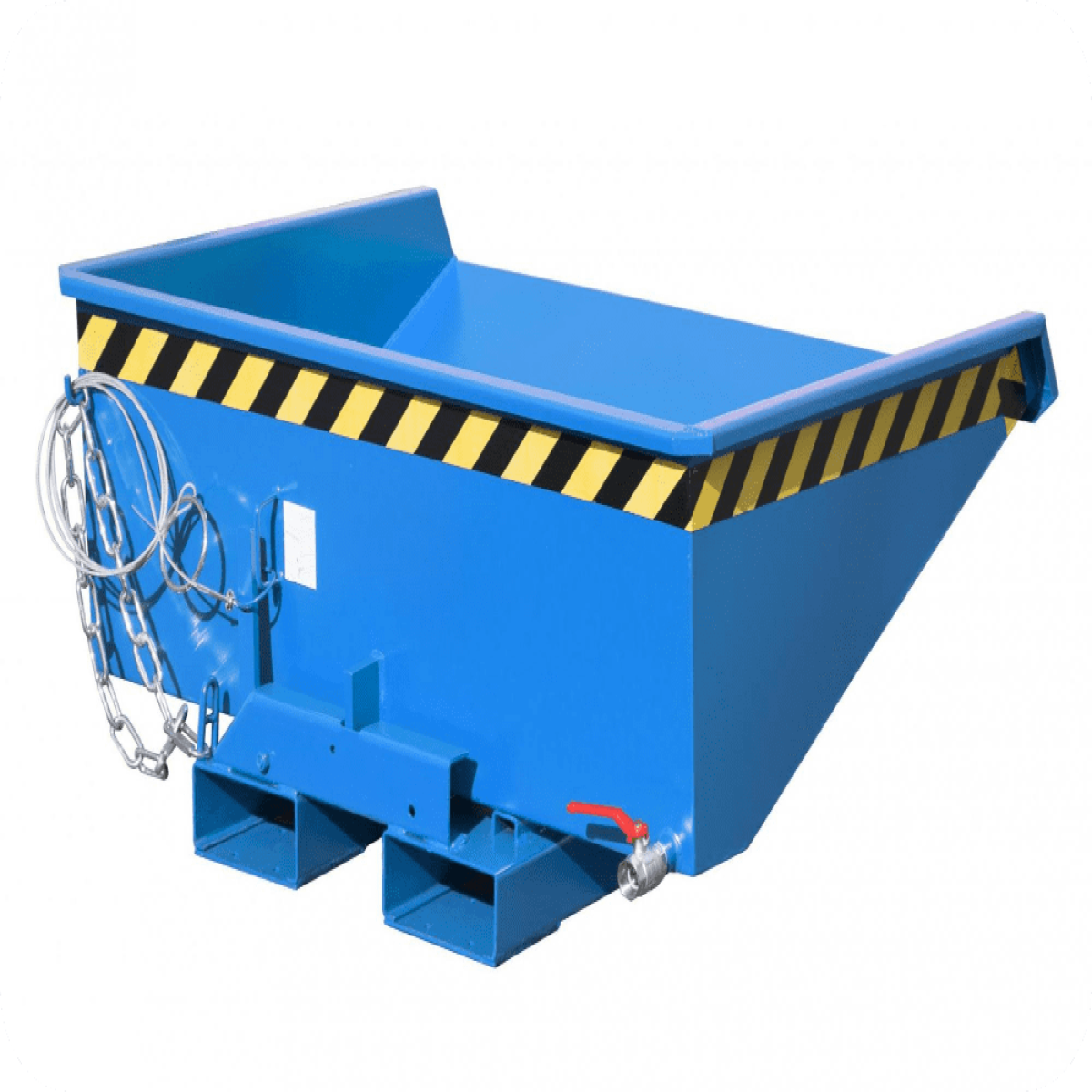

- 1 drain tap separates liquids and solids
- Fully welded container, oil and watertight
- Body with reinforced edging
- Sturdy frame with fork sleeves
- Safety chain secures unit to prevent slipping and unintentional emptying
Accessories:
1. 2 swivel + 2 fixed Polyamide castors Ø 100 mm, one swivel castor with brake (increases height of unit by 125 mm)

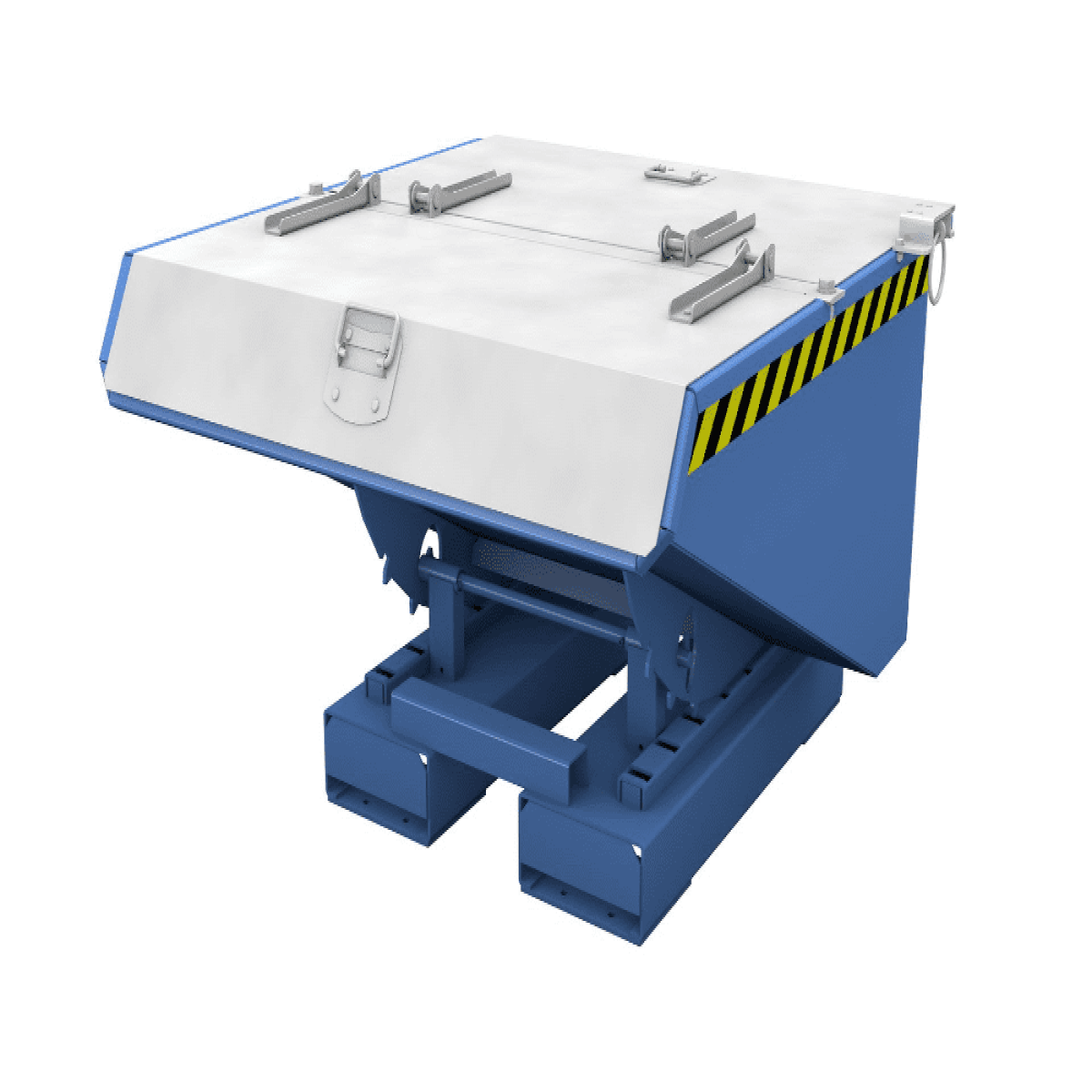

2. Galvanized lid, can be opened from both sides
Size | Model | Volume | Dimensions | Dumping Edge | Load capacity | Weight |
|---|---|---|---|---|---|---|
- | - | m³ | L x W x H (mm) | Height (mm) | kg | kg |
1 | EXPO-E 150 | 0.150 | 960 x 640 x 540 | 455 | 750 | 72 |
2 | EXPO-E 225 | 0.225 | 960 x 925 x 540 | 455 | 750 | 84 |
3 | EXPO-E 275 | 0.275 | 960 x 1210 x 540 | 455 | 750 | 92 |
Fork sleeve inside dimensions (mm)
EXPO-E 150-275 Forklift pockets: A-170 B-200 C-80
Colour Choice
Supplied complete with 'CE' Certificate, EG conformity statement and full operating instructions
FREE UK mainland delivery 3-4 weeks (excluding Highlands & Islands)
