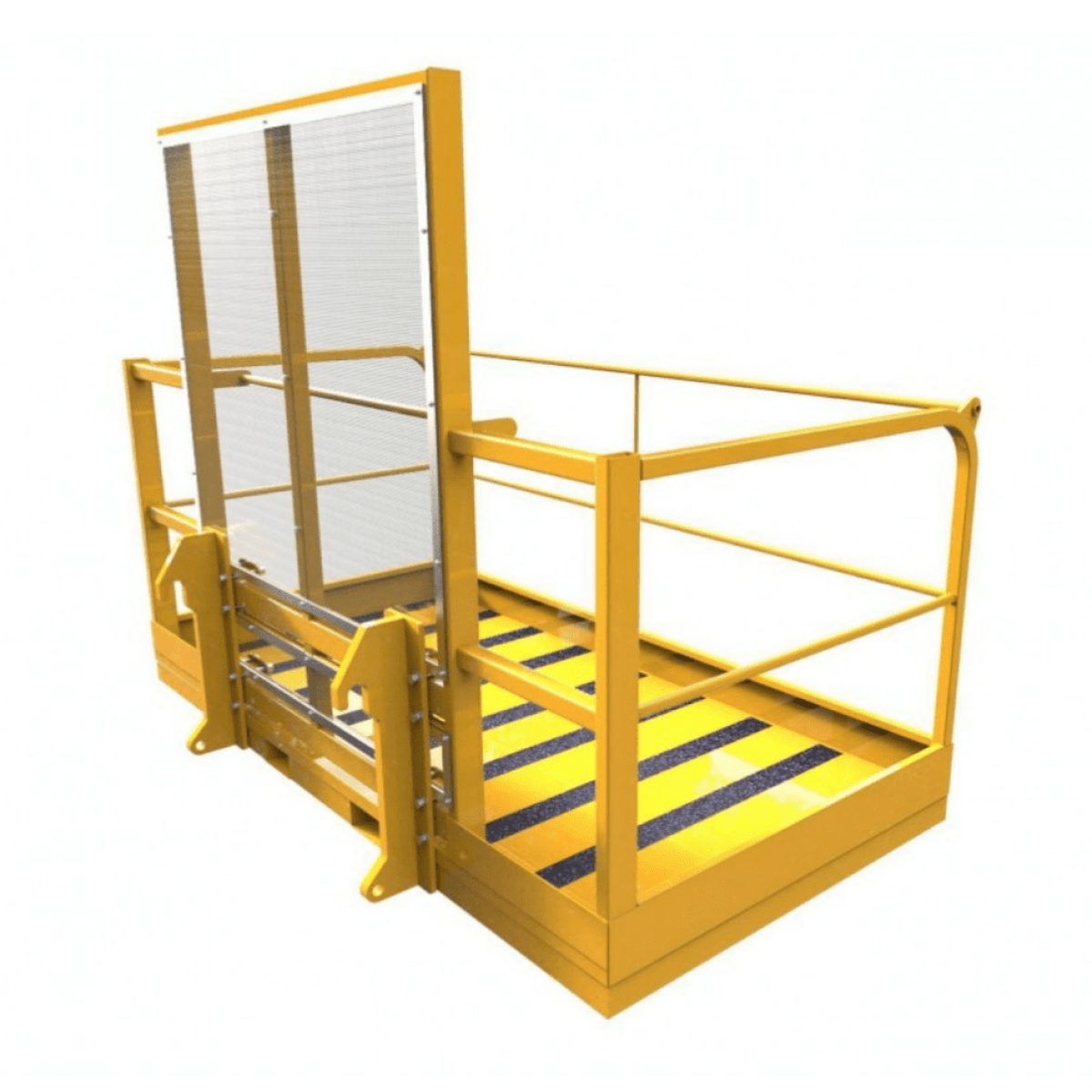

Telehandler/Front Loader Access Platform - TAP 2412
Information
Telehandler Access Platform (also known as Man-Lift Baskets) 2400W x 1200D (mm) manufactured with front loader brackets to suit any make of Telehandler. Ideal for use in fruit harvesting, agriculture, maintenance and inspection work. Front loader brackets are manufactured to suit most Telehandler models.
Manufactured from mild steel box section with a solid steel baseplate atop box section frame. Side frames are rolled box section whilst the full height back frame comes fitted with galvanised mesh suitably sized to comply with all relevant HSE guidelines. Supplied complete with Declaration of Conformity, rating plate, full user operating instructions and safety stickers affixed.
Maximum Person: 4
Dimensions (mm): 2440W x 1230D x 1890 overall height
SWL: 500 kg
Load Centre: 600 mm
Weight: 298 kg
Available: Painted or Galvanised
Complies with Health & Safety Regulations and requirements PM28 (4th edition)
Specifications
Complies fully with HSE Guidance Note PM28 (Fourth edition) ensuring all safety aspects of the platform are fulfilled
Optional bolt on quick hitch brackets to suit all makes and models of Telehandlers
Fixed step through bars for easy access into platform whilst providing a protective barrier when operating at height
Harness anchorage points and in-board handholds points for operator safety
Full height back-frame ensures there is a barrier between the platform user and the hazardous areas of the lift truck
Anti slip floor tread with drain holes to avoid accumulation of water and risk of slipping
Kick rail to all sides prohibits items left on the floor from falling out at height (i.e. work tools)
Provided with full safety livery and technical rating plate
Fully tested and certified to comply with latest Health & Safety Regulations
Brackets available for;
- Manitou
- JCB Q-fit
- Quicke Euro (8)
- CAT
- Chilton
PRICE & AVAILABILITY ON REQUEST
