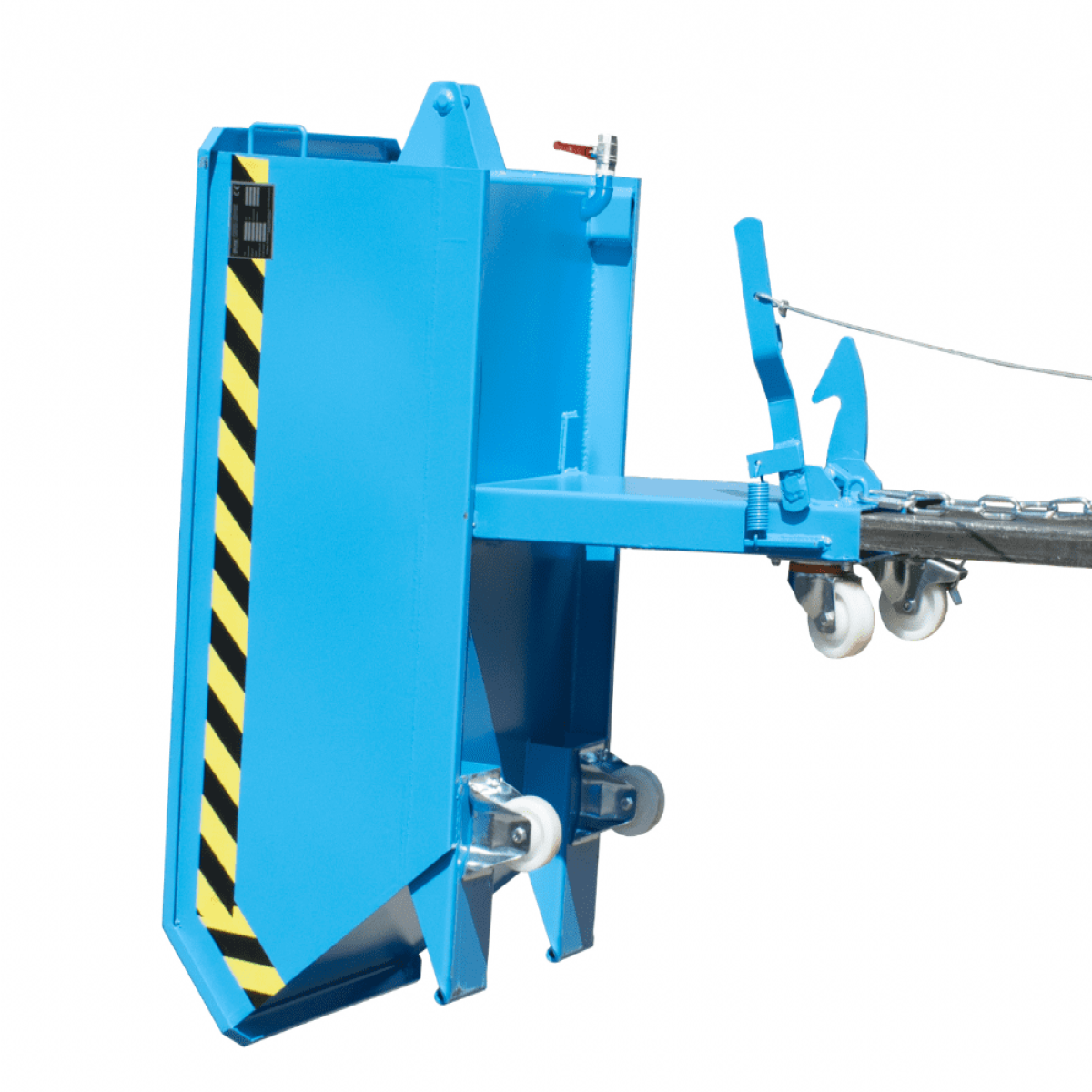

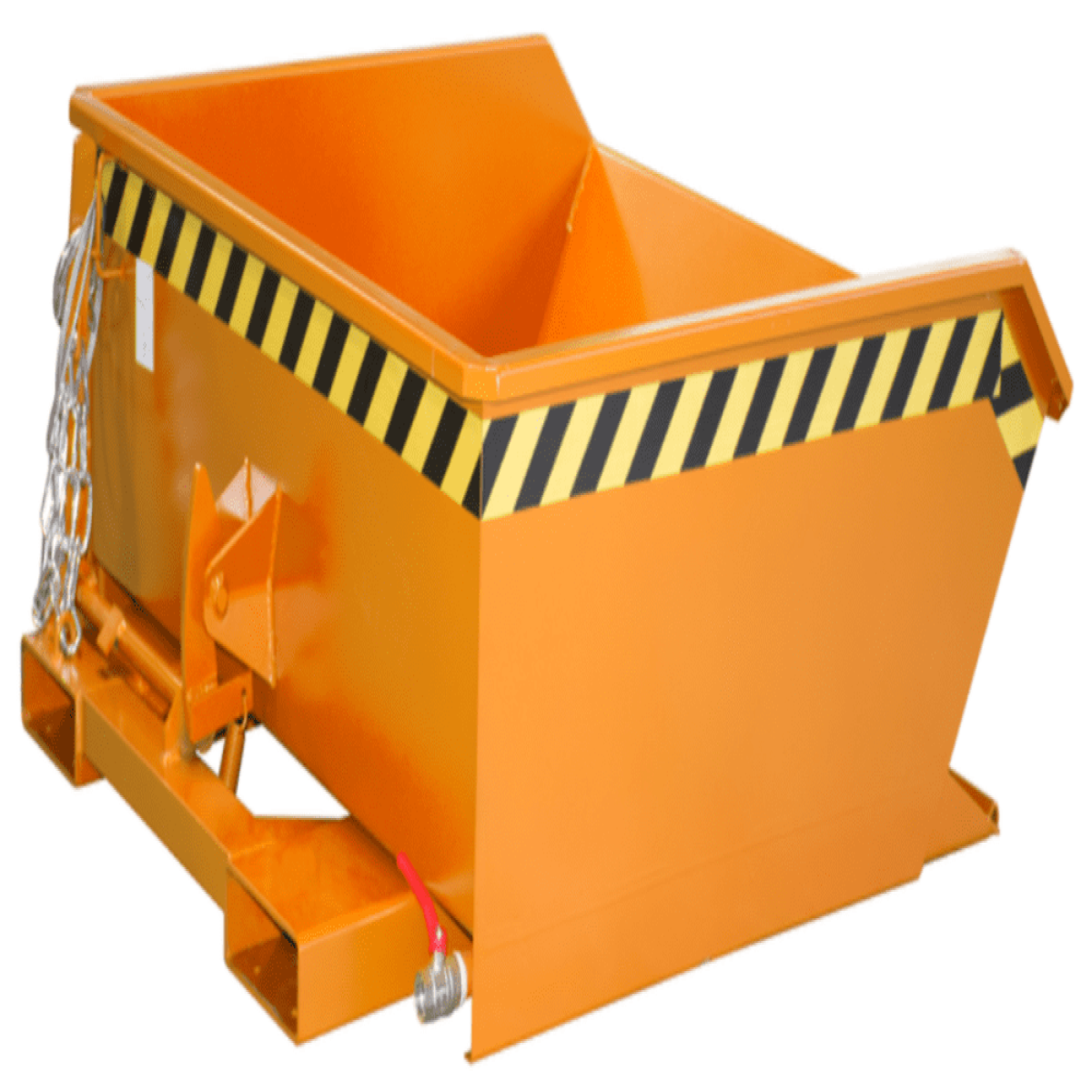

Ultra-Low Swarf Tipping Skip Type SMGU
From £905.00 each ex VAT From £1,086.00 each inc VAT
Select a item required and then complete the required options to configure your Ultra-Low Swarf Tipping Skip Type SMGU.
From £905.00 ex VAT From £1,086.00 inc VAT
Information
Ultra-Low Swarf Tipping Skip manufactured specifically to meet requirements of modern machine shops where swarf discharge height prove to be a problem. Available with or without castors, the units feature a perforated sieve and drain tap for easy liquid removal. Ideal skip for collecting metal shavings, swarf and industrial waste fed by conveyor systems.
· Ideal unit for swarf and industrial waste
· Can be emptied at any height by cable operated by the driver
· 1 drain tap separates liquids and solids
· Fully welded container, oil and watertight
· Body with reinforced edging
| Size | Product Code | Volume | Dimensions | Height dumping Edge | SWL | Weight |
| - | - | cubic m | L x W x H (mm) | mm | kg | kg |
| 1 | SMGU 230 | 0.23 | 1385 x 680 x 450 | 350 | 750 | 85 |
| 2 | SMGU 270 | 0.27 | 1385 x 780 x 450 | 350 | 1000 | 97 |
| 3 | SMGU 460 | 0.46 | 1385 x 1280 x 450 | 350 | 1000 | 121 |
| 4 | SMGU 610 | 0.61 | 1385 x 1680 x 450 | 350 | 1000 | 139 |
Accessories:
1. 2 swivel + 2 fixed Polyamide Castors Ø 100 mm, one swivel castor with brake (increases height of unit by 125 mm)
2. Galvanized lid, can be opened from both sides
Fork sleeve inside dimensions (mm)
SMGU 230 Forklift pockets: A-10 B-200 C-60
SMGU 270 Forklift pockets: A-150 B-200 C-60
SMGU 460-610 Forklift pockets: A-495 B-200 C-60
Colour Choice
Supplied complete with 'CE' Certificate, EG conformity statement and full operating instructions
FREE UK mainland delivery 3-4 weeks (excluding Highlands & Islands)
