WHEELIE BIN JACK Type MH

  • Lifts and transports one, two or three wheelie bins at a time
  • Three models handling bins from 80 to 240 litres
  • MH-2 version suits 1,100 litre bins with a comb-lift system
  • Secure gripping mechanism holds bins during handling
  • Protective rubber strip helps prevent damage to the bin surface
Unimac

From £920.85 each ex VAT From £1,105.02 each inc VAT

Select a item required and then complete the required options to configure your WHEELIE BIN JACK Type MH.

From £920.85 ex VAT From £1,105.02 inc VAT

Secure checkout with order confirmation.
Payment Methods
Unimac

NEED ANY ASSISTANCE?

OUR EXPERT TEAM IS HERE TO HELP YOU.
CONTACT US TODAY OR CALL US ON

01933 665000

Information

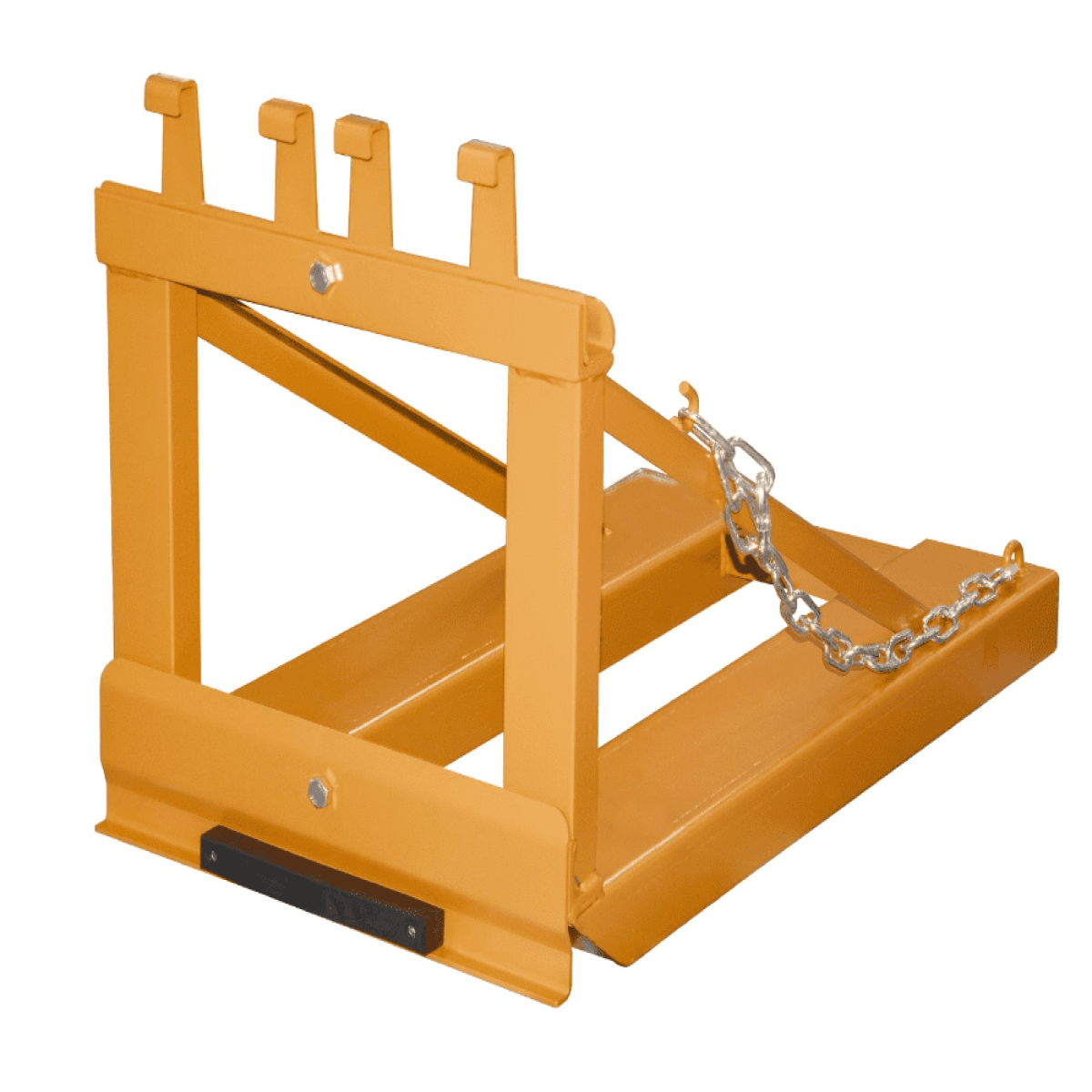

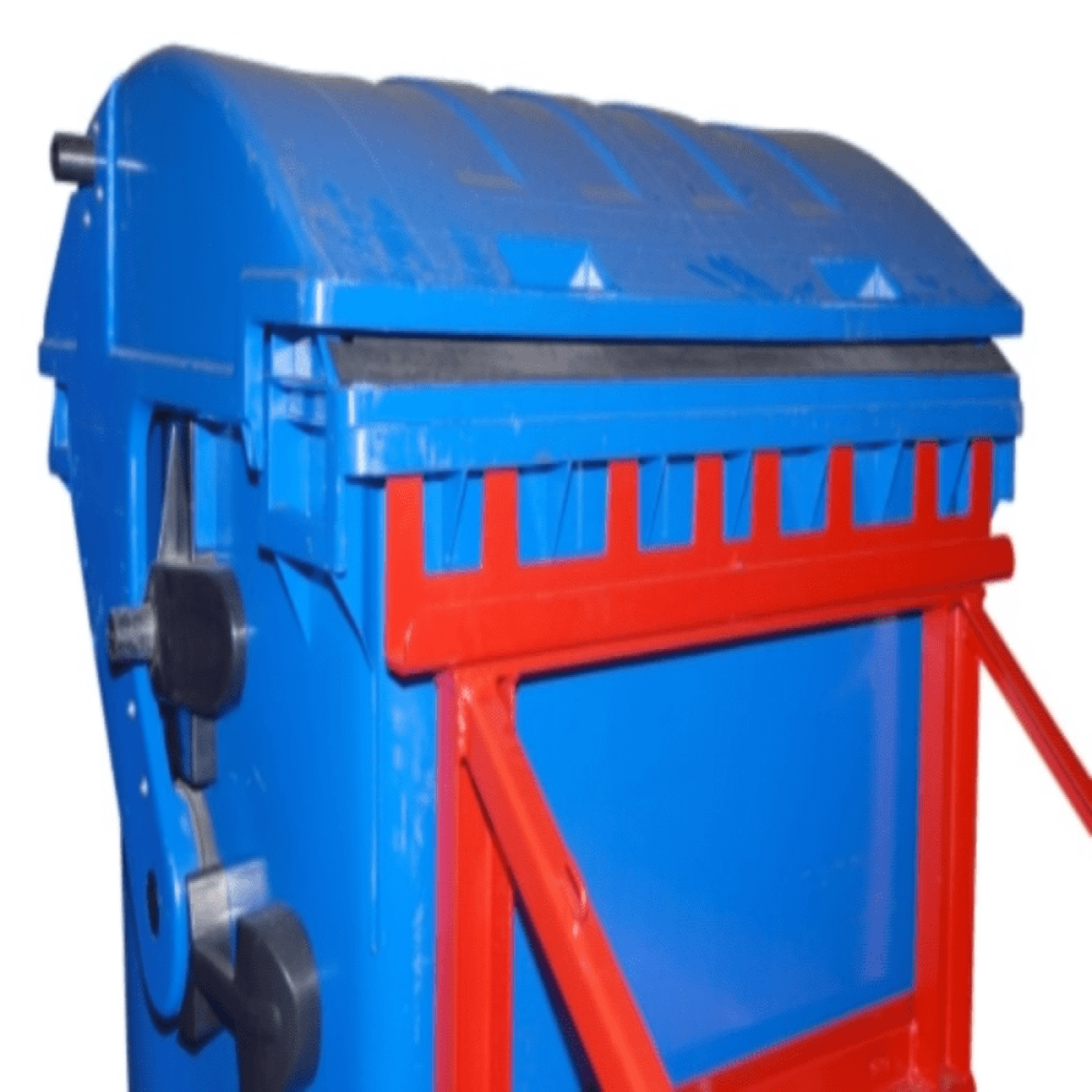

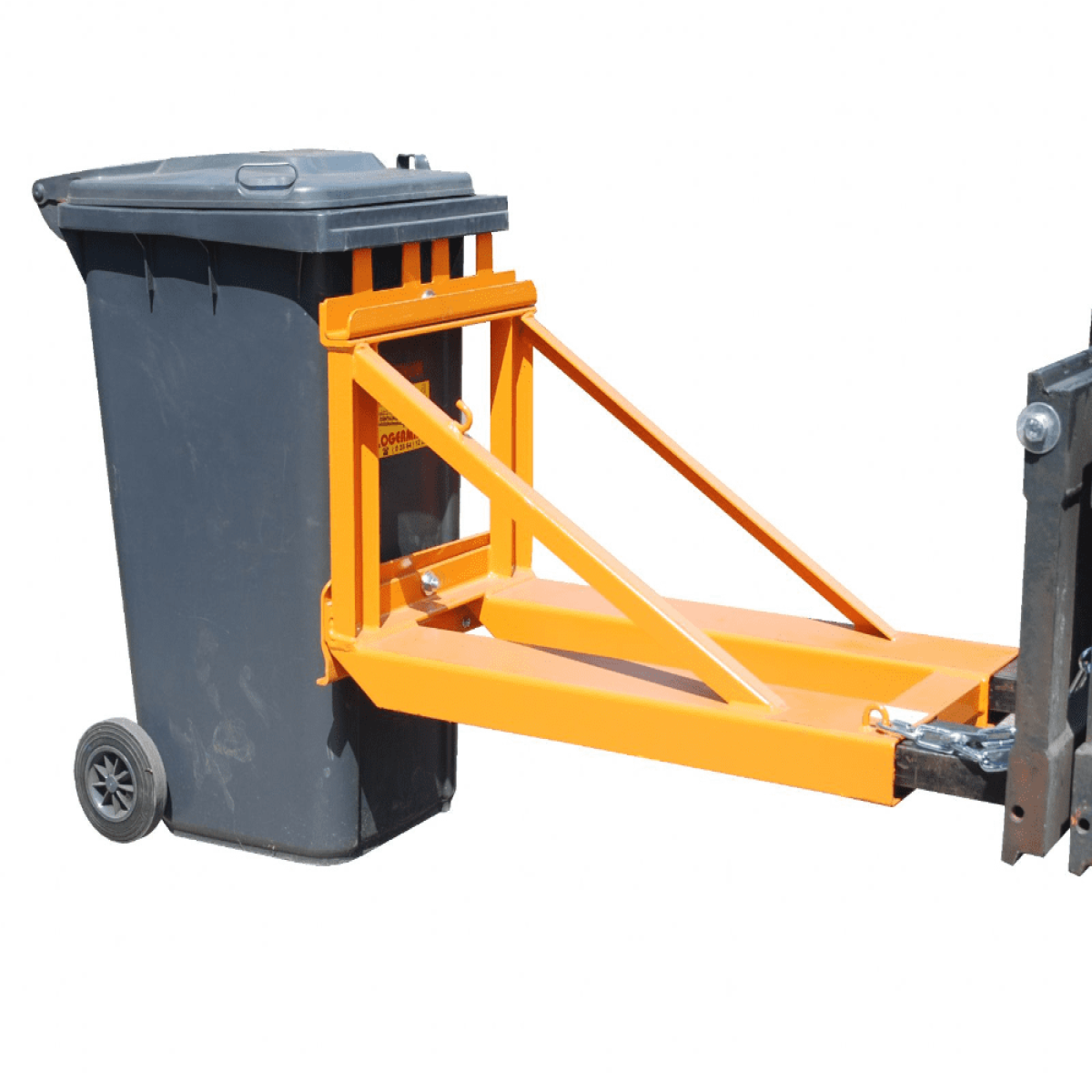

Efficient method of lifting and transporting wheelie bins. Unit consists of a sturdy frame with fork sleeves and a gripping mechanism screwed to the upper frame. The lower frame has a protective rubber strip mounted to prevent damage to the wheelie bins. System is available in 3 different sizes to handle one, two, or three bins at a time. Type MH-1 and type MH-3 are manufactured to meet DIN EN 840-1 for wheelie bins ranging from 80 -240 litres made of plastic and 240 litre wheelie bins made of steel sheeting. Type MH-2 is used for lifting 1100 litres wheelie bins with comb pick-up system.

Specifications
Type Max No.  Max No. Dimensions Max Load  Weight
- 80 -360 ltr bins 1100 ltr bins L x W x H (mm) kg kg
MH-1 1 - 1026 x 584 x 678 200 65
MH-2 2 1 1026 x 1070 x 678 400 71
MH-3 3 - 1026 x 1595 x 678 600 79
















Fork sleeve inside dimensions (mm)  A = 230 B = 170 C = 75

Colour choice

Availability 2 weeks. FREE UK mainland delivery (excluding Highlands & Islands)
