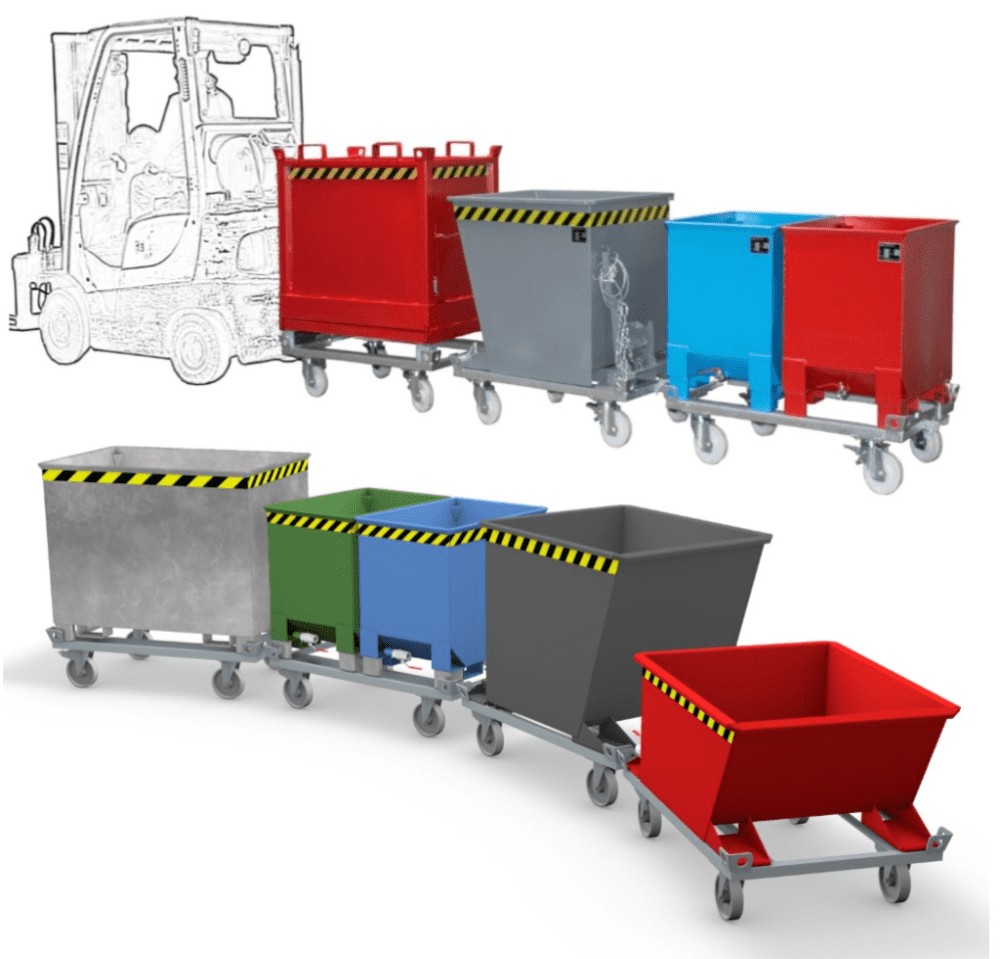

Containers For Tugger Train Systems

Home / Fork Lift Attachments / Containers For Tugger Train Systems / Swarf Bin For Tugger Train. Type CS

Swarf Bin For Tugger Train. Type CS

£712.00

Product Code: CS 30

Information Reviews

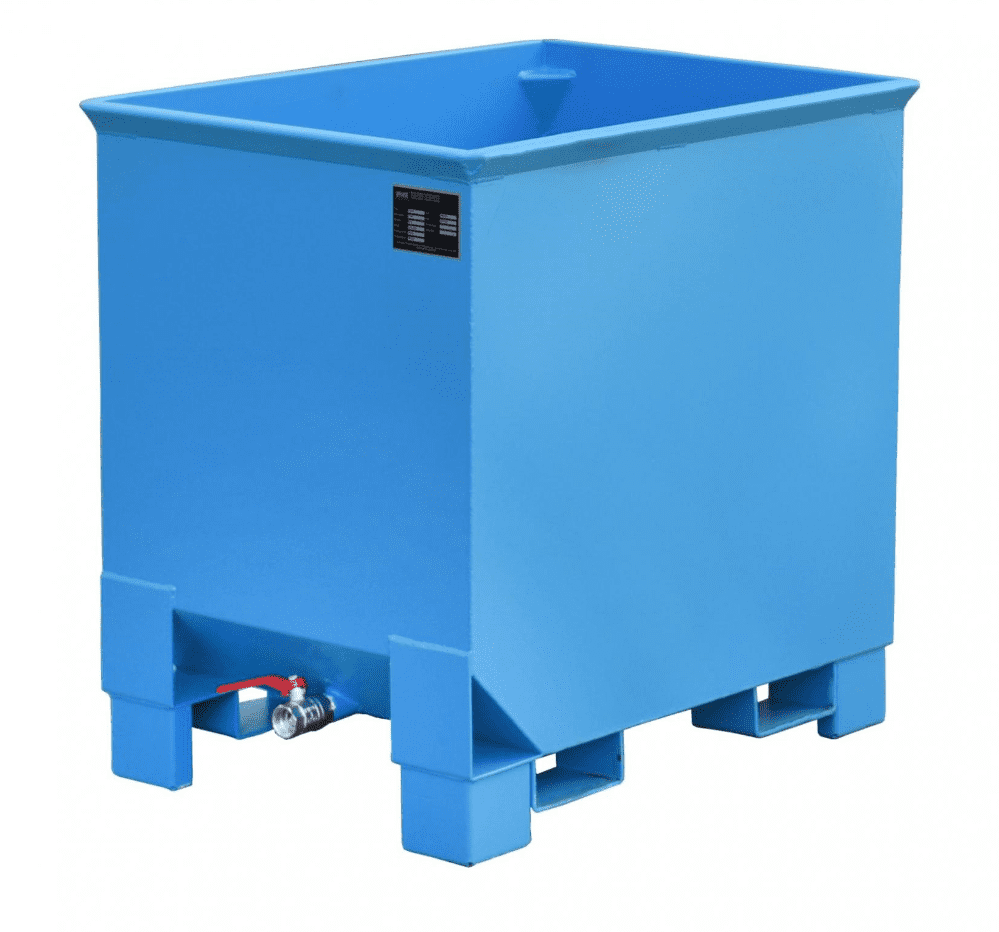

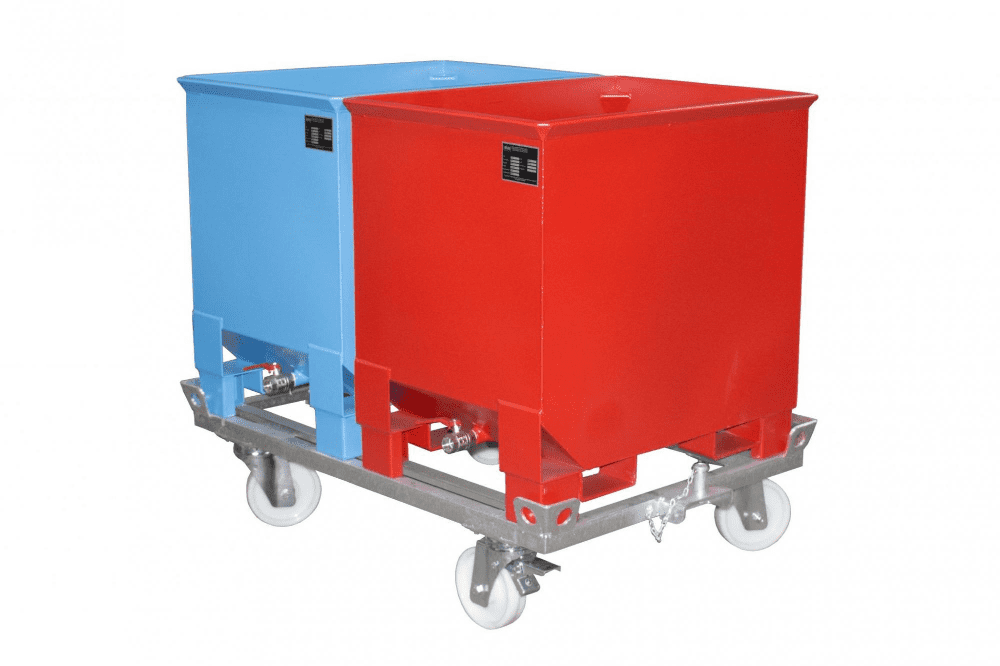

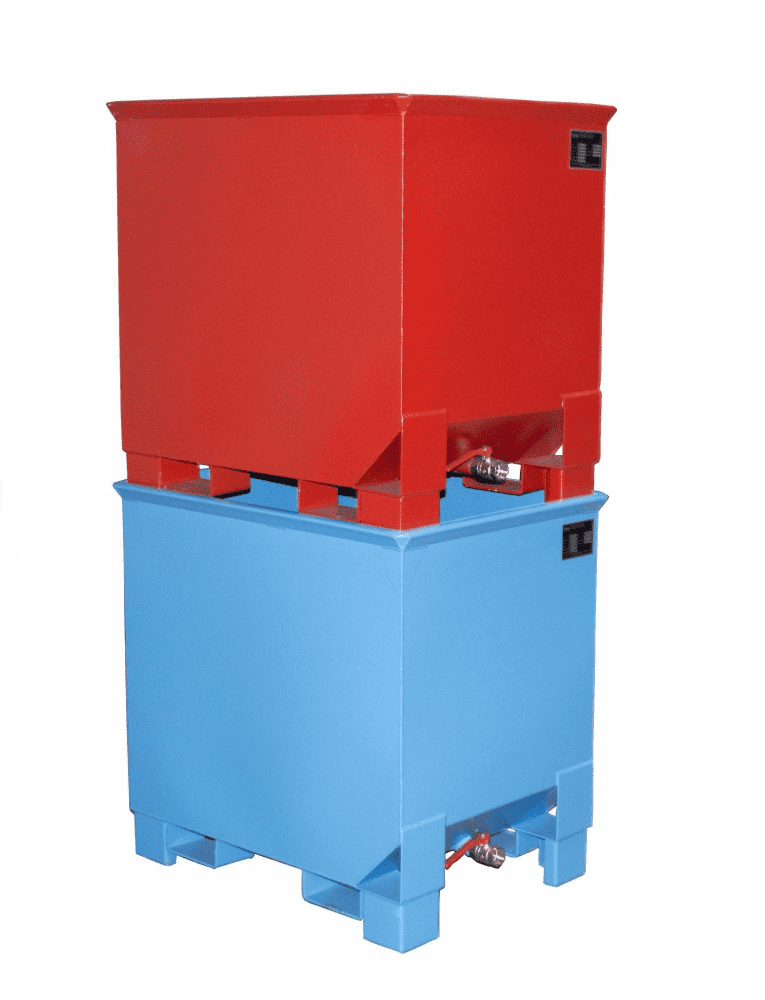

Swarf bins suitable for use with tugger train systems, manufactured from steel, fully welded, oil and watertight. Units have smooth inner walls, a perforated sieve and a 1" drain-cock for easy fluid separation. Bins can be stacked 3 high with the 4 stacking corners, and are suitable for use with pallet trucks due to 100 mm ground leeway.

Bin Specifications
Type	Volume	Bin Dimensions	Load Capacity	Weight	Trolley Dimensions	No of bins
-	m³	L x W x H (mm)	kg	kg	mm	per trolley
CS 30	0.30	618 x 836 x 799	500	53	600 x 800	1 x CS 30
CS 80	0.80	836 x 1236 x 971	1000	88	1200 x 800	1 x CS 80 or 2 x CS 30

Fork Pocket Dimensions (mm)

CS 30: A=260 B=150 C=60
CS 80: A=600 B=150 C=60

Colour Choice

View Data Sheet
FREE UK mainland delivery 5-6 weeks (excluding Highlands & Islands)
