Low Profile Extending Jib - Type LEP
From £1,015.00 each ex VAT From £1,218.00 each inc VAT
Select a item required to configure your Low Profile Extending Jib - Type LEP.
From £1,015.00 ex VAT From £1,218.00 inc VAT
Information

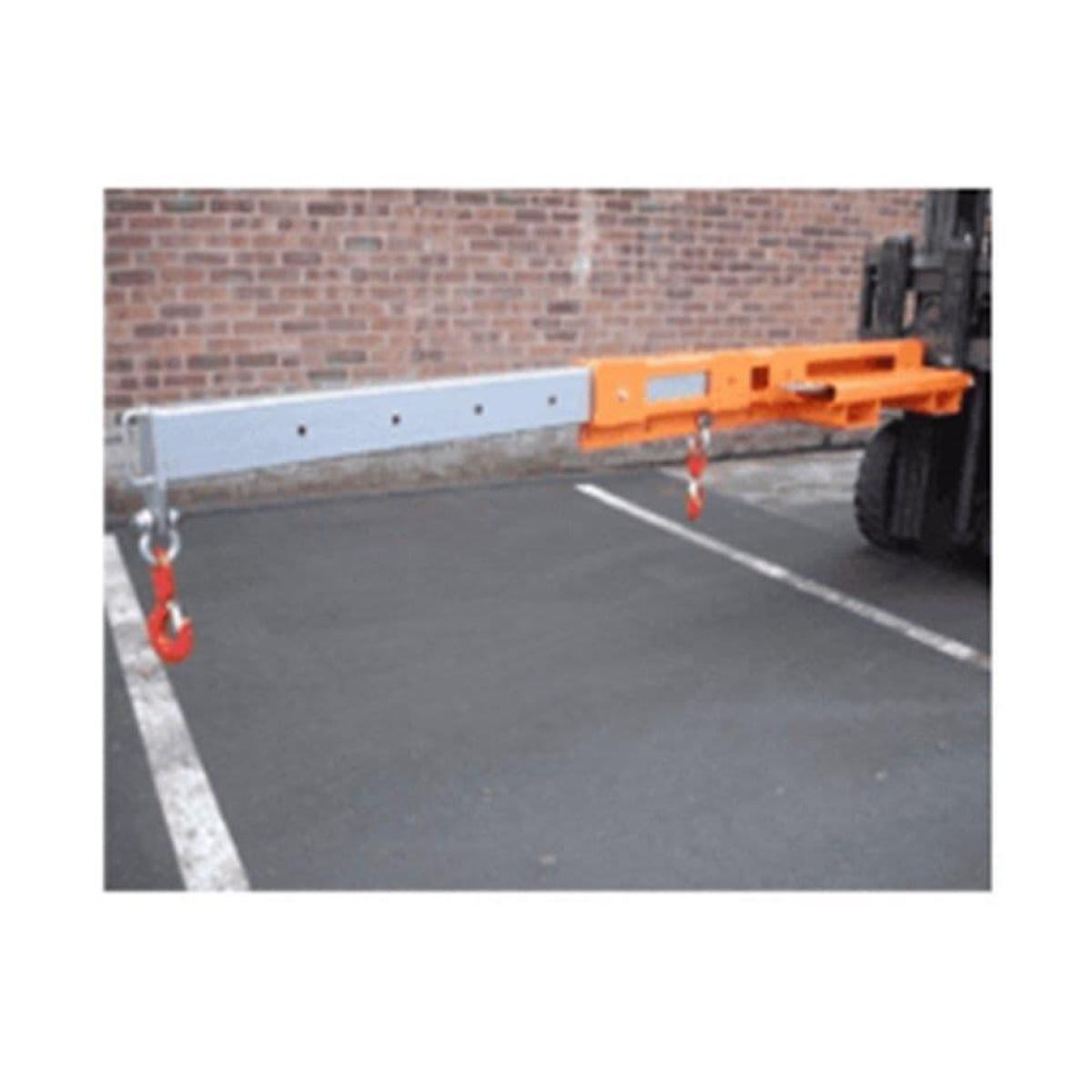

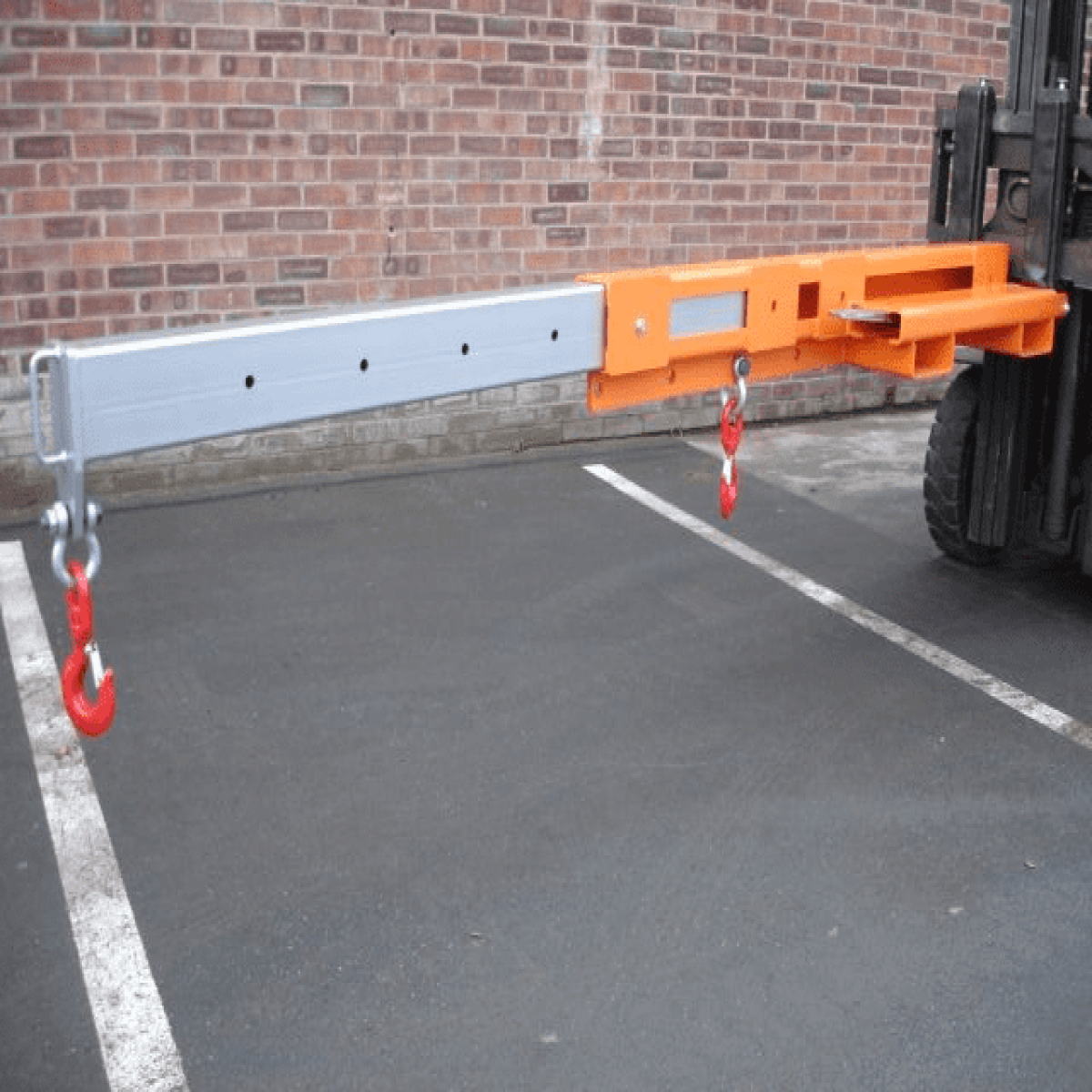

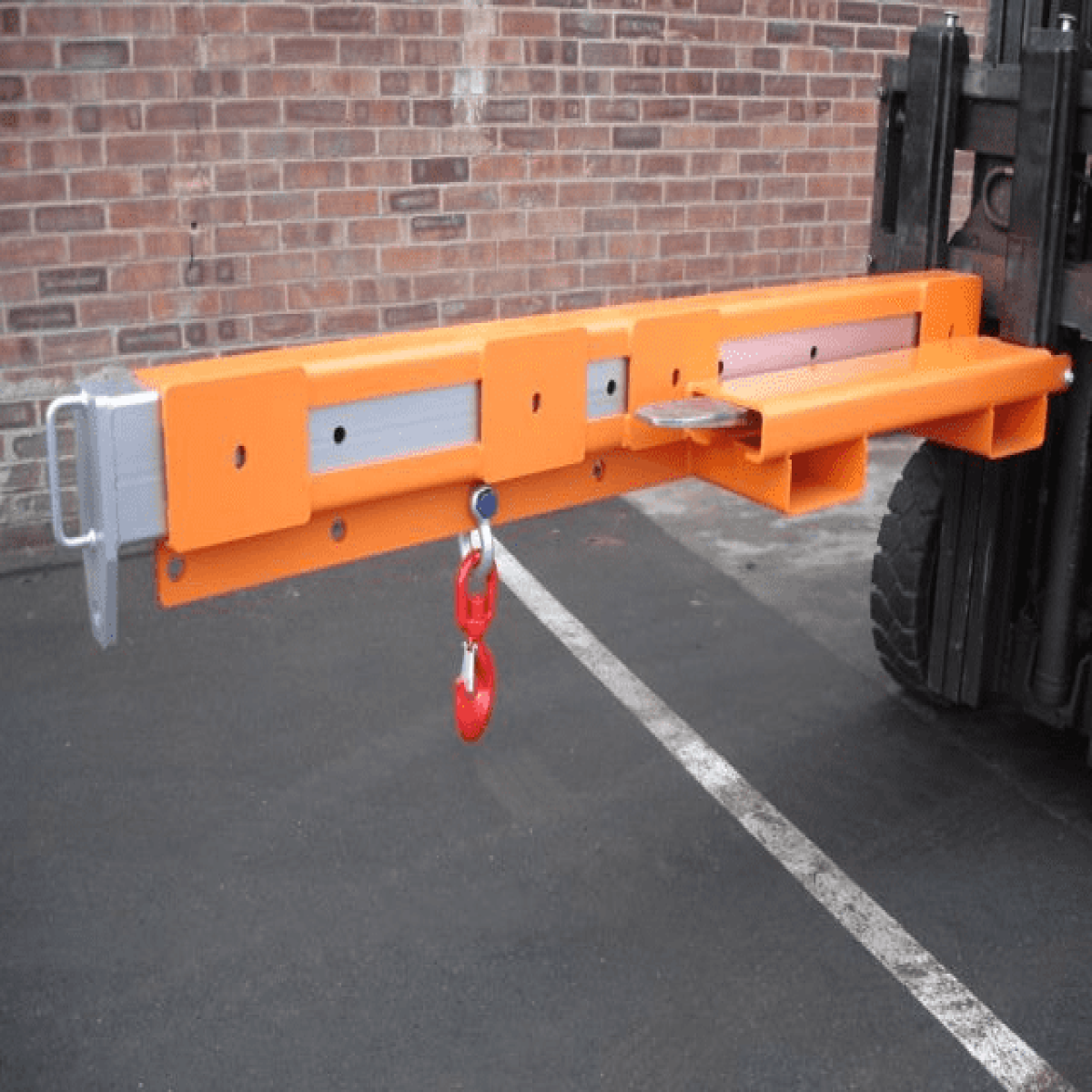

Fork-lift Crane Arm Attachment, Type LEP, with fixed beam and 10 hook positions. Ideal for use when height is at a premium, enabling the movement of long and awkward loads from inaccessible locations, with the potential of 5 different lifting centres.
Standard Features
- Multi hook positioning from 500-3000 load centres
- Supplied complete with 2 off swivel hooks and bow shackles
- Four way pocket entry for ease of storage
- Maximum fork section 150 x 50 mm at 281 mm centres.
- Zinc plated heel pins for safe attachment to truck
- Painted bright orange for safety
| Type | 500 | 1000 | 1250 | 1500 | 1750 | 2000 | 2250 | 2500 | 2750 | 3000 | Weight |
| LEP-1.0 | 1000 | 700 | 500 | 400 | 260 | 250 | 230 | 190 | 150 | 100 | 95 kg |
| LEP-1.5 | 1500 | 1100 | 900 | 650 | 450 | 400 | 350 | 300 | 220 | 150 | 100 kg |
| LEP-2.0 | 2000 | 1600 | 1200 | 900 | 600 | 500 | 400 | 350 | 280 | 200 | 109 kg |
| LEP-3.0 | 3000 | 2100 | 1600 | 1100 | 850 | 715 | 620 | 440 | 320 | 250 | 127 kg |
| LEP-4.0 | 4000 | 3200 | 2500 | 1900 | 1100 | 975 | 850 | 650 | 500 | 400 | 138 kg |
Availability: Stock item 4-5 days
Free UK mainland delivery (excluding Highlands & Islands)
