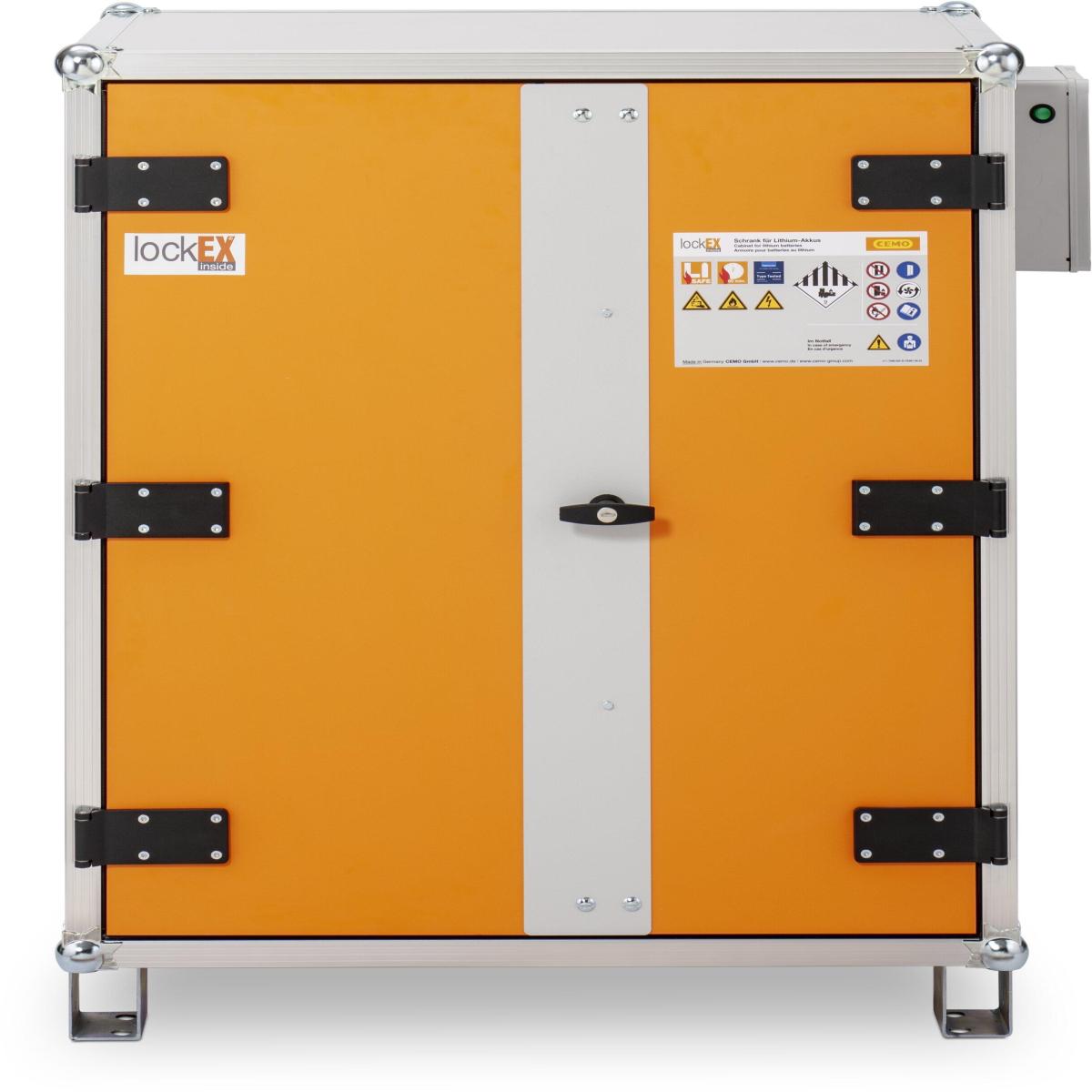

Battery Storage and Charging Cabinet lockEX 8/10
From £3,530.00 each ex VAT From £4,236.00 each inc VAT
Select a cabinet required to configure your Battery Storage and Charging Cabinet lockEX 8/10.
From £3,530.00 ex VAT From £4,236.00 inc VAT
Information
Storing and charging lithium batteries poses a fire safety challenge. Fire and explosion resistant safety cabinet lockEX 8/10 provides a safe solution, offering many safety features protecting personnel and property. Cabinets are available in both 1-phase and 3-phases variants. 6 options available
Battery Charging Cabinet - BASIC specifications
- Safe storage and charging of lithium-ion batteries up to 6 kWh
- VDMA Tested 24994:2024
- heat dissipation by fan during charging
- lockable double doors with a steel sheet spark guard for additional protection
- charging current is interrupted if the doors are opened
- charging stops if malfunction or thermal runaway
- supply and exhaust air vents sealed with heat-activated butterfly valves
- stacking feet

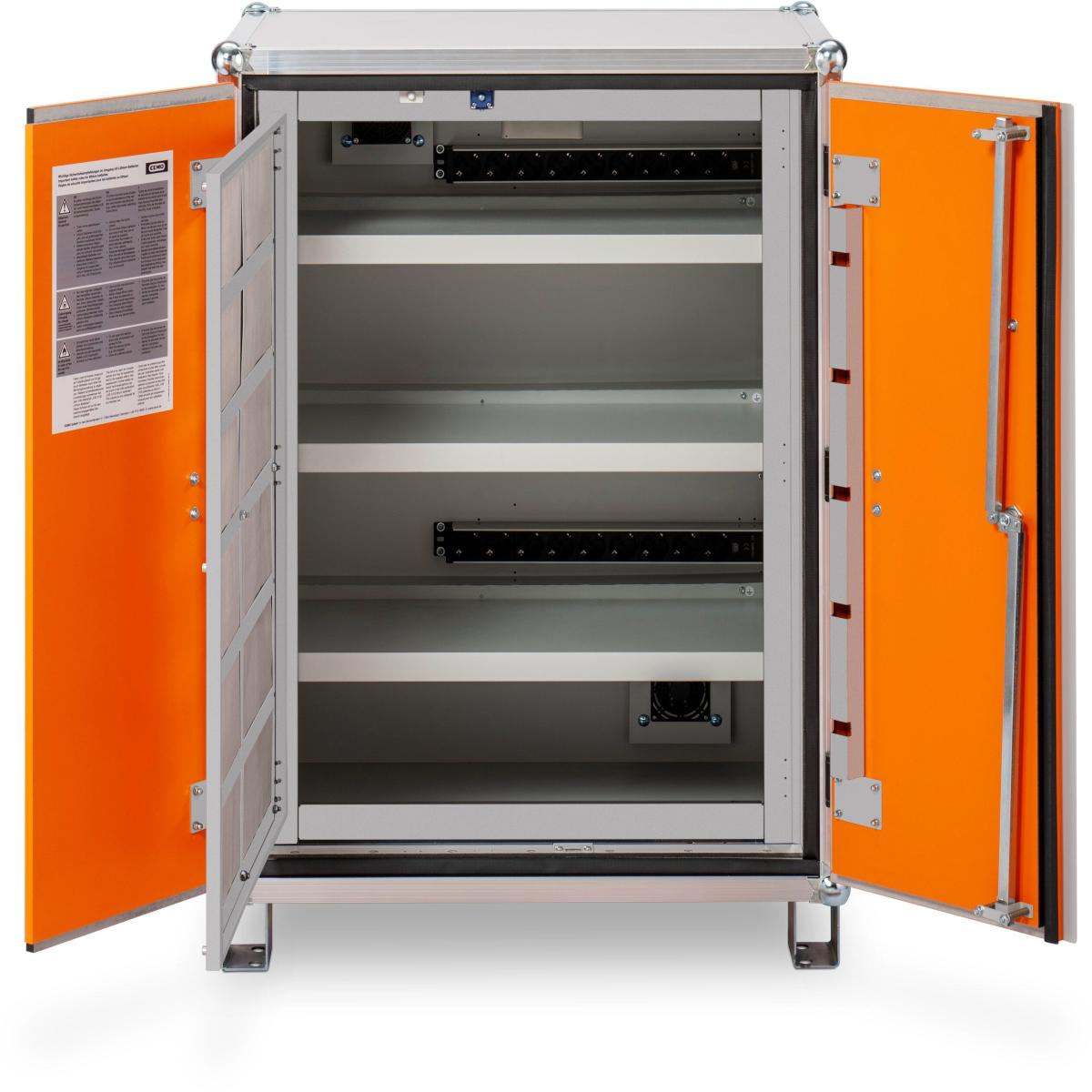

- charging versions with 2 horizontally arranged 8-way socket strips for power supply
- 230 V version with 1-phase power supply (3500 W / 16A)
- 400 V version with 3-phase power supply (2 x 3500 W / 2 x 16 A)
- battery operated smoke detector
1. Battery charging cabinet BASIC, 1-phase version. Order No:12114
External dimensions: 800L x 660W x 1110H (mm) Weight:135 (kg)
Internal dimensions: 730L x 530W x 840H (mm)
2. Battery charging cabinet BASIC 3-phase version. Order No:12115
External dimensions: 800L x 660W x 1110H (mm) Weight:136 (kg)
Internal dimensions: 730L x 530W x 840H (mm)
Note: 3-phase version is necessary if, for example, batteries are to be charged with fast chargers that have greater current requirement than 1-phase version can provide.
Battery Charging Cabinet - Premium specifications
- Safe storage and charging of lithium-ion batteries up to 6 kWh
- VDMA Tested 24994:2024
- heat dissipation by fan during charging
- lockable double doors with a steel sheet spark guard for additional protection
- charging current is interrupted if the doors are opened
- charging stops if malfunction or thermal runaway
- supply and exhaust air vents sealed with heat-activated butterfly valves
- stacking feet
- charging versions with 2 horizontally arranged 8-way socket strips for power supply
- 230 V version with 1-phase power supply (3500 W / 16A)
- 400 V version with 3-phase power supply (2 x 3500 W / 2 x 16 A)
- electronic smoke detector
- voltage free output on the outside of cabinet for connection to a fire alarm unit
3. Battery charging cabinet PREMIUM, 1-phase version. Order No:12118
External dimensions: 890L x 660W x 1110H (mm) Weight:135 (kg)
Internal dimensions: 730L x 530W x 880H (mm)
4. Battery charging cabinet PREMIUM, 3-phase version. Order No:12119
External dimensions: 950L x 660W x 1110H (mm) Weight:136 (kg)
Internal dimensions: 730L x 530W x 880H (mm)
Note: 3-phase version is necessary if, for example, batteries are to be charged with fast chargers that have greater current requirement than 1-phase version can provide.
Battery Charging Cabinet - Premium Plus specifications
- Safe storage and charging of lithium-ion batteries up to 6 kWh
- VDMA Certified 24994:2024
- heat dissipation by fan during charging
- lockable double doors with a steel sheet spark guard for additional protection
- charging current is interrupted if the doors are opened
- charging stops if malfunction or thermal runaway
- supply and exhaust air vents sealed with heat-activated butterfly valves
- stacking feet
- charging versions with 2 horizontally arranged 8-way socket strips for power supply
- 230 V version with 1-phase power supply (3500 W / 16A)
- 400 V version with 3-phase power supply (2 x 3500 W / 2 x 16 A)
- electronic smoke detector
- voltage free output on the outside of cabinet for connection to a fire alarm unit
- flexibility networkable system - communication either via WLAN or SMS for accessibility, even without an internet connection

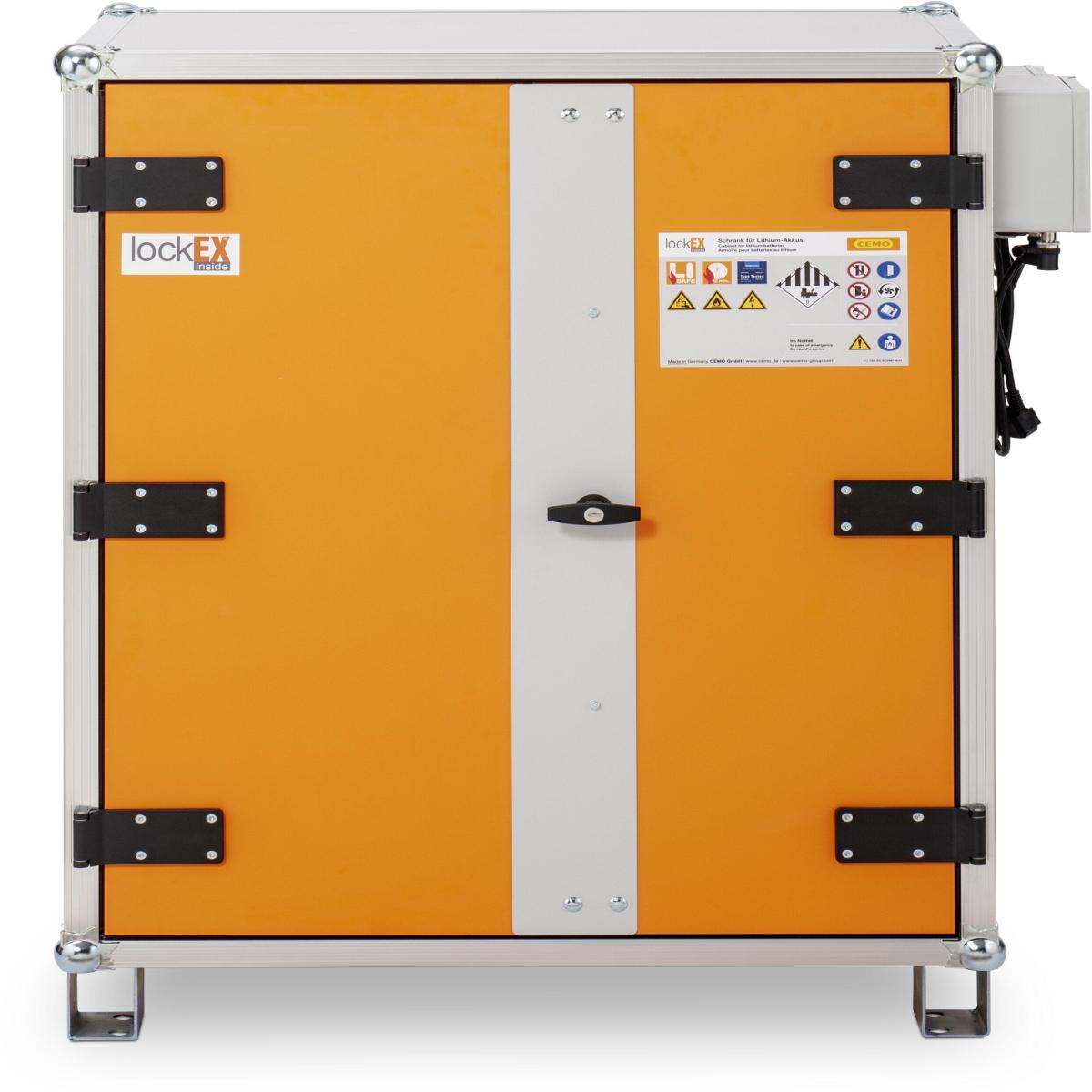

5. Battery charging cabinet PREMIUM PLUS, 1-phase version. Order No:12122
External dimensions: 890L x 660W x 1110H (mm) Weight:135 (kg)
Internal dimensions: 730L x 530W x 880H (mm)
6. Battery charging cabinet PREMIUM PLUS, 3-phase. Order No:12123
External dimensions: 950L x 660W x 1110H (mm) Weight:136 (kg)
Internal dimensions: 730L x 530W x 880H (mm)
Note: 3-phase version is necessary if, for example, batteries are to be charged with fast chargers that have greater current requirement than 1-phase version can provide.
FREE UK mainland delivery 6-8 weeks (excluding Highlands &Islands)
