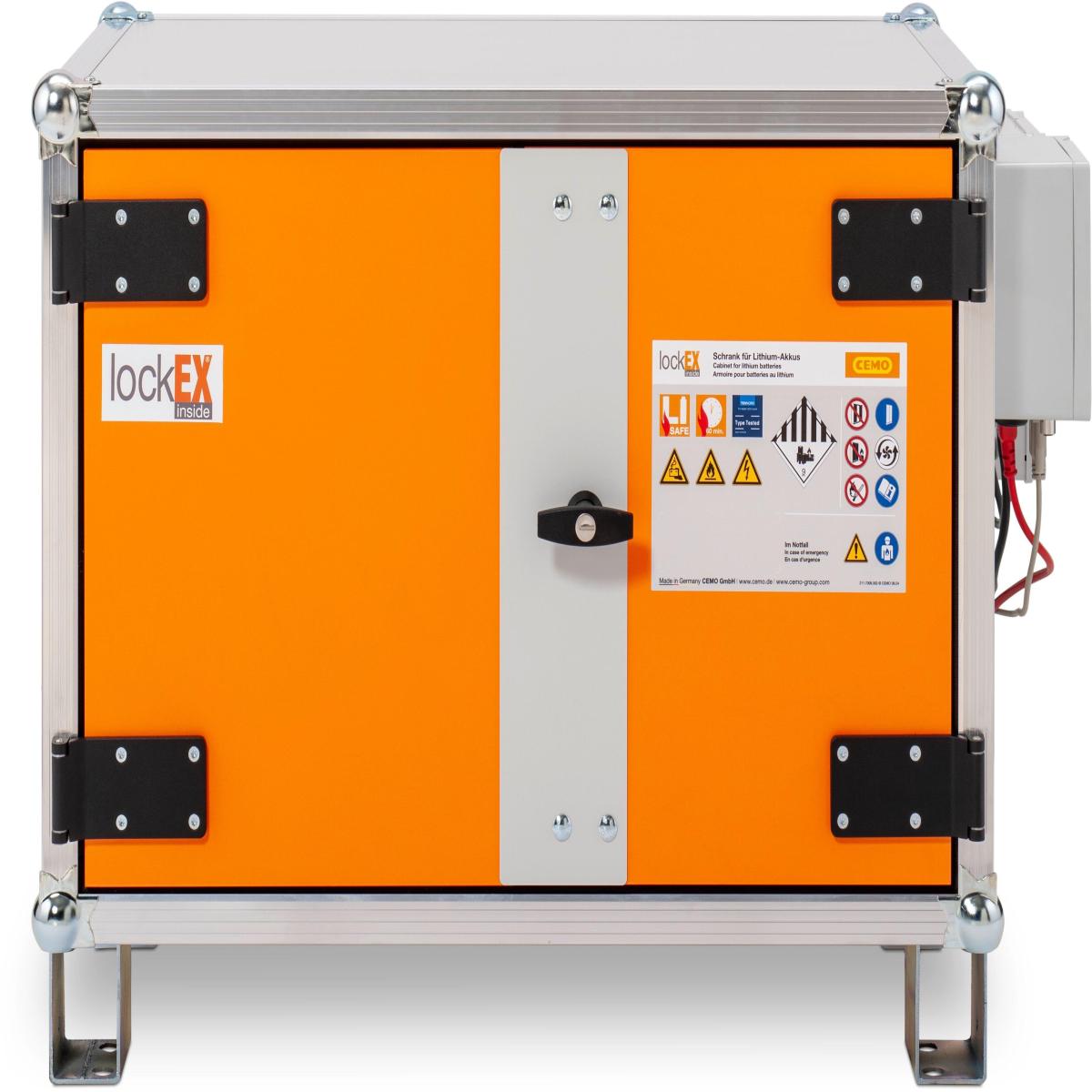

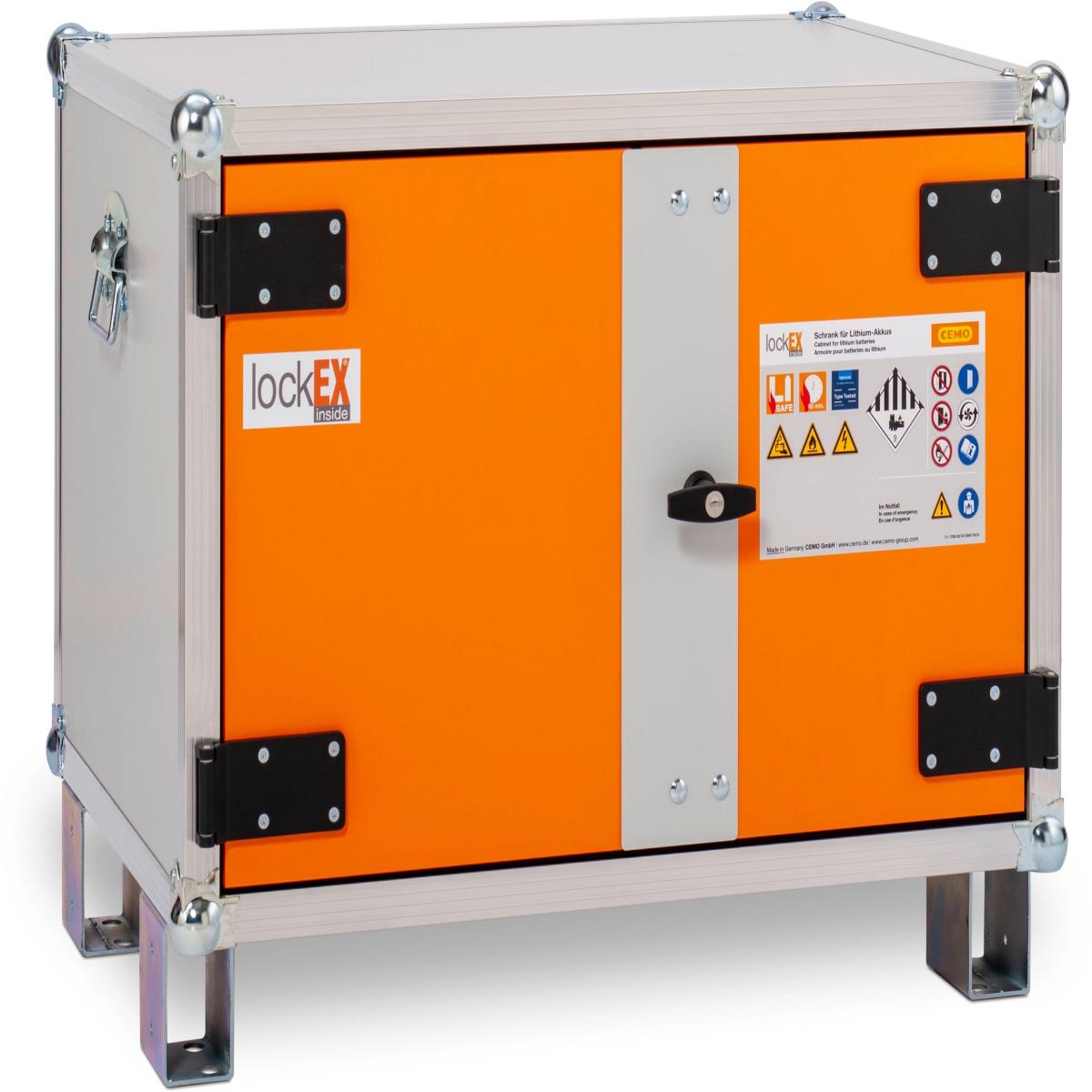

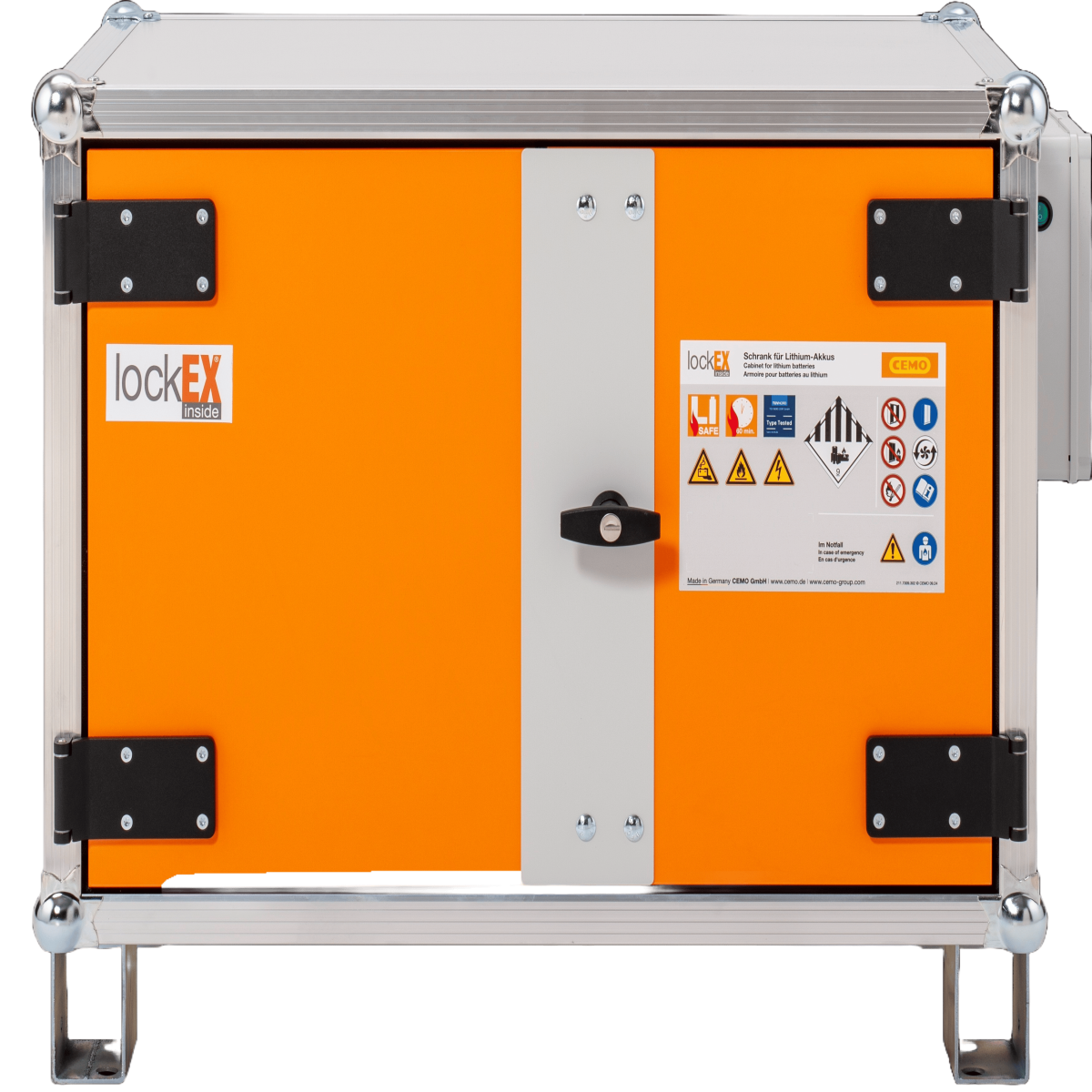

Battery Storage and Charging Cabinet lockEX 8/5

Storing and charging lithium batteries poses a fire safety challenge. Fire and explosion resistant safety cabinet lockEX 8/5 provides a safe solution, offering many safety features protecting personnel and property. 3 options available

Battery Charging Cabinet - BASIC specifications

• Safe storage and charging of lithium-ion batteries up to 3 kWh
• VDMA Tested 24994:2024
• heat dissipation by fan during charging
• lockable double doors
• charging current is interrupted if the doors are opened
• charging stops if malfunction or thermal runaway
• supply and exhaust air vents sealed with heat-activated butterfly valves
• stacking feet
• up to two storage levels
• charging versions with 1 horizontally arranged 8-way socket strips for power supply
• battery operated smoke detector
• 230 V version with 1-phase power supply (3500 W / 16A)

1. Battery charging cabinet BASIC, 1-phase version. Order No:12109

External dimensions: 800L x 660W x 620H (mm) Weight:84 (kg)

Internal dimensions: 730L x 530W x 450H (mm)

Battery Charging Cabinet - PREMIUM specifications

• Safe storage and charging of lithium-ion batteries up to 3 kWh
• VDMA Tested 24994:2024
• heat dissipation by fan during charging
• lockable double doors
• charging current is interrupted if the doors are opened
• charging stops if malfunction or thermal runaway
• supply and exhaust air vents sealed with heat-activated butterfly valves
• stacking feet
• up to two storage levels
• charging versions with 1 horizontally arranged 8-way socket strips for power supply
• 230 V version with 1-phase power supply (3500 W / 16A)
• electronic smoke detector
• connection to central fire alarm system (BMA) – for seamless integration into existing security infrastructure

2. Battery charging cabinet PREMIUM, 1-phase version. Order No:12111

External dimensions: 890L x 660W x 620H (mm) Weight:85 (kg)

Internal dimensions: 730L x 530W x 450H (mm)

Battery Charging Cabinet - PREMIUM PLUS specifications

• Safe storage and charging of lithium-ion batteries up to 3 kWh
• VDMA Certified 24994:2024
• heat dissipation by fan during charging
• lockable double doors
• charging current is interrupted if the doors are opened
• charging stops if malfunction or thermal runaway
• supply and exhaust air vents sealed with heat-activated butterfly valves
• stacking feet
• up to two storage levels
• charging versions with 1 horizontally arranged 8-way socket strips for power supply
• 230 V version with 1-phase power supply (3500 W / 16A)
• electronic smoke detector
• connection to central fire alarm system (BMA) – for seamless integration into existing security infrastructure
• flexibly networkable system – communication either via WLAN or SMS for maximum accessibility, even without an Internet connection

3. Battery charging cabinet PREMIUM PLUS, 1-phase version. Order No:12113

External dimensions: 890L x 660W x 620H (mm) Weight:85 (kg)

Internal dimensions: 730L x 530W x 450H (mm)

FREE UK mainland delivery 7-8 weeks (excluding Highlands &Islands)
