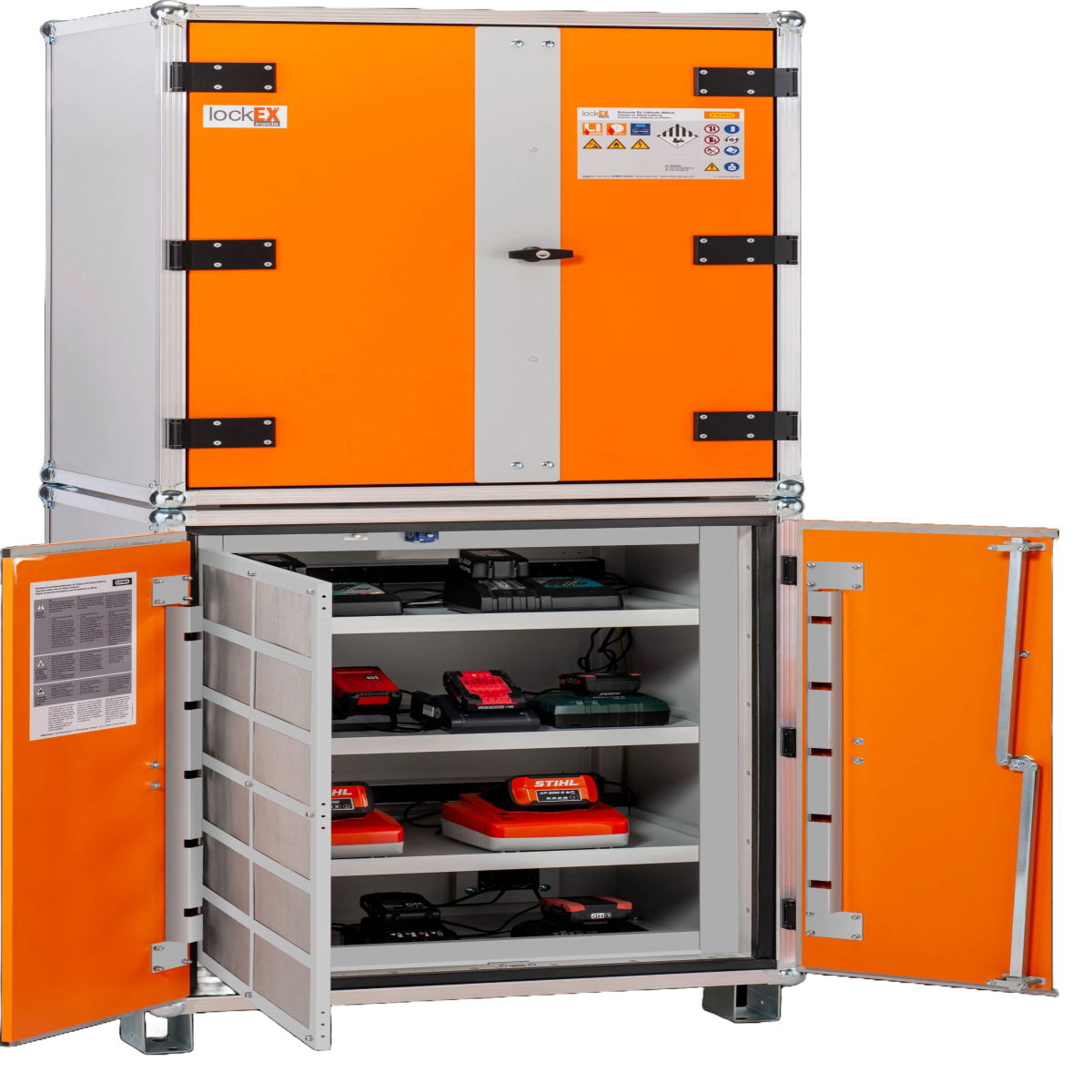

Battery Storage and Charging Cabinet lockEX 8/20

Storing and charging lithium batteries poses a fire safety challenge. Fire and explosion resistant safety cabinet lockEX 8/20 provides a safe solution, offering many safety features protecting personnel and property. Cabinets are available in both 1-phase and 3-phases variants. 4 options available

Battery Charging Cabinet - BASIC specifications

• Safe storage and charging of lithium-ion batteries up to 12 kWh
• VDMA Tested 24994:2024
• heat dissipation by fan during charging
• lockable double doors with a steel sheet spark guard for additional protection
• charging current is interrupted if the doors are opened
• charging stops if malfunction or thermal runaway
• supply and exhaust air vents sealed with heat-activated butterfly valves
• stacking feet

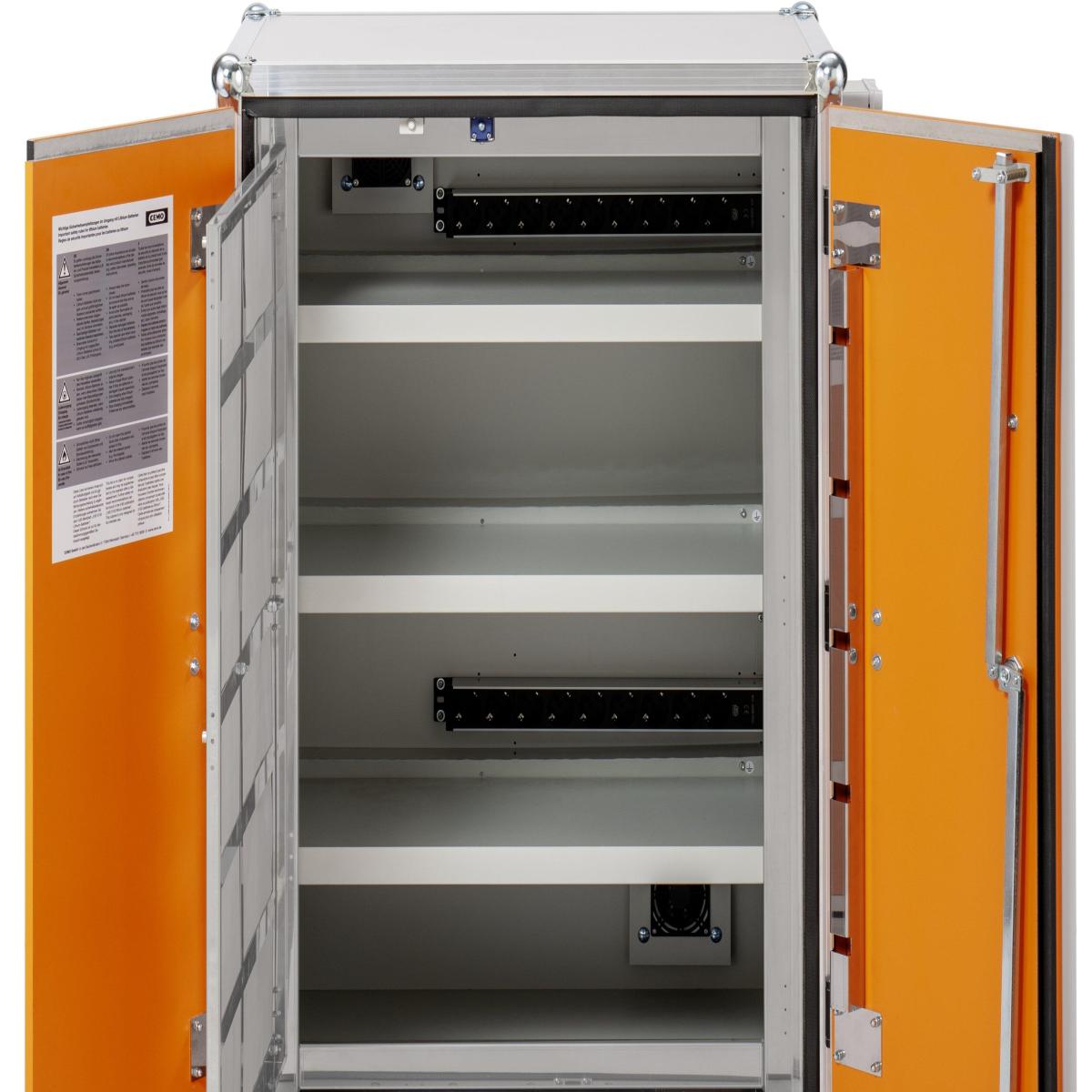

• charging versions with 4 horizontally arranged 8-way socket strips for power supply
• battery operated smoke detector
• 230 V version with 1-phase power supply (3500 W / 16A)
• 400 V version with 3-phase power supply (2 x 3500 W / 2 x 16 A)

1. Battery charging cabinet BASIC, 1-phase version. Order No:12048

External dimensions: 800L x 660W x 2130 (mm) Weight:267 (kg)

Internal dimensions: 730L x 530W x 1760 (mm)

2. Battery charging cabinet BASIC 3-phase version. Order No:12049

External dimensions: 810L x 660W x 2130 (mm) Weight:268 (kg)

Internal dimensions: 730L x 530W x 1760H (mm)

Note: 3-phase version is necessary if, for example, batteries are to be charged with fast chargers that have greater current requirement than 1-phase version can provide.

Battery Charging Cabinet - Premium specifications

• Safe storage and charging of lithium-ion batteries up to 12 kWh
• VDMA Tested 24994:2024
• heat dissipation by fan during charging
• lockable double doors with a steel sheet spark guard for additional protection
• charging current is interrupted if the doors are opened
• charging stops if malfunction or thermal runaway
• supply and exhaust air vents sealed with heat-activated butterfly valves
• stacking feet
• charging versions with 4 horizontally arranged 8-way socket strips for power supply
• 230 V version with 1-phase power supply (3500 W / 16A)
• 400 V version with 3-phase power supply (2 x 3500 W / 2 x 16 A)
• electronic smoke detector
• connection to central fire alarm system (BMA) – for seamless integration into existing security infrastructure

3. Battery charging cabinet PREMIUM, 1-phase version. Order No:12050

External dimensions: 890L x 660W x 2130 (mm) Weight:267 (kg)

Internal dimensions: 730L x 530W x 1760 (mm)

4. Battery charging cabinet PREMIUM, 3-phase version. Order No:12051

External dimensions: 890L x 660W x 2130 (mm) Weight:268 (kg)

Internal dimensions: 730L x 530W x 1760H (mm)

Note: 3-phase version is necessary if, for example, batteries are to be charged with fast chargers that have greater current requirement than 1-phase version can provide.

FREE UK mainland delivery 7-8 weeks (excluding Highlands &Islands)
